3 Installation

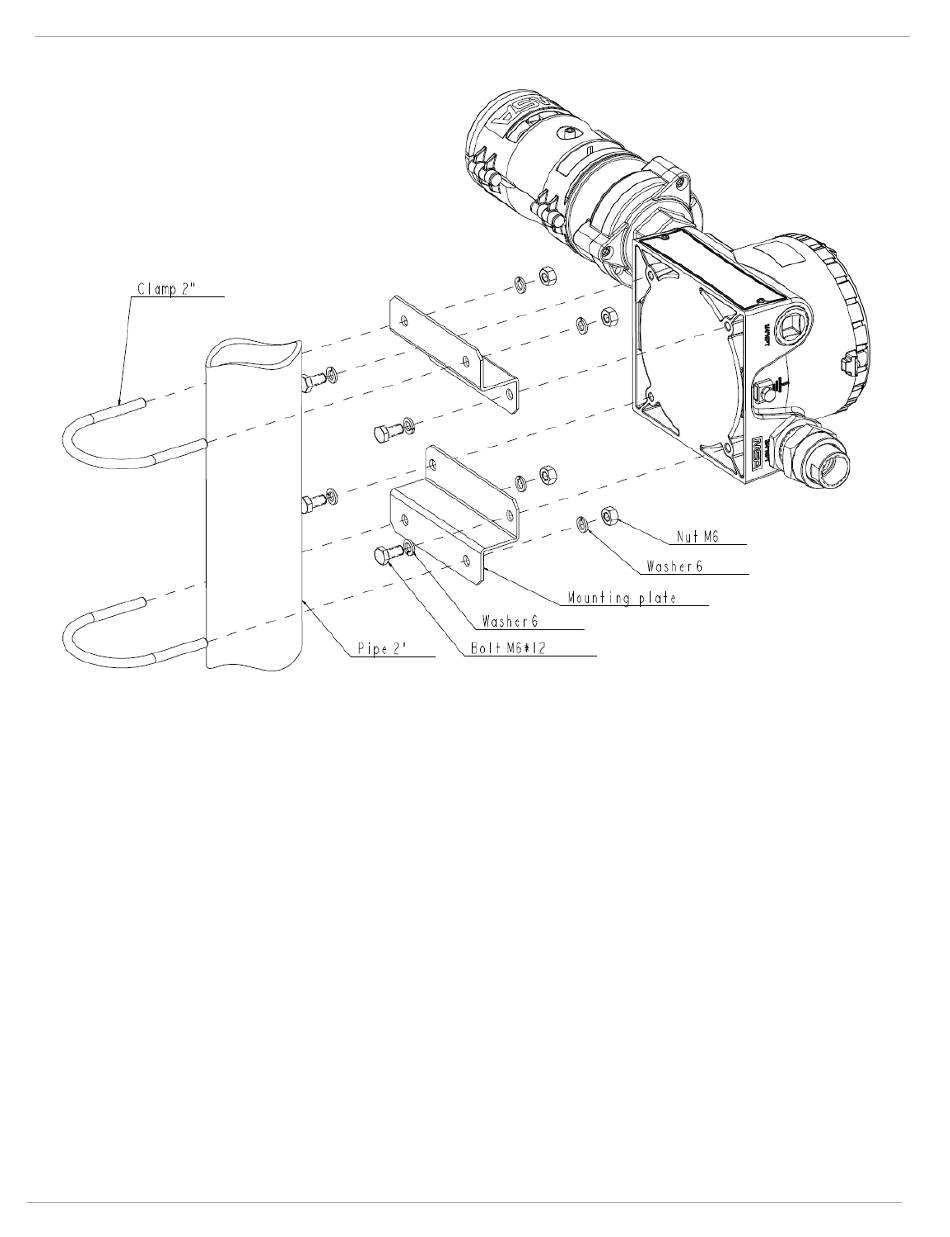

Figure 6 Exploded View of PrimaX IR+ Mounting
Optional Remote Junction Box Instructions
If installing the sensor on a junction box, verify that the junction box area classification is appropriate for the installation
environment. Two options are available for MSA junction boxes:
• Powder-coated Aluminum
• 316 Stainless Steel
A stainless steel mounting plate is included with the PrimaX IR+ housing to ensure sufficient clearance from the
installed surface (→ Figure 6
1. Install the mounting bracket and PrimaX IR+ using the bracket holes as the drilling template (→
12
).
Figure 7 ).
