- Page 1 Operating Manual Series 47K Gas Detector (SIL 2) Order No.: 10052472/16 MSAsafety.com...
- Page 2 The warranties made by MSA with respect to the product are voided if the product is not installed and used in accordance with the instructions in this manual. Please protect yourself and your employees by following the instructions.
-
Page 3: Table Of Contents
Contents Safety Regulations Correct Use Liability Information Application, Advice, and Restrictions Description General Principle of Operation Technical Specification Installation Installation-Step by Step Unpacking General Installation Instructions Recommended Torque and Terminal Sizes Electrical Connection to the Control Unit 3.5.1 Junction Box Terminals 3.5.2 Maximum Cable Length Electrical Connections Start up... - Page 4 Gas Detector (Sensor+Junction Box) Gas Detector, Calibrated with Certified MSA Gas Controllers Sensor Junction Box Accessories Dimensions Gas Detector (EX e Junction Box) Gas Detector (Ex d Junction Box) S47K Adapter Plate Junction Box Wall Mounted Bracket Sensor 47K-HT-PRP Junction Box ATEX 100 °C; Sensor 47K-HT-PRP Pipe Mounting Kit 9.6.1 Mounting Kit for Pipes with a Diameter of up to 50 mm...
-
Page 5: Safety Regulations
The MSA Gas Detector Series 47K is designed to continuously monitor the atmosphere for the presence of potentially explosive gas or vapour in air in the range 0 to 100% LEL. It is designed for use as an integral part of an MSA fixed gas detection system for the protection of industrial plant and workers. - Page 6 Failure to follow these warnings can result in serious personal injury or death. The only method of verifying the correct operation of the sensor is to carry out a span check using a known concentration of calibration gas in air. For response curves contact your national MSA office. Series 47K...
-
Page 7: Description

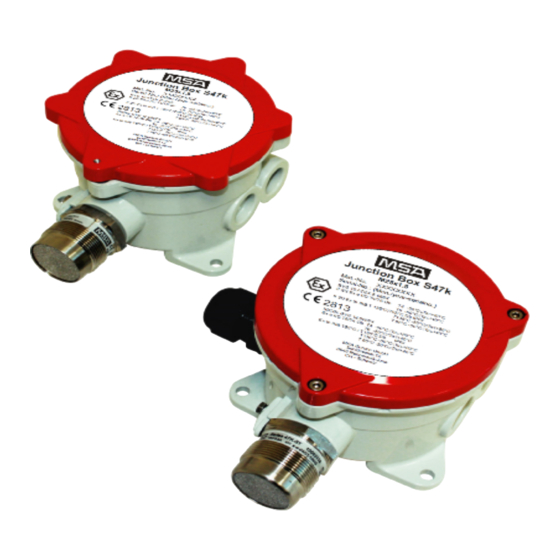

The MSA Gas Detector Series 47K is designed to continuously monitor the atmosphere for the presence of potentially explosive gas or vapour in air in the range 0 to 100% LEL. It is designed for use as an integral part of an MSA fixed gas detection system for the protection of industrial plant and workers. -
Page 8: Technical Specification
300mA for 47K-HT-PRP Vmax 10 V Operating life time 3 Years, in clean air, typically Storage life time 5 Years, in MSA container, typically Storage temperature range -20 °C to +40 °C** Operating temperature range PRP- sensor -25 °C to +55 °C Extended range *) -40 °C to +55 °C... - Page 9 2 Description *) Extended range: The sensor extended temperature range is greater than the maximum specified in EN 60079-29-1. It is therefore strongly recommended that if used above +55 °C or below -25 °C the sensor is calibrated at the operating temperature.
-
Page 10: Installation
• The specified environmental conditions must be adhered to. • Position the height of the MSA Gas detector Series 47K according to the density of gas or vapour to be measured. • The proper installation location must be chosen to ensure that the sintered disc of the MSA Gas detector Series 47K is kept dry and dust-free. -
Page 11: Recommended Torque And Terminal Sizes
The maximum cable length depends on the maximum permissible load, the cross section of the conductor and the conductor material. The maximum permissible load [loop resistance] is 36 ohms for the MSA Control units SUPREMA [for MSA Control unit 9010/9020 refer to the control unit manual]. -
Page 12: Electrical Connections
[Classified areas] • Refer to the MSA controller instruction manual for the sensor connection details. • Where an earth connection to the junction box/ sensor is required use the earth terminal provided on the outside of the junction box. -
Page 13: Start Up
Failure to follow this caution can result in minor or moderate injury. Allow a warm-up time of at least 30 minutes before calibrating the gas sensor. Perform an initial calibration following the instructions in Section 5.1 Calibration and the manual for the relevant MSA controller. Series 47K... -
Page 14: Maintenance And Service
5 Maintenance and Service Maintenance and Service There are no serviceable or adjustable parts within the sensor assembly and any attempt to dismantle the assembly or access it will invalidate the sensor approvals and manufacturers guarantee. Maintenance and service may only be performed by authorised and suitably qualified personnel. CAUTION! To guarantee the nonambiguity of the series 47K catalytic sensor operation ensure [e.g. -
Page 15: Calibration With Accessories
5 Maintenance and Service Gas flow rate : 1.0 l/min Stabilization time : depending on gas type between 2 and 4 min CAUTION! Use span gas with a concentration of approximately 50% of the measuring range. In no case should the span gas concentration be less than 25% of the full scale value of the measuring range. -
Page 16: Ht-Prp
5 Maintenance and Service new sensors and may vary after aging or poisoning.Unless otherwise stated, they refer to an ambient temperature of 20 °C. If using a reference gas to calibrate the gas detector the displayed values may vary by up to ±20% from the target gas concentration. - Page 17 5 Maintenance and Service Sample Gas 100% LEL in Propane relative Response time Response time vol% response factor [secs] t [secs] t Ethanol 0.97 < 14 < 31 1-Ethoxy-2 propanol 1.76 < 26 < 82 [30 °C] Ethyl acetate 1.19 < 16 <...
-
Page 18: Accessories
6 Accessories Accessories Calibration Cap The calibration cap is pushed on to the front of the sensor and is sealed by an “O” ring. The surface area S < 20 cm2. WARNING! The calibrating cap must be removed after completing the calibration! The gas is supplied via either of the gas inlets by means of suitable flexible tube. -
Page 19: Flow Through Adapter/ Pump Adapter
6 Accessories Flow Through Adapter/ Pump Adapter Figure 1 Flow Through Adapter The flow through adapter is for use with a pumped sampling system. Pipe connection : 1/8” NPT Gas flow rate : 1.0 l/min ±20% Using the Flow Through Adapter will extend the response time, depending on the gas flow rate and the length of the tubes. -
Page 20: Pipe Mounting Kit
6 Accessories Gas flow rate : 1.0 l/min ±20% [gas calibration] Air velocity : 0.5 ... 20 m/s Pipe Mounting Kit NOTE: The pipe mounting kit (P/N 10 113032) is not included in the EC-Type Examination Certificates DMT 01 ATEX G 001 X, BVS 03 ATEX G 010 X, DMT 03 ATEX G 003 X, BVS 16 ATEX G 001 X, FTZU 07 ATEX E 0066 X and INERIS 00 ATEX 0028 X 6.5.1... -
Page 21: Mounting Kit For Pipes With A Diameter From 50 Mm Up To 150 Mm
6 Accessories 6.5.2 Mounting Kit for Pipes with a Diameter from 50 mm up to 150 mm 1. Mounting plate 2. Pipe clamps Remote Calibration Adapter (CalGard) NOTE: Operating the remote calibration adaptor CalGard together with the gas detector model S 47K-PRP is included in the EC-Type Examination Certificates DMT 01 ATEX G 001 X, BVS 03 ATEX G 010 X, DMT 03 ATEX G 003 X, BVS 16 ATEX G001 X, FTZU 07 ATEX E 0066 X and INERIS 00 ATEX 0028 X. -
Page 22: Installation
6 Accessories Once calibration is complete, the air inlet reopens to allow the monitoring of ambient air for gas without the need for further user intervention. 6.6.1 Installation For correct operation, Sensor S47K and CalGard must be used in a vertical position (hose connection pointing downwards ±5°). - Page 23 6 Accessories Maximum wind speed: up to 6 m/s H2, CH4, C3H8 in air (approval of other gases by MSA on Applicable test gases: request) Recommended flow rate: 1.0 l / min Minimum flow rate: 0,8 l / min Maximum flow rate: 1.5 l / min...
-
Page 24: Markings, Certificates, And Approvals
7 Markings, Certificates, and Approvals Markings, Certificates, and Approvals According to the Directive 2014/34/EU [ATEX] 7.1.1 Series 47K PRP, Series 47K-HT-PRP Manufacturer MSA Europe GmbH Schlüsselstr. 12, CH - 8645 Rapperswil-Jona Product Remote Sensor SERIE 47 K EC-Type Examination Certificate:... -
Page 25: Junction Box Typ S47K And X Series Al Junction Box
Standards EN IEC 60079-0 :2018, EN 60079-1 :2014, EN 60079-7 :2007, EN 60079-31 :2014 Performance see MSA Controller together with sensor serie 47K Marking cable gland: NPT ¾” or M25 x 1,25 II 2G Ex db IIC T4/T6 Gb II 2G Ex e IIC T4/T6 Gb II 2D Ex tb IIIB T85 °C / T135 °C Db IP6X... -
Page 26: According To Iecex
7 Markings, Certificates, and Approvals According to IECEx Manufacturer MSA Europe GmbH Schlüsselstr. 12, CH - 8645 Rapperswil-Jona Product Junction Box Typ S47K and X Series AL Junction Box IECEx-Type Examination IECEx BVS 12.0057 X (DEKRA Testing and Certification GmbH) - Page 27 3. A defective sensor must be changed within 72 hours. 4. The safety related specifications for the MSA passive sensors Series 47K are only valid when used in combination with certified MSA Controllers.
-
Page 28: Ordering Information
M25 x 1.5 Ex e 10114109 Detector Series 47K-PRP Spring terminals ¾“ NPT Ex d 10114110 Gas Detector, Calibrated with Certified MSA Gas Controllers Description Thread Part-No. Detector Series 47K-PRP Screw terminals M25 x 1.5 10123076 Detector Series 47K-PRP Screw terminals M25 x 1.5... - Page 29 8 Ordering Information Description Material Part-No. S47K adapter plate St.St. 316 10105760 CalGard St.St. 316 10150921 Pipe mounting kit Aluminium 10113032 NOTE: The pipe mounting kit (P/N 10 113032) is not included in the EC-Type Examination Certificates DMT 01 ATEX G 001 X (ED 090),BVS 03 ATEX G 010 X (E 292), DMT 03 ATEX G 003 X (SUPREMA), BVS 16 ATEX G 001 X (9010/9020 SIL), FTZU 07 ATEX E 0066 X (GasGard XL), INERIS 00 ATEX 0028 X (9010/9020) Series 47K...
-
Page 30: Dimensions
9 Dimensions Dimensions Gas Detector (EX e Junction Box) Series 47K... -
Page 31: Gas Detector (Ex D Junction Box)
9 Dimensions Gas Detector (Ex d Junction Box) Series 47K... -
Page 32: S47K Adapter Plate Junction Box
9 Dimensions S47K Adapter Plate Junction Box Wall Mounted Bracket Sensor 47K-HT-PRP Series 47K... -
Page 33: Junction Box Atex 100 °C; Sensor 47K-Ht-Prp
9 Dimensions Junction Box ATEX 100 °C; Sensor 47K-HT-PRP Series 47K... -
Page 34: Pipe Mounting Kit
9 Dimensions Pipe Mounting Kit 9.6.1 Mounting Kit for Pipes with a Diameter of up to 50 mm 1. Pipe 2. Pipe clamp 3. Mounting plate * Depending on pipe diameter Series 47K... -
Page 35: Mounting Kit For Pipes With A Diameter From 50Mm To 150Mm
9 Dimensions 9.6.2 Mounting Kit for Pipes with a Diameter from 50mm to 150mm 1. Pipe 2. Pipe clamp 3. Mounting plate Remote Calibration Adapter Series 47K... -
Page 36: Wiring Diagrams
10 Wiring Diagrams Wiring Diagrams 10.1 MSA Control Unit SUPREMA WARNING! The fault signals required in EN 60079-29-1 for loss of continuity or short circuit of one or more wires to the remote sensor are not provided with a 3 wire connection. A 5 wire connection is therefore recommended. -
Page 37: Series 47K-Prp/ -Ht-Prp [5 Wire]
10.1.2 Series 47K-PRP/ -HT-PRP [5 wire] Information regarding the 5-wire wiring of the -HT-PRP can be found in chapter 10.4 10.2 MSA Control Unit 9010/ 9020 Series 10.2.1 Series 47K-PRP/ -HT-PRP [3-wire] Channel A [47K-HT-PRP see chapter 10.4 Series 47K... -
Page 38: 10.2.2 Series 47K-Prp/ -Ht-Prp [3-Wire] Channel B
10 Wiring Diagrams 10.2.2 Series 47K-PRP/ -HT-PRP [3-wire] Channel B [for 47K-HT-PRP see chapter 10.4 10.3 MSA Control Unit Gasgard XL 10.3.1 Series 47K-PRP [3-wire] Series 47K... -
Page 39: 10.3.2 Series 47K-Ht-Prp
10 Wiring Diagrams 10.3.2 Series 47K-HT-PRP 10.4 Wiring Diagram Sensor 47K-HT-PRP with Junction Box ATEX 100 °C Series 47K... - Page 40 10 Wiring Diagrams Series 47K...
