Remote Controller and Menu Sequence

4.1

Remote Controller (sold separately)

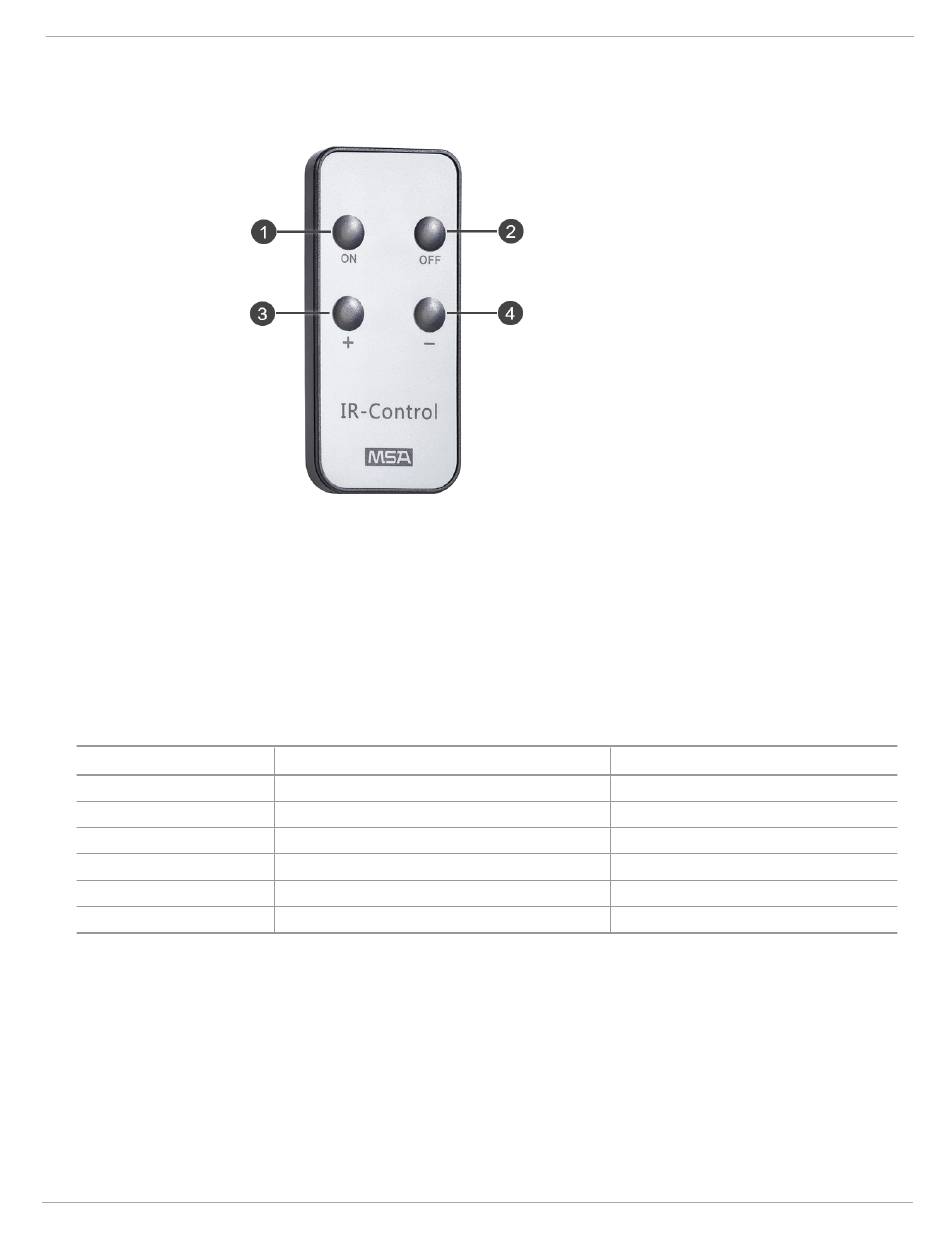

Figure 10 Remote Controller
1 ON: Enter one menu item/Save
3 +: Up roll menu item/Increase value
Buttons
The main function of the 4 buttons used for navigation of the menu sequence:
• + or - is used for navigation of the menu or increasing or decreasing data.
• ON is used to enter the submenu of menu items M-01, M-02, etc, or ready to modify data, or to save data.
• OFF is used to exit menu items M-01, M-02, etc, or to abandon modification of the data.
4.2

Menu Item

Menu Item
M-00
M-01
M-02
M-03
M-04
M-05
NOTE: In the description of the following menu function. "Measure mode" means concentration display mode.
(M-01) - Parameter Viewing
1. Switch to the measure mode.
2. Press button "+" to select M-01.
3. Press button "ON".
○ The displays shows the next submenu.
US
2 OFF: Exit/Abandon modification
4
-: Down roll menu item/Decrease value
Function
Reset Relay
Parameter Viewing
Parameter Setting
New Password Setup
Load default
LED test
4 Remote Controller and Menu Sequence
Password Need
Yes
No
Yes
Yes
Yes
No
