NOTICE
The device signal cables shall be permanently connected (fixed) and protected against external damage, e.g. by:
• cable conducting, or
• armouring, or
• using separate multi-core cables, or
• within an electrical enclosure, or
• individually shielded with earth connection.

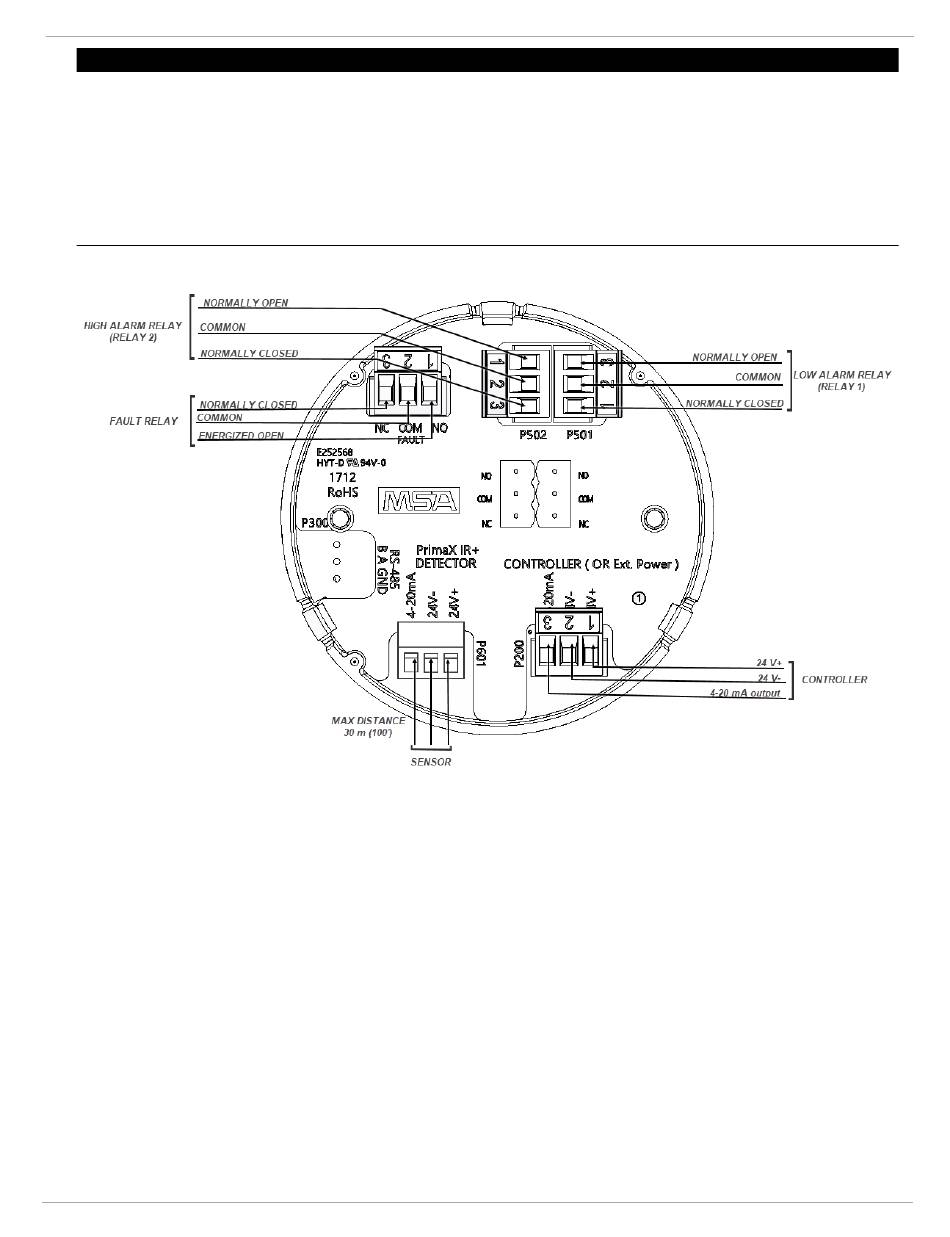

Figure 8 Wiring Diagram
