9-4. Set the IP Address of NCW-3DNIP

There are two methods for setting the IP address of NCW-3DNIP.
①Sets the subnet address "x" and host address "y" of (192.168.x.y) manually by the IP address setting switch
on the NCW-3DNIP's front panel.
②Allocates the IP address for NCW-3DNIP automatically by the BOOTP/DHCP server.

9-4-1. Manual setting method of the IP address by IP address setting switch

The manual setting method of the IP address by the IP address setting switch on the front panel of NCW-3DNIP is
described below.
The IP address is designated by "Subnet address [NET]" and "Host address [ADR]"
The Subnet address [NET] range is from 0 to F in the hex (0,...,15 in dec).
The Host address [ADR] range is from 0,...,FF in the hex (0,...,255 in dec). 0 and 255 are invalid values and are
not able to use for the Host address.
●Setting Method
(1) Sets the Host Address rotary switch to" FF (255)".
(2) Supplies power to NCW-3DNIP.
(3) Sets the address switch in the following ranges.
Subnet address: from 0,...,F(0,...,15)
Host address: from 1,...FE(1,...,254)
(4) Supplies power to NCW-3DNIP once again.
(5) NCW-3DNIP is accessible with IP address which was set.

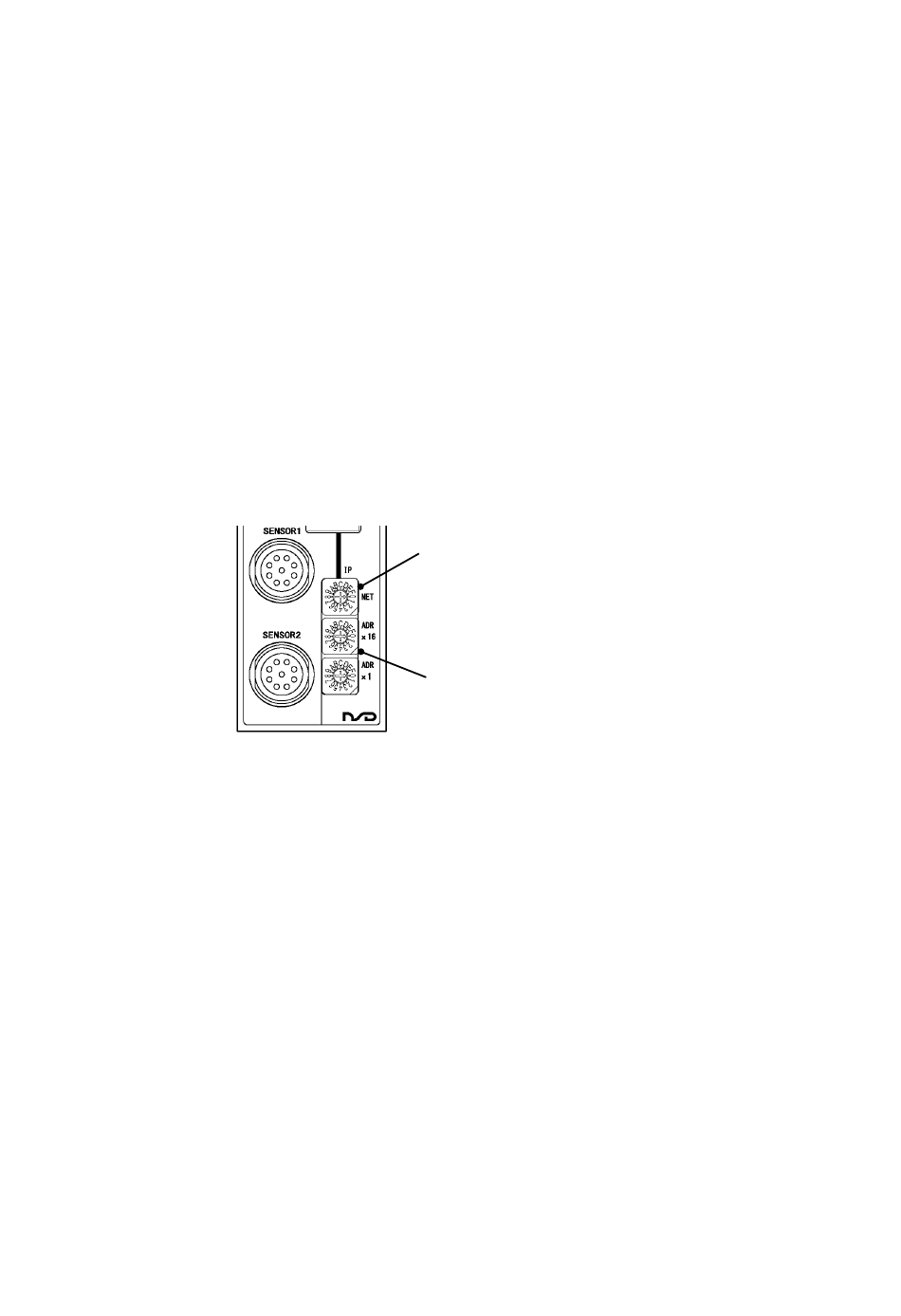

Subnet address (IP.NET)
Host address (IP.ADR ×16)
(IP.ADR ×1 )
