Appendix 3-1. Login Procedures - NSD ABSOCODER NCW-3DNIPLW Specifications & Instruction Manual

APPENDIX 3-1. Login Procedures

Login NCW-3DNIP for using the web server function.

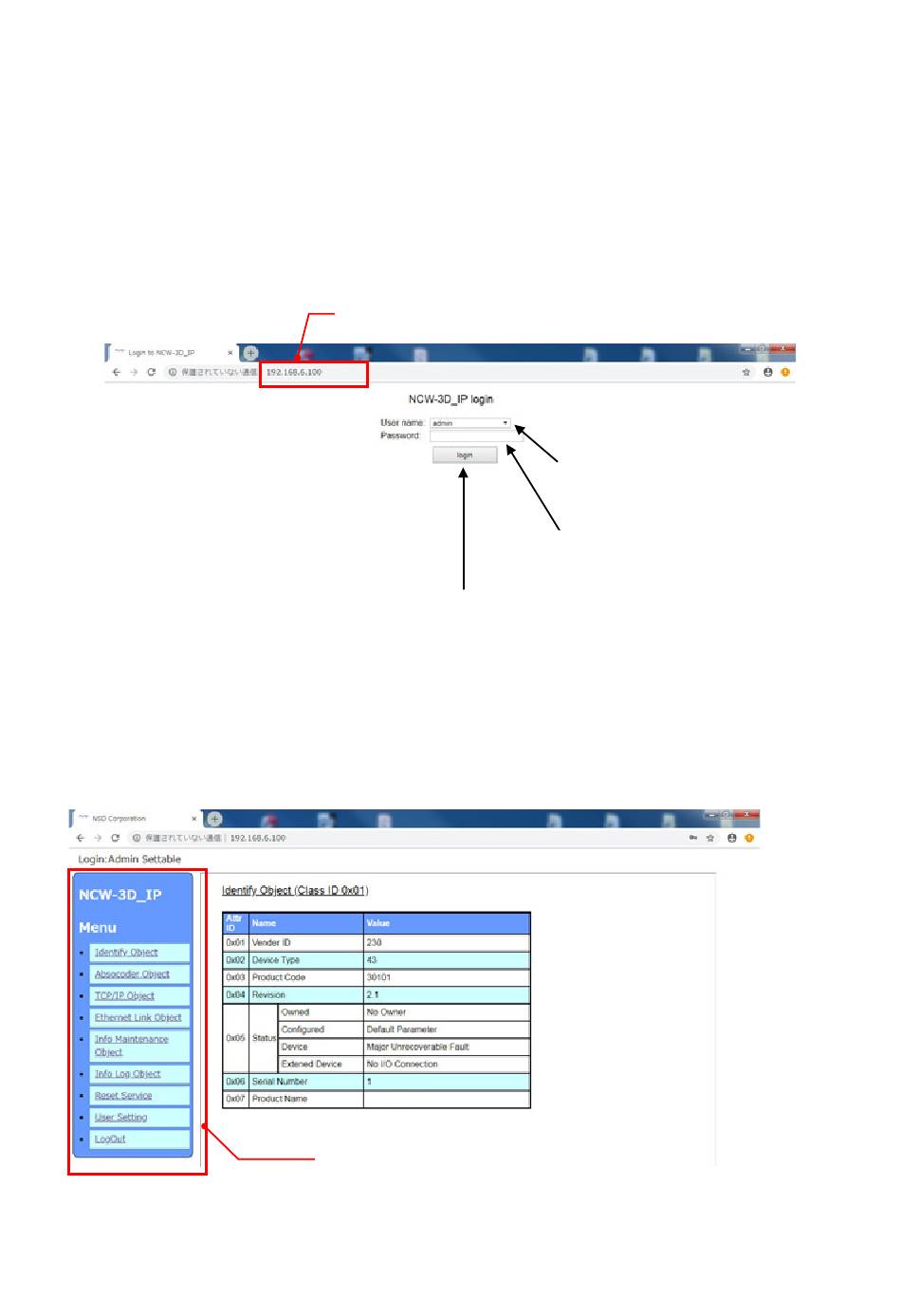

●Login procedures
1. Enter NCW-3DNIP's IP address to the address bar of the internet browser.
2. A login window appears.
3. Enter "admin" to the user name and password fields, click "Login" button.
(*: The password can be changed at "user setting window".)
4. NCW-3D_IP's menu "Identity Object" appears after the login.
Select a menu if you need.
*1: The converter model is changed depending on the sensor in-use.
VLS-[ ] PW: NCW-3DNIPLW
VLS-[ ] PY: NCW-3DNIPLY
NCW-3DNIP's IP address
●Login button
Click the button after selecting your user
name and entering your password.
NCW-3DNIPLW *1
Select a menu if you need.
127
●User name
Select your user name.
●Password
Input your password.
