6.4

Thermal cut-out

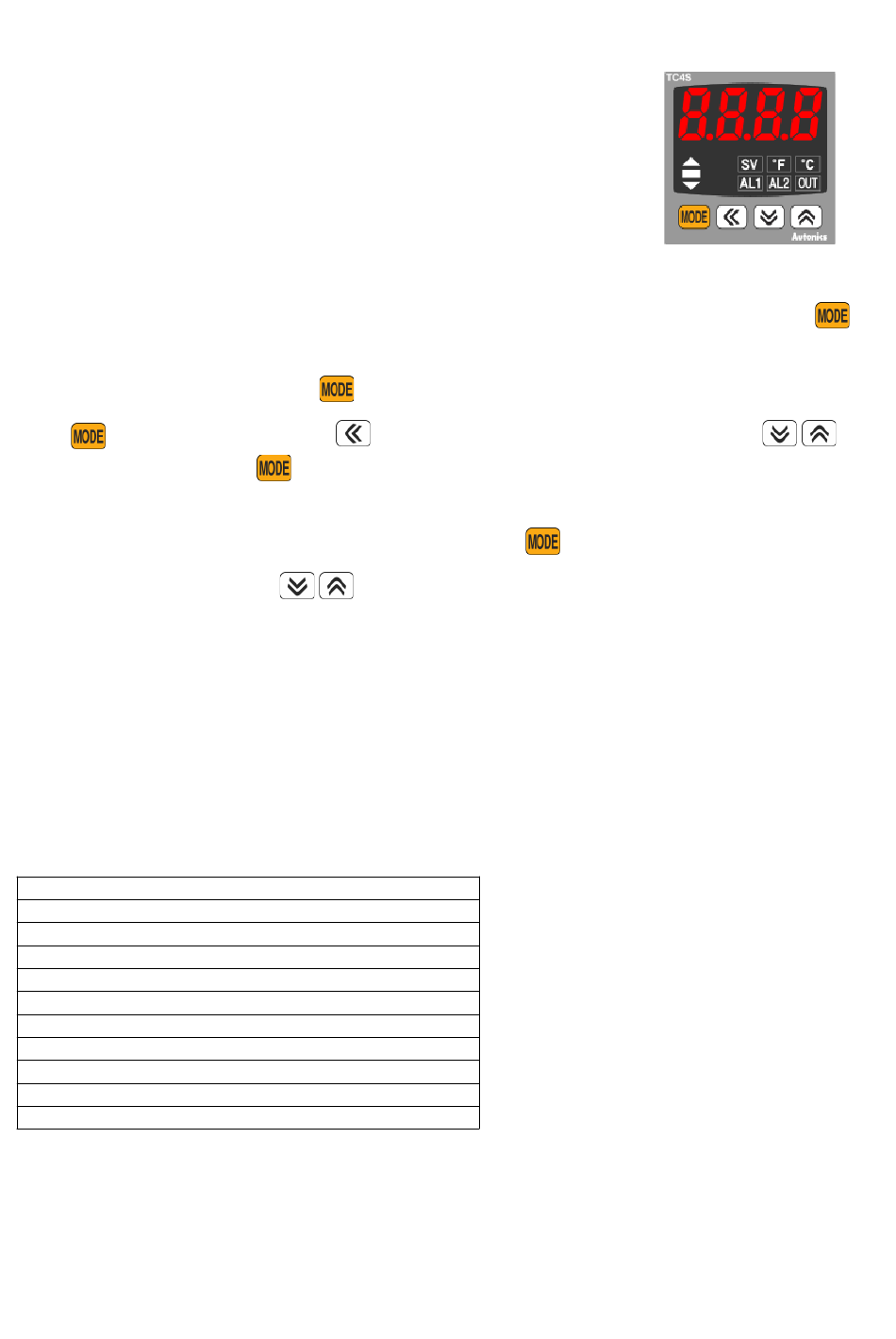

Thermal cut-out (hereinafter — unit) connected to a sensor located
in the heating elements area. Outupt of the limiter runs the
contactor that feeds the heaters. In case of high rise of the
temperature in the heaters area the module opens the contactor,
thus de-energizing the heaters.
While in operation, the display reads temperature on heating
elements and the unit is in operational mode.
There are two setting groups — Group 1 and Group 2. To enter Group 2, press and hold
for 4 seconds; release once display reads PAr2.
To enter Group 1, press and hold
Press to list parameters. Press
to change the value. Press
When nothing pressed during 30 seconds, the unit returns back to operational mode. To
return back to operational mode earlier, press and hold
To change set value (SV) use
It is a must to change parameters in the same order as they appear in the chart, except
parameter LoC. It must be set to oFF to unlock other parameters. Once all parameters are set
up, change the value of parameter LoC in accordance with the chart.
After changing parameters In-t (sensor type), UnIt (measurement units), parameters H-Su, L-
Su, AL1, AL2, AHYS are initialized and must be set again. The unit has more parameters than
listed in the chart. Skip a parameter if it is not in the chart. Parameters might be locked
(depending on current value of parameter LoC). Before setting up parameters, set parameter
LoC to 'oFF'.
Group Parameter Value Designation
Par2 In-t YCA
Par2 L-su 0300 SV low limit
Par2 H-su 0600 SV high limit
Par2 C-nd onoF Control type
Par2 oUt SSr
Par2 AL-1 An2.A AL1 operation mode
Par2 AHYS 50
Par1 AL1 50
SV SV 590
Par2 LoC LoC3 Lock setting (all locked)
for 2 seconds; release once display reads PAr1.
, to see current value of a parameter. Press
to move to the next parameter.
, while the unit is in the operational mode.
Sensor type
Control output type
Alarm output hysteresis
AL1 alarm temperature set value
Set value
few seconds.
