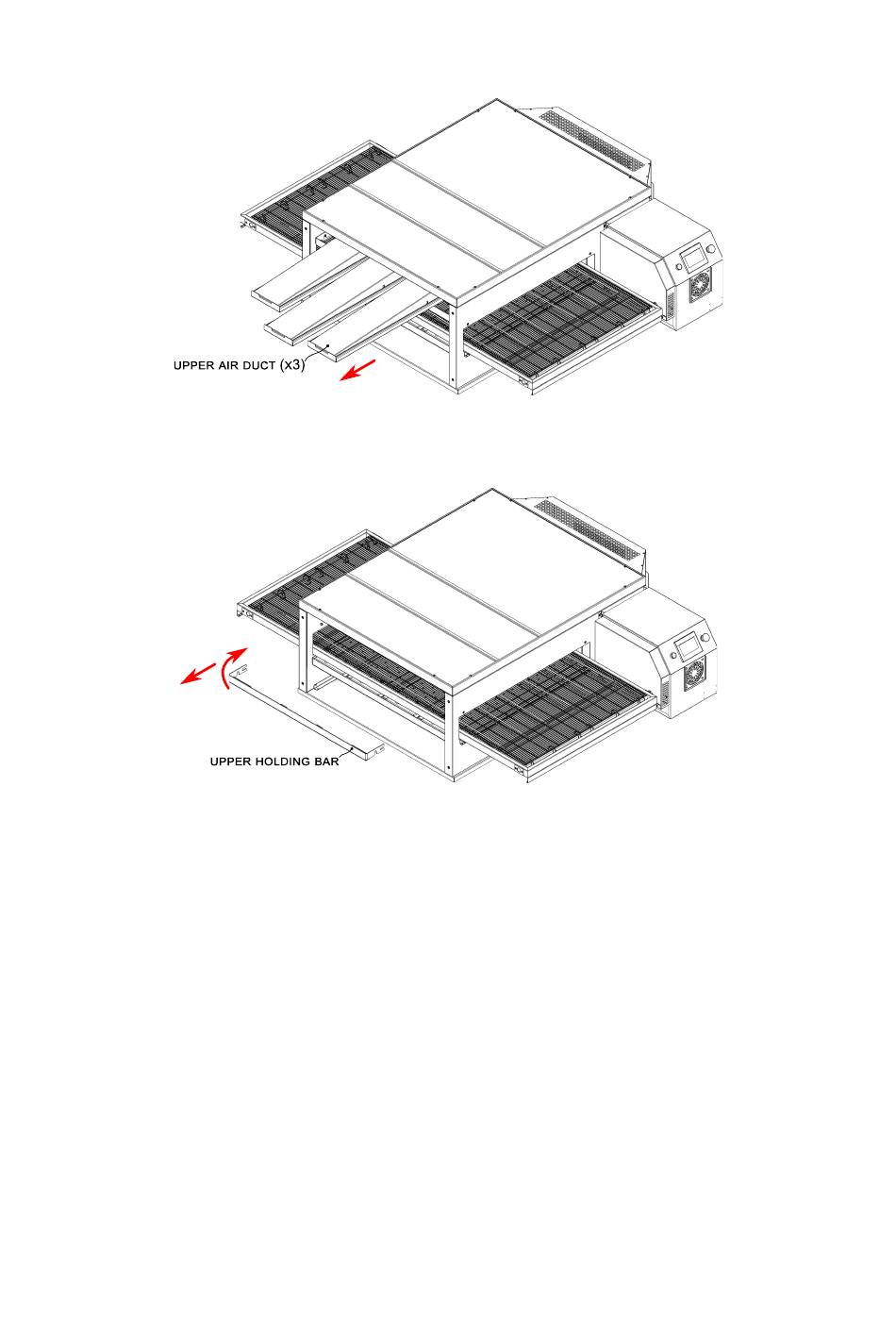

5. Remove three upper air ducts, see Fig. 10. To do this, take a duct by its end part, lift a
bit and pull it out from the machine.
6. Take upper holding bar, lift it up, and then pull it out, see Fig. 11.
7. Clean upper air ducts and the upper holding bar from dust and grease. In case of severe
contaminations, use suitable detergents in accordance with its instructions for use.
Figure 10
Figure 11
