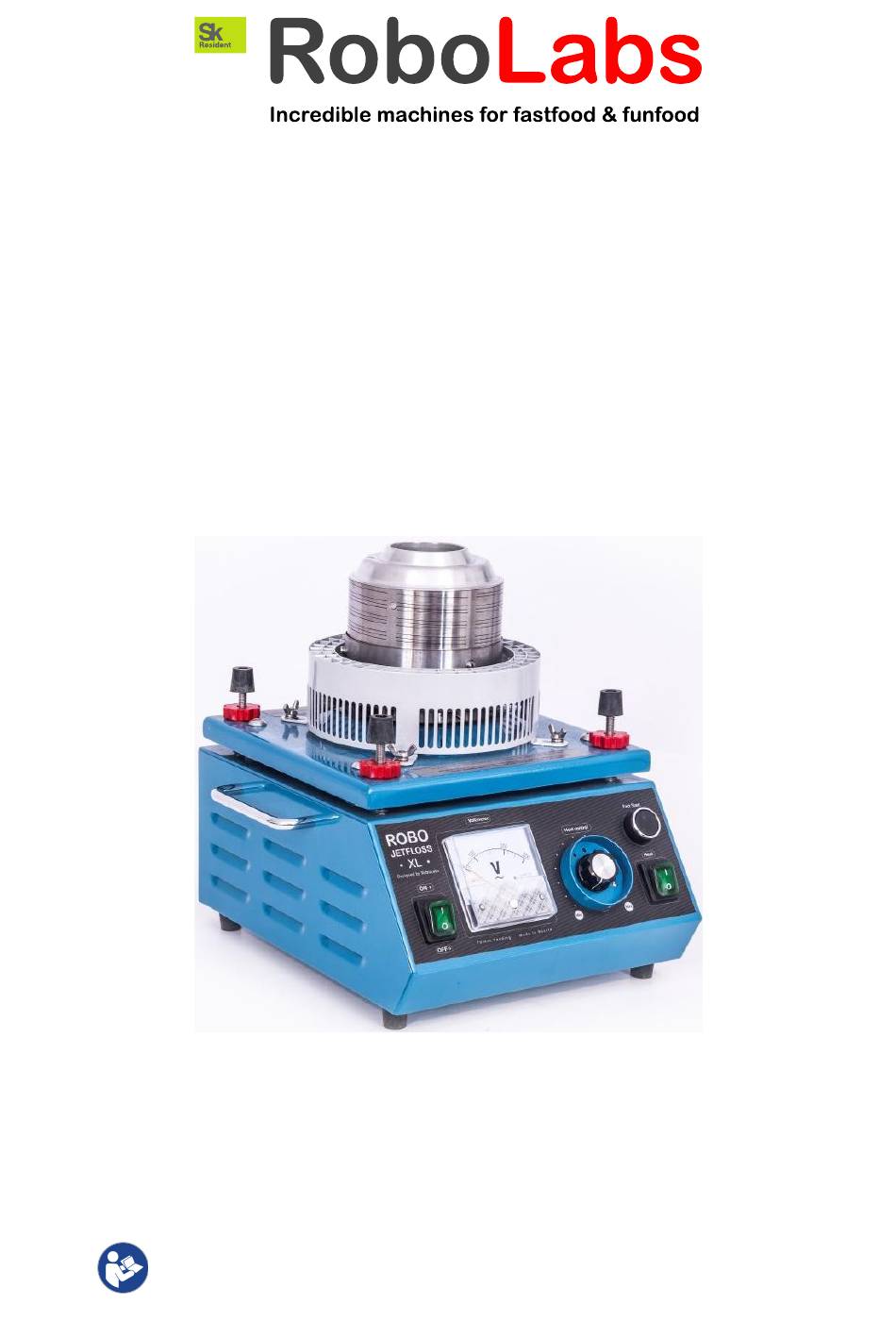

- Page 1 Cotton candy machine ACB-09 RoboJetFloss, ACB-09 RoboJetFloss XL Instruction manual Original instructions. Read this document before use and keep it for future reference. PDF version is available on www.robolabs.pro...
- Page 2 Contents 1 Safety requirements.......................... .3 2 General information...........................4 2.1 Designation..........................4 2.2 Technical specifications......................4 2.3 Delivery set..........................4 2.4 Packaging...........................4 2.5 Transportation and storage......................4 2.6 Design and principle of operation....................5 3 Assembling............................6 3.1 Ambient requirements........................6 3.2 Unpacking and installation......................6 3.3 Electric requirements........................
- Page 3 This document (hereinafter — the manual) contains essential information on installation, intended use, and technical maintenance of cotton candy machine ACB-09 RoboJetFloss and ACB-09 RoboJetFloss XL (hereinafter — the machine). The manual is intended for operators who work with the machine, and for technical personnel who conduct installation, commissioning, and technical service.
- Page 4 1 Safety requirements This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. • Not grounded machine can cause electric shock. Power outlet MUST HAVE proper grounding to avoid electric shock.
- Page 5 2 General information 2.1 Designation Cotton candy machine ACB-09 RoboJetFloss and ACB-09 RoboJetFloss XL (hereinafter — the machine) is intended for making cotton candy. 2.2 Technical specifications Model ACB-09 RoboJetFloss ACB-09 RoboJetFloss XL Rated voltage 230 V 230 V Rated frequency...
- Page 6 The airflow can lift the cotton candy several feet in the air. Sugar particles that are too heavy will collect in the floss pan. Only for ACB-09 RoboJetFloss XL model.
- Page 7 3 Assembling Not grounded machine can cause electric shock. Power outlet MUST HAVE proper grounding • to avoid electric shock. • Wall receptacle MUST be installed by a qualified electrician. If supply cord damaged, it MUST be replaced by manufacturer, service agent, or a skilled •...
- Page 8 Figure 2 3.3 Electric requirements The machine is supplied with power cord fitted with 2P+PE, 16 А, 250 В (CEE 7/4). Use wall receptacle 2P+PE 16 А, 250 В (CEE 7/3) for machine connection. Connecting to the mains must be arranged in conformity with all requirements applicable in the country of use at the moment of commissioning.
- Page 9 4. Press quick start button for short time; see if the voltmeter reads mains voltage, around 230 V. Release the quick start button. 5. Set the heat switch to ON position (I). 6. Turn the adjustment knob all the way clockwise. Make sure the voltmeter pointer moves smoothly and evenly as you turn the knob.
- Page 10 4 Intended use DO NOT use machine if supply cord, cable plug, or wall receptacle are damaged. • • DO NOT allow supply cord to be twisted, bent, pulled, contacted with sharp edges, or to be mechanically impacted in any other way. DO NOT let supply cord to be in contact with hot surfaces.
- Page 11 4.1 Recommendations on sugar and colorants Use ONLY 100% pure granulated sugar (beet or cane). DO NOT USE sugar powder, sugar with added starch, dextrose, corn syrup and so on. Doing so will lead to poor quality floss and/or quick clogging of the spinning head. To make colored and flavored cotton candy use flavoring mix (Floss Art, for example), or ready to use flossugar.
- Page 12 7. Cotton floss will fly out upwards in a vertical column or ‘sleeve’. This sleeve can be wrapped around a stick by rapidly turning or spinning the stick with your fingers in a counter-clockwise direction (see Fig. 3): Figure 3 8.
- Page 13 ACB-09 RoboJetFloss XL has the ‘Quick start button’. To make heat up time shorter, press and hold the ‘Quick start’ button for 10-15 seconds. This will send full power to the heating element and can be done even if the main power switch is off.
- Page 14 4.4 ‘No-snow’ cap In the production of cotton candy, ‘snow’ includes flakes, flecks, small filaments and sugar dust that are all too small to be collected in the normal winding process of producing a cotton candy serving. There are four situations when ‘snow’ will be emitted from the head: At the very beginning of operation.
- Page 15 This can be done using a wooden bamboo skewer or stick (never metal) while the head is spinning. Gently put the tip of a stick into the inner right-side edge of the cover and allow the rotation of the head against the stick to scrape off any sugar accumulation. This can be repeated on the outside of the sidewall as well, again only on the right-side of the spinning head.
- Page 16 4.6 Vertical machine tricks Only vertical flow machines allow you to perform entertaining tricks when making cotton candy. The most common technique is forcing the candy sleeve to follow you several feet away from the machine like a ‘snake’ or animated rope. The ‘snake’...
- Page 17 5 Cleaning ALWAYS unplug before cleaning. • • DO NOT use excessive water or water jet for machine cleaning. DO NOT spill water on electric panels or parts. Using excessive water during cleaning can cause short circuit and electric shock. • DO NOT immerse machine and/or supply cord into water. •...
- Page 18 5.2 Spinning head cleaning 1. Unplug the machine. 2. Remove all sugar from the head, turning upside-down if necessary. 3. Detach the cover (see Fig. 10) by removing three screws that fix the cover. If the cover is ‘glued’ to the sidewall, gently tap with the screwdriver handle in order to loosen the parts.
- Page 19 6 Technical service •ALWAYS unplug while servicing. •Technical maintenance and repair MUST be conducted by a qualified technician only. •A warning tag (DO NOT TURN ON! WORK IN PROGRESS!) must be placed at the switchboard during servicing. •Spinning head might be hot. ALWAYS wait until it cooled down before cleaning. •ALWAYS use safety goggles while servicing.
- Page 20 6.1 Technical maintenance 1. Ask the operators who work with the machine for any issues related to the machine and its operation. 2. Unplug the machine. Inspect supply cord, cable plug, and wall receptacle. Pay attention to mechanical damages, damaged insulation, and colour changes. Make photo as necessary.
- Page 21 12. Make a note about conducted maintenance in the corresponding section of the machine’s factory certificate. 6.2 Electric panel layout Electric components designations is shown on Fig. 12. For component designations see wiring diagram. Figure 12...
- Page 22 6.3 Troubleshooting Trouble Possible reason Remedy Spinning head doesn’t spin after Machine is not plugged to the Plug in the machine to mains. main switch turned on. mains. No power in the wall receptacle. Check the voltage in the receptacle. Power cord fault.
- Page 23 Trouble Possible reason Remedy VS power regulator fault. Check regulator operation. Replace fault component. RP variable resistor fault. Check resistor operation. Replace fault component. XA1, XA2 brush units fault. Check condition of brush units and carbon electrodes in them. Replace fault component. Slip rings worn out.
