RoboLabs Artist ACB-10-120 User Manual

Cotton candy machine

Advertisement

Quick Links

Cotton candy machine
Artist (ACB-10-120)
120 V 60 Hz
User manual
Read this manual before use and keep
for future reference!
PDF version of this manual is available on www.robolabs.pro

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Artist ACB-10-120 and is the answer not in the manual?

Questions and answers

Summary of Contents for RoboLabs Artist ACB-10-120

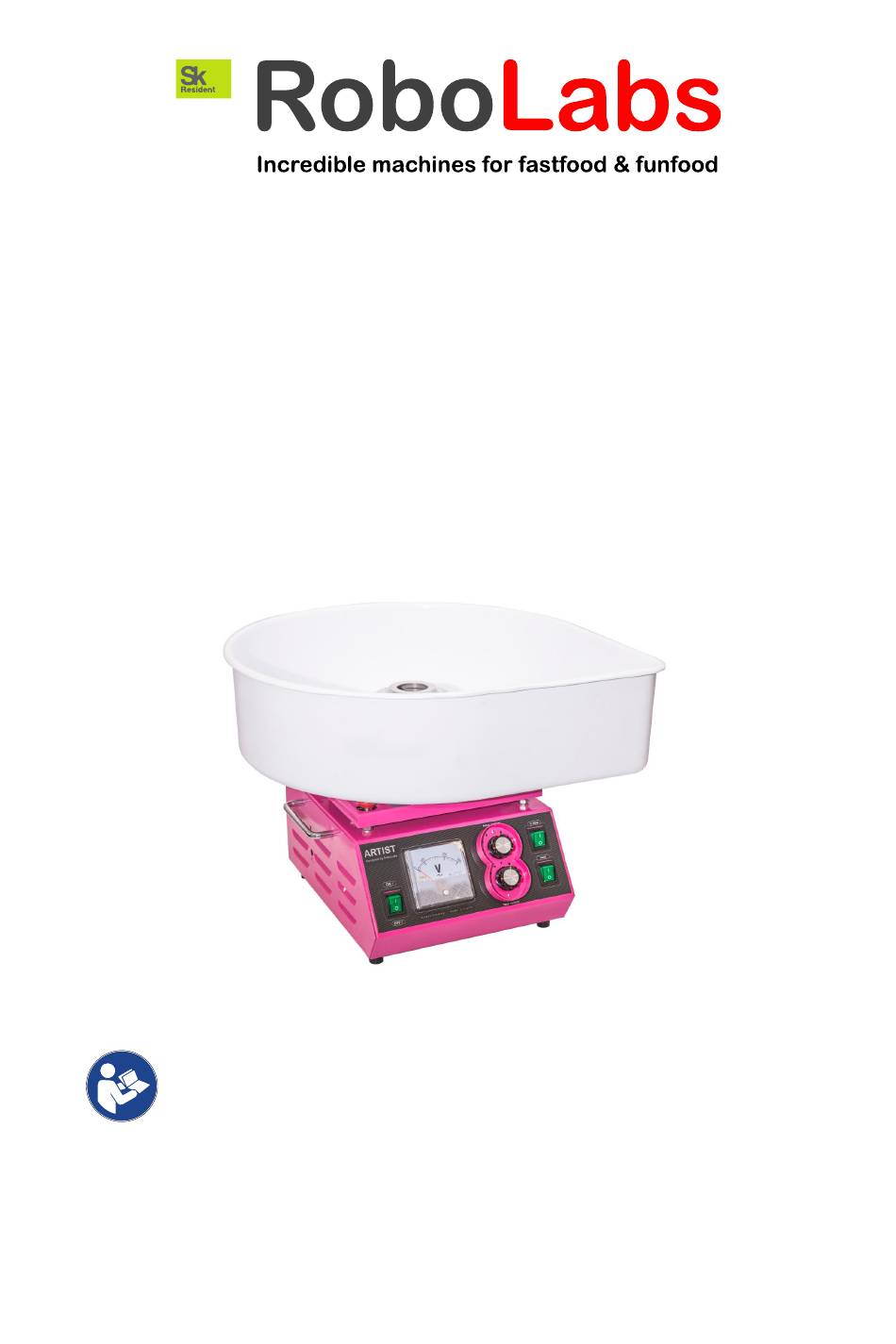

  • Page 1 Cotton candy machine Artist (ACB-10-120) 120 V 60 Hz User manual Read this manual before use and keep for future reference! PDF version of this manual is available on www.robolabs.pro...
  • Page 2 Safety requirements This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER • Not grounded equipment can cause electric shock. Power outlet MUST HAVE proper grounding to avoid electric shock.
  • Page 3 Safety requirements (continued) WARNING • Fast spinning head can crush your fingers. DO NOT TOUCH the spinning head until it completely stops. • Foreign objects in the spinning head may cause eye injury to operator and/or other people. DO NOT PUT inside anything except sugar.
  • Page 4: Table Of Contents

    Contents 1 Overview 1.1 Technical specifications ....1.2 Delivery set ......1.3 Getting started .
  • Page 5: Overview

    1 Overview Artist machine (hereinafter “machine” or “equipment”) is intended to produce cotton candy using pure sugar or sugar mixed with colorant. Due to its special features, the machine allows operator to make serv- ings of cotton candy shaped as a flower or other shapes (an animal, a bird, a cartoon character and so on).
  • Page 6: Electrical Requirements

    7. Place the floss pan on the machine making sure the indentations rest on the floss pan supports. 1.4 Electrical requirements DANGER • Power outlet MUST have proper grounding to avoid electric shock. • If supply cord damaged, it MUST be replaced by manufacturer, service agent, or qualified persons in order to avoid hazard.
  • Page 7: Design And Operating Principle

    2 Design and operating principle Figure 1: Main components of the machine The main parts of the machine represented on the Fig.1: 1 – Hous- ing; 2 – Transportation handle; 3 – Spring mounted support; 4 – Transport fastening nut; 5 – Floss pan support; 6 – Spinning head with heater;...
  • Page 8 An impeller attached to the Rotor (8) rotates along with the spin- ning head, producing a powerful upward airflow. The Stator (9) pre- vents operators and objects from coming into contact with the rapidly rotating impeller, and also rectifies the airflow. The airflow lifts the cotton candy upwards.
  • Page 9: Intended Use

    3 Intended use CAUTION • DO NOT TURN ON until transport fastening nuts are FULLY RAISED. Otherwise it may cause excessive vi- bration during whole machine operation, and lead to machine failure. • Vibration of the spring mounted chassis during spin- ning head acceleration and deceleration IS NOR- MAL.
  • Page 10 9. Cotton candy will fly out upwards in a vertical column or “sleeve.” This “sleeve” can be wrapped or wound around a stick by rapidly turning or spinning the stick with your fingers in a clockwise direction (see below). You will usually want to collect floss be- tween 8”...
  • Page 11: Voltage Control

    If you are shutting down for longer than one day, then you should perform a complete cleaning of the spinning head as described in the Technical Maintenance section below. Do not leave unused flossugar in the spinning head for more than a day or two as it can harden/caramelize and e ect the balance of the head during future sessions, which could ultimately result in failure of the machine.
  • Page 12: Standby Mode

    Figure 4: "Rope” cotton candy ingly to the position of the adjustment knob. This provides stable and smooth motor operation and minimizes inrush current impact. 3.4 Standby mode If there are no customers at the moment, it is convenient to keep the spinning head warmed up to be able to resume operation very quick.
  • Page 13: Snow" Cap

    3.5 “No-snow” cap In the production of cotton candy, “snow” includes flakes, flecks, small filaments and sugar dust that are all too small to be collected in the normal winding process of producing a cotton candy serving. There are four situations when “snow” will be emitted from the spin- ning head: 1.
  • Page 14: Important Tips

    However, you should not leave the “No-Snow” cap in place for long periods of time as it will eventually become filled with floss and this will then collect on the spinning head itself. To help prevent this, the inside of the “No-snow” cap should be wiped o in between each use to prevent accumulation of spent flos- sugar.
  • Page 15: Cleaning And Maintenance

    4 Cleaning and maintenance DANGER • Electric shock hazard! DO NOT use excessive water or water jet to clean the machine. DO NOT spill wa- ter or other liquids on electric parts of the machine, including housing. • ALWAYS unplug the machine before cleaning. •...
  • Page 16: Routine Cleaning

    4.1 Routine cleaning 1. Unplug the machine from the wall outlet. 2. Take the Floss pan and “No-snow” cap o from the machine; rinse with warm water. Wipe dry immediately. 3. Remove residues of sugar from outer surfaces of the machine with a clean soft damp cloth.
  • Page 17: Brush Unit Maintenance

    Figure 8 Figure 9 5. Detach rotor by removing three screws, see Fig.8. Rinse rotor with water and wipe dry immediately. 6. Detach lower part of the stator by removing four wing nuts, see Fig.9. Rinse this part with water and wipe dry immediately. 7.
  • Page 18: Conservation

    3. Inspect the slip rings (pos.2 Fig.10) for bumps and color changes. The rings should fit closely to insulators and should not show excessive wear. 4. Slip rings are made of high-grade brass and will last years if properly serviced. If the slip rings are excessively worn or are covered with bumps, they need to be replaced by qualified ser- vice sta .
  • Page 19: Troubleshooting

    5 Troubleshooting DANGER • Diagnostic procedures involving electric testing and internal components testing MUST be performed ONLY by a skilled technician! Machine doesn’t turn on (head doesn’t spin) • Ensure machine is plugged in. • Ensure motor switch is in MOTOR position. •...
  • Page 20 Excessive vibration during operation • FULLY RAISE all four transport fastening nuts. • Distribute sugar inside the spinning head evenly. • Ensure there are no foreign objects inside spinning head. Re- move if any. Floss comes out as flakes, smoke coming out from the head, floss coming out as a narrow “rope"...
  • Page 21: Quality Control Check

    6 Quality control check Cotton candy machine, ACB-10-120 Product name, model Serial no. The equipment is made with accordance to mandatory requirements of the state standards, actual technical documentation, and approved for use. QC Engineer STAMP HERE Signature Full name DD.MM.YYYY...
  • Page 22: Manufacturer Details

    12 months from the date of receiving the equipment by a dealer (in accordance with transport documentation); or, in case of purchase directly through Trapeza LLC or RoboLabs Ltd., from the date of purchase, given that terms of using, transportation, and stor- age are met.
  • Page 23: Technical Service

    8 Technical service DANGER • THIS SECTION IS FOR SKILLED TECHNICIANS ONLY! • DO NOT open housing of machine unless you are qualified for this. • ALWAYS unplug machine before servicing. WARNING • Spinning head might be very hot. Wait until spinning head is cooled down before servicing.
  • Page 24: Motor Speed Control Calibration

    8.2 Motor speed control calibration Depending on the actual voltage in the power supply, it might be re- quired to calibrate the motor speed control circuit. 1. Remove silicone sealant that fixes the rod of calibrating resistor marked “M", see Fig.11. 2.
  • Page 25: A Parts List

    A Parts list Pos. Item Part no. Rubber leg 21196 Cheese head screw M4x20 DIN 84 30817 Rocker switch (SA1-SA3) 17110 Voltmeter (PV) 22625 Adjustment knob 25334 Flush head screw M4x25 DIN 963 30551 Brush unit (XA1,XA2) 7248 Cap nut M5 DIN 1587 30548 Spinning head assembled 26129...
  • Page 26 Parts list (continued) Pos. Item Part no. Wing nut M6 DIN 315 16048 Rotor 21513 Button head screw M4x10 22017 Flush head screw M4x12 DIN 963 23583 Spinning head cover 25335 Stator 21695...
  • Page 27 Parts list (continued) Pos. Item Part no. Rocker switch (SA1-SA3) 17110 Voltmeter (PV) 22625 AC motor (M) 30476 AC inlet 17023 Inductive relay (K) 30475 Time relay (KT) 25283 Capacitor (C) 22627 Variable resistor (RP1-RP4) 22623 Power regulator (VS) 17724 Fixed resistor (R) 30492...
  • Page 28 Parts list (continued) Pos. Item Part no. Floss pan 25285 No-snow cap 25336 Measuring cup 25337 Power cord 24170...
