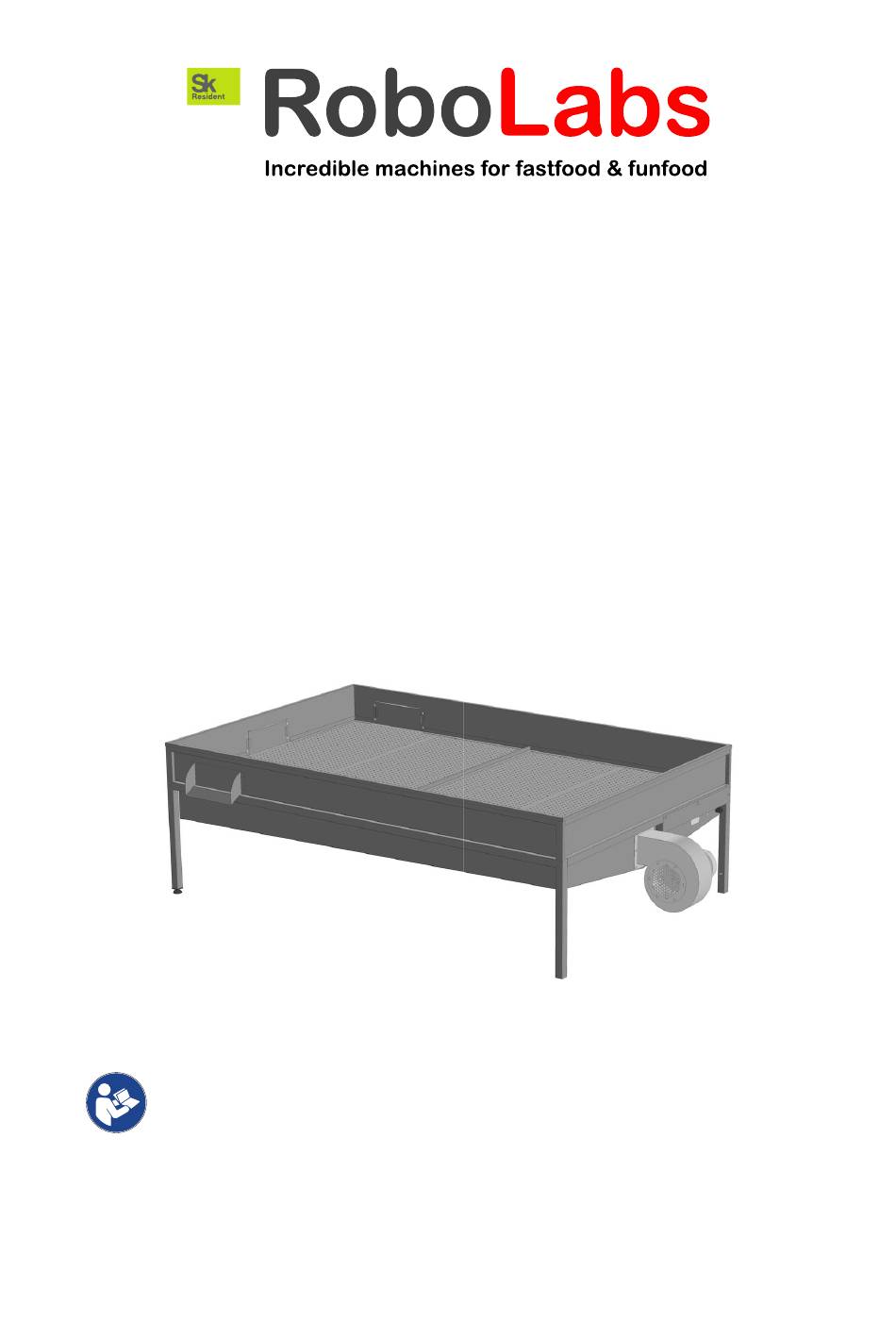

- Page 1 Cooling table CKPMX-03M2 230 V 50-60 Hz User manual Read this manual before use and keep for future reference! PDF version of this manual is available on www.robolabs.pro...
- Page 2 Safety requirements This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER • Not grounded equipment can cause electric shock. Power outlet MUST HAVE proper grounding to avoid electric shock.
-
Page 3: Table Of Contents
Contents 1 Overview 1.1 Technical specifications ....... . . 1.2 Delivery set ........1.3 Assembling . -
Page 4: Overview
1 Overview Cooling table CKPMX-03M is used for cooling caramel coated popcorn (hereinafter – “table” or “equipment”). This equipment is intended to be operated along with caramel coating machine SugarLips 100. Not for personal use. Professional use only. 1.1 Technical specifications Rated voltage 230 V 50-60 Hz Rated current... - Page 5 6. Attach the cable protective shroud (1) using M5 Flat washer (2), M5 Spring washer (3), and M5 Nut (4), see Fig.2: Figure 2: Cable shroud 7. Put perforated trays (1) and (3) on the supports (4), using handles (2), see Fig.3. Note three cutouts (shown by arrows) on one tray that must match popcorn chutes.
- Page 6 8. Attach the popcorn chutes (1), using M5 Button head screws (2), see Fig.4. 9. Insert three popcorn chute ba ers, see Fig.5 Figure 4: Popcorn chute Figure 5: Popcorn chute ba er 10. Insert crumb tray ba er, see Fig.6 Figure 6: Crumb tray ba er 11.
-
Page 7: Power Requirements
1.4 Power requirements DANGER • Power outlet MUST have proper grounding to avoid electric shock. • If supply cord damaged, it must be replaced by manufacturer, service agent, or skilled person in order to avoid hazard! • Connections must be done by skilled electrician ONLY! Equipotential bonding wire (up to 10 sq.mm) shall be con- •... -
Page 8: Intended Use
2 Intended use 2.1 Design and principle of operation Caramel coated popcorn is being constantly tossed by an operator on the perforated trays (1) and (2), see Fig.7. Blower (5) forces ambient air to flow from the room in housing of the table, and then through perforated trays, thus helping to cool down the product. -
Page 9: Maintenance And Cleaning
3 Maintenance and cleaning DANGER • ALWAYS UNPLUG equipment before cleaning or servicing. • DO NOT USE excessive water or water jet for cleaning. DO NOT SPILL water on electric panels or electric parts. • Keep power cord and plug o the floor and water. WARNING •... -
Page 10: Transportation And Storage
Ambient temperature during the transportation and storage must be between minus 25°C and +55°C. 5 Quality control check Cooling table, CKPMX-03M2 Product name, model Serial no. The equipment is made with accordance to mandatory requirements of the state standards, actual technical documentation, and approved for use. -
Page 11: Warranty Obligations
(in accordance with transport documentation); or, in case of purchase directly through Trapeza LLC or RoboLabs Ltd., from the date of pur- chase, given that terms of using, transportation, and storage are met. -
Page 12: A Wiring Diagram
A Wiring diagram H07RN-F 3G1.5 450V, 30uF H07RN-F 3G1.5... -
Page 13: B Parts List
B Parts list Pos. WD sign Item Part no. Blower assembled (w/ capacitor C) 30621 Perforated tray 30618 Perforated tray with cutouts 30619 Product chute ba er 30617 Adjustable leg 21397 Rocker switch 17110 Pos. WD sign Item Part no. Nut M6 DIN 934 30627 Spring washer M6 DIN 127... - Page 14 Parts list (continued) Pos. WD sign Item Part no. Cable protective shroud 30623 Flat washer M5 DIN 125 30626 Spring washer M5 DIN 127 30625 Nut M5 DIN 934 30624 Popcorn chute 30620 Button head screw M5x12 22018 Pos. WD sign Item Part no.
