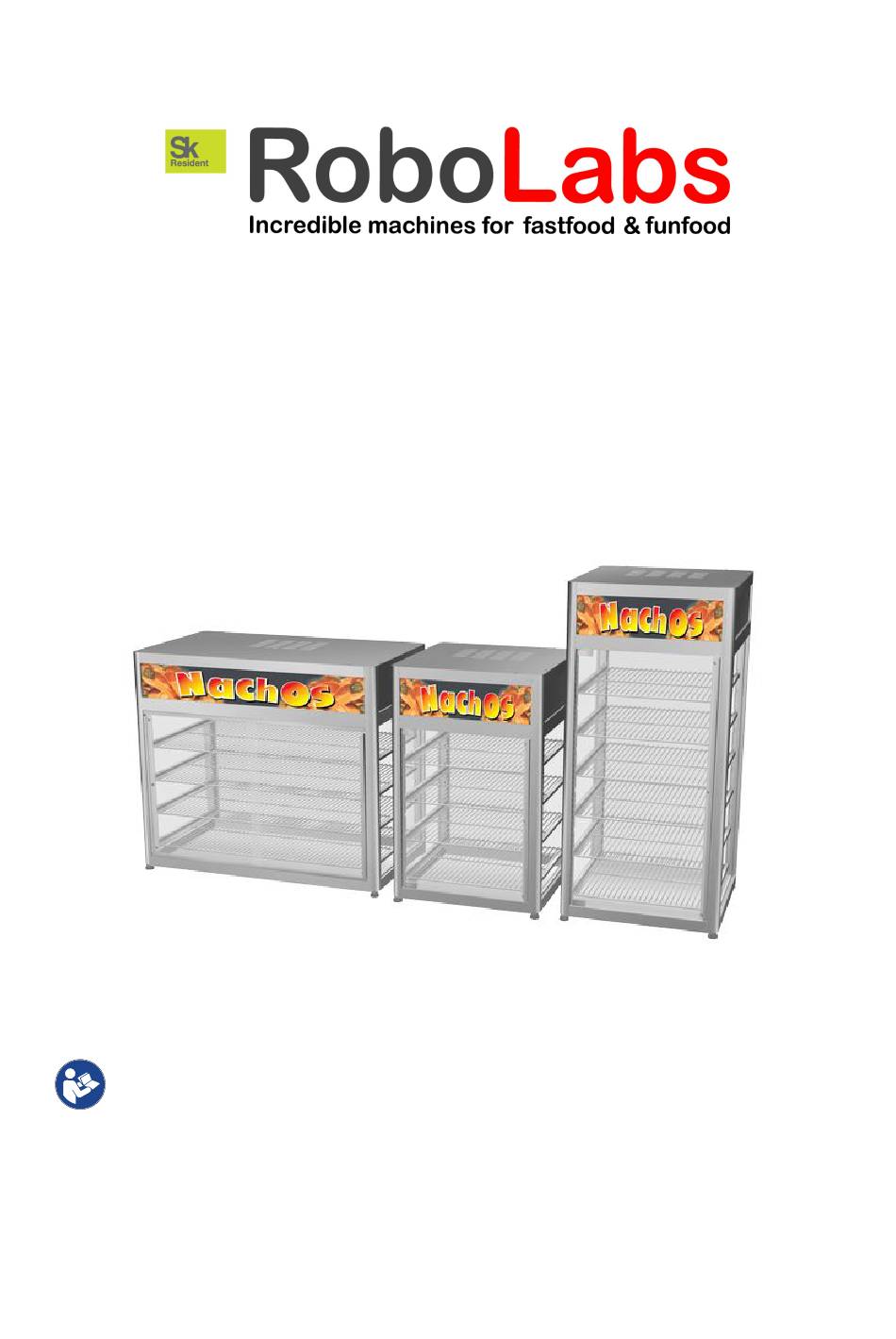

- Page 1 Nachos display warmers VTN-088, VTN-049, VTN-049H User manual Read this manual before use and keep for future reference! PDF version of this manual is available on www.robolabs.pro...
- Page 2 Safety requirements This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER • Not grounded equipment can cause electric shock. Power outlet MUST have proper grounding to avoid electric shock.
-
Page 3: Table Of Contents
Contents 1 Overview 1.1 Technical specifications ......1.2 Delivery set ........1.3 Assembling and installation . -
Page 4: Overview
fit up to 24 or 36 standard nacho trays with chips and cheese. It has in- ternal air convective heating, inner room illumination and light boxes with NACHOS inscription on two opposite sides. VTN-088 has sliding doors, VTN-049 and VTN- 049H have swing doors. Unit is made of powder coated steel. The unit is intended for professional use only. -
Page 5: Power Requirements
1.4 Power requirements DANGER • Power outlet MUST have proper grounding to avoid electric shock. • Presence of grounding must be checked on regular basis. • If supply cord damaged, it must be replaced by manufacturer, ser- vice agent, or qualified persons in order to avoid hazard! •... -
Page 6: Principle Of Operation And Intended Use
2 Principle of operation and intended use Design and principle of operation Each display warmer is a construction with transparent walls and additional compo- nents that provide proper air heating and circulation. Heating elements warm the air inside the unit. Fan blowers provide air circulation inside the unit, thus heat is distributed in even manner across whole volume of the display warmer. -
Page 7: Maintenance And Cleaning
3 Maintenance and cleaning DANGER • ALWAYS unplug machine before cleaning or servicing! • DO NOT use excessive water or water jet for cleaning. DO NOT spill or pour water on electric panels or parts. • Keep power cord and plug o the floor and water. WARNING •... -
Page 8: Transportation And Storage
4 Transportation and storage The equipment may be transported by any kind of covered vehicle, in accordance with transportation rules for this kind of vehicle. Ambient temperature during the transportation and storage must be between —25°C to +55°C (—13°F to +131°F). 5 Quality control check ——————————————–... -
Page 9: Warranty Obligations
Due to constant improvement of the equipment, technical specifications are subject to change without prior notice! 7 Manufacturer details NPO Tvertorgmash LLC 11 Industrialnaya Street, Tver, 170100 Russia Technical support: Email: support@robolabs.pro Phone: +7 495 956 4000 VTN nachos display warmers user manual... -
Page 10: A Dimension Drawings
A Dimension drawings All values in mm (+/- 2 mm tolerance). VTN-088 VTN-049 VTN nachos display warmers user manual... - Page 11 VTN-049H VTN nachos display warmers user manual...
