RoboLabs SugarLips 100 Manual

Caramel coating machine
Hide thumbs Also See for SugarLips 100:
Table of Contents

Advertisement

Quick Links

Download this manual
Caramel coating machine
SugarLips 100
(CP-100SR)
400 V 50 Hz
Technical manual
Read this manual before use and keep for future reference!
PDF version of this manual is available on www.robolabs.pro

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SugarLips 100 and is the answer not in the manual?

Questions and answers

Related Manuals for RoboLabs SugarLips 100

Summary of Contents for RoboLabs SugarLips 100

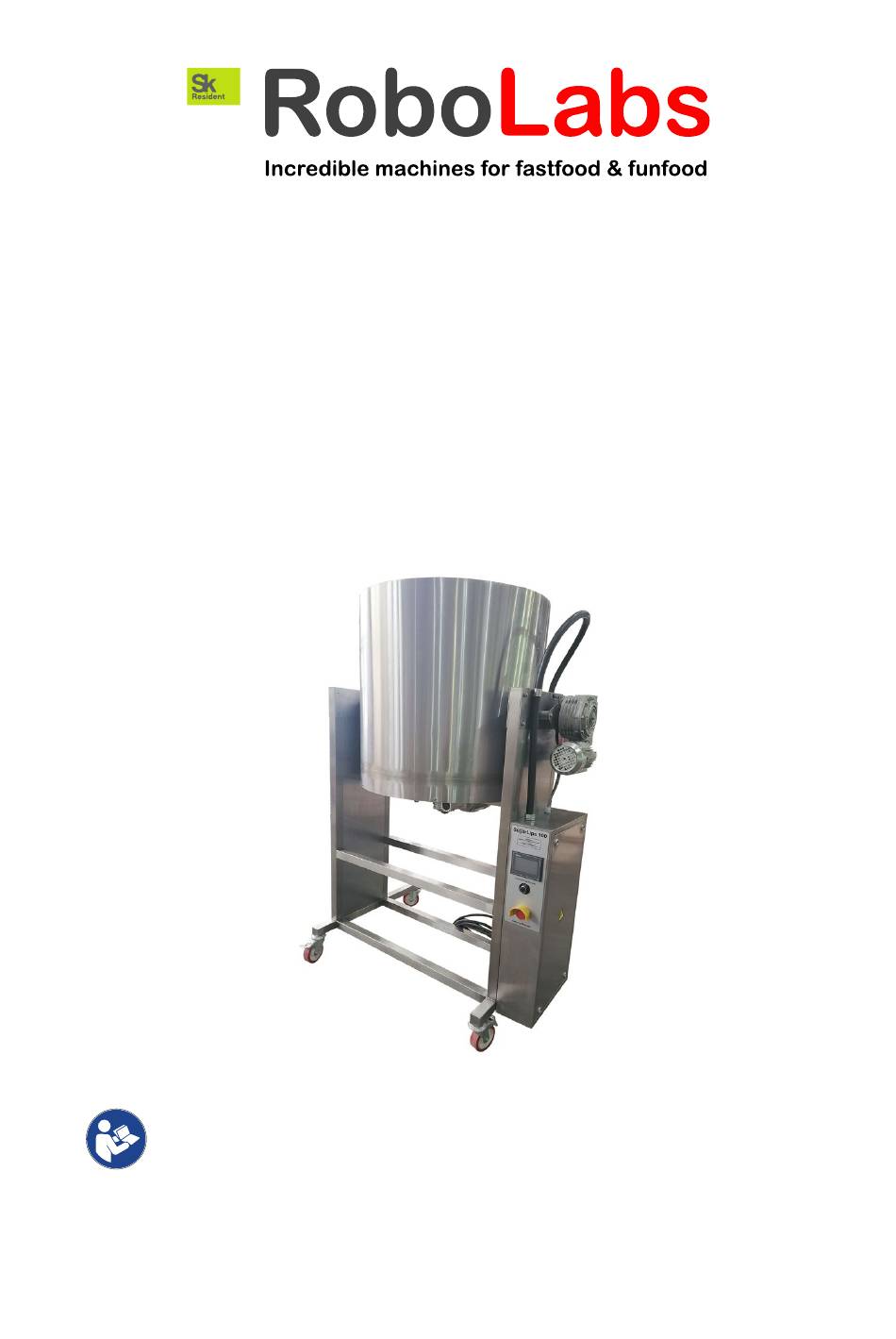

  • Page 1 Caramel coating machine SugarLips 100 (CP-100SR) 400 V 50 Hz Technical manual Read this manual before use and keep for future reference! PDF version of this manual is available on www.robolabs.pro...
  • Page 2 Safety requirements This is the safety alert symbol. It is used to alert you to potential physical injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. DANGER • THIS MANUAL IS FOR SKILLED TECHNICIANS ONLY! •...

  • Page 3: Table Of Contents

    Contents 1 Components setup 1.1 Temperature regulator setup ......1.2 Temperature limiter setup ....... . 1.3 VFDs setup .

  • Page 4: Components Setup

    1 Components setup 1.1 Temperature regulator setup Temperature regulator TCN4S (Fig.1) has three setting groups: 1st setting group, 2nd setting group, and SV setting group (the main indication mode). The settings must be changed in the same order as they appear in the list. Note that after changing In-t (temperature sensor type) or UnI-t (temperature unit) values, parameters H-Su , L-Su , AL1 , AL2 , AHYS must be set again.

  • Page 5: Temperature Limiter Setup

    1.2 Temperature limiter setup DANGER • Electric shock hazard! High voltage inside electric panel. DO NOT touch bare terminals and/or wires. TC4SP unit (Fig.2) has three setting groups: 1st setting group, 2nd setting group, and SV set- ting group (the main indication mode). The settings must be changed in the same order as they appear in the list.

  • Page 6: Vfds Setup

    1.3 VFDs setup DANGER • Electric shock hazard! High voltage inside electric panel. DO NOT touch bare terminals and/or wires. NOTE 1: VFD setup must be performed only when the drive is stopped. NOTE 2: After setting parameter 02.00 to 9, VFD displays End , and gets back to the main indication mode.

  • Page 7: Voltage Control Relay Setup

    1.4 Voltage control relay setup DANGER • Electric shock hazard! High voltage inside electric panel. DO NOT touch bare terminals and/or wires. Voltage control relay (Fig.4) is intended to protect the machine from improper connection and from voltage deviations in the service grid. The relay has following controls, see Fig.4: 1 –...

  • Page 8: Diagnostic Procedures

    2 Diagnostic procedures DANGER • Electric shock hazard! High voltage inside electric panel. DO NOT touch bare terminals and/or wires. • ALWAYS unplug the machine before resistance measurement, or open circuit check, or circuit continuity check. CAUTION • Some diagnostic procedures requires to turn the heating on. Pour enough water in the kettle so to cover the kettle bottom before perform- ing such procedures.

  • Page 9: Heating Push Button (Sb1)

    5. Ensure (3)/SA2 and (4)/SA2 are open. 6. Release SA2. 7. Ensure (1)/SA2 and (2)/SA2 are closed. 8. Ensure (3)/SA2 and (4)/SA2 are closed. 2.1.3 HEATING push button (SB1) 1. Cool down the machine and unplug. 2. Ensure continuity and terminal tightening for the wires: 5.16 5.5 5.4 5.3 5.2 5.1 5.0 .

  • Page 10: Raise Lamp (Hl4)

    2.1.10 RAISE lamp (HL4) 1. Cool down the machine and unplug. 2. Ensure continuity and terminal tightening for the wires: 6.9 5.2 5.1 5.0 . 2.2 Temperature regulator (DC3) 1. Cool down the machine and unplug. 2. Ensure continuity and terminal tightening for the wires: 1.11 1.10 1.9 1.8 2.7 2.6 2.5 2.9 5.9 5.8 5.7 5.6 5.5 5.4 5.3 5.2 5.1 5.0 .

  • Page 11: Mixer Drive (Uz1,M1)

    2.6 Mixer drive (UZ1,M1) DANGER • Capacitors in the output circuit of the VFD might maintain high voltage at output terminals U, V, W for up to 10 minutes after power cut o . 2.6.1 VFD unit (UZ1) 1. Cool down the machine and unplug. Wait 15 minutes. 2.

  • Page 12: Kettle Tilt Drive (Uz2,M2)

    2.7 Kettle tilt drive (UZ2,M2) DANGER • Capacitors in the output circuit of the VFD might maintain high voltage at output terminals U, V, W for up to 10 minutes after power cut o . 2.7.1 VFD unit (UZ2) 1. Cool down the machine and unplug. Wait 15 minutes. 2.

  • Page 13: Solid-State Relays (Vs1-Vs4)

    2.8 Solid-state relays (VS1-VS4) 1. Cool down the machine and unplug. 2. Ensure (L1)/VS1 and (T1)/VS1 are open. 3. Ensure (L1)/VS2 and (T1)/VS2 are open. 4. Ensure (L1)/VS3 and (T1)/VS3 are open. 5. Ensure continuity and terminal tightening for the wires: 1.16 1.17 2.12 2.13 6.12 6.13 6.14 6.15 5.24 5.25 5.26 5.27 .

  • Page 14: Slim Relay (K)

    2.11 Slim relay (K) 1. Cool down the machine and unplug. 2. Take out the relay’s central module by pressing latching lever. Ensure the module pins and the socket are clean and free of dust and scrap. Insert the module back. 3.

  • Page 15: Circuit Breaker (Qf)

    2.14 Circuit breaker (QF) 1. Cool down the machine and unplug. 2. Ensure continuity and terminal tightening for the wires: 1.0 2.0 3.0 . 3. Cock up the black lever of QF. 4. Ensure (1)/QF closes to (2)/QF, (3)/QF closes to (4)/QF, (5)/QF closes to (6)/QF. 5.

  • Page 16: Parts List

    3 Parts list Pos. WD sign Item Order no. Lock 25786 AC motor with gearbox (kettle tilt) 25629 Shaft fasteners set 26300 Shaft key 30705 Conduit assembled w/wires 26304 Kettle assembled 25844 AC motor with gearbox (mixer) 25628 Shielded cable 17728 Power cord 30819...
  • Page 17 Parts list (continued) Pos. WD sign Item Order no. Heat insulation 25965 Heating coils hook-up wires set 30818 EK1-EK6 Heating coil 25231 Kettle temperature sensor 23226 Heaters temperature sensor 24922 Kettle lid handle 22870 Kettle lid (semi-round) 21692 Deflector w/fasteners 23365 Mixer assembled 25070...
  • Page 18 Parts list (continued) Pos. WD sign Item Order no. Shaft fasteners set 26300 Kettle temperature sensor 23226 Mixer fixing nut (left-thread) 23386 Nut M48 26302 Washer 26303 Mixer shaft repair set 26305 Mixer shaft sealing 26299 Silicone liner 23380 Shaft key 26301...
  • Page 19 Parts list (continued) Pos. WD sign Item Order no. Switch 2NO 12978 Contact block 1NO 22451 Temperature regulator 25111 SB1-SB4 Push button 25121 Contact-block with LED 25113 Yellow protective cover 25473 Emergency stop switch 25138...
  • Page 20 Parts list (continued) 41 42 Pos. WD sign Item Order no. Shielded cable 17728 Temperature limiter 16848 Temperature limiter socket 22599 MF1,MF2 25143 VS1-VS4 Solid-state relay 26252 Slim relay 25147 25145 I/O extension unit 16324 Power supply unit 15355 Contactor 80 A 26249 Buzzer 22951...

This manual is also suitable for:

Cp-100sr

Table of Contents
