RoboLabs RC800MD Instruction Manual page 21

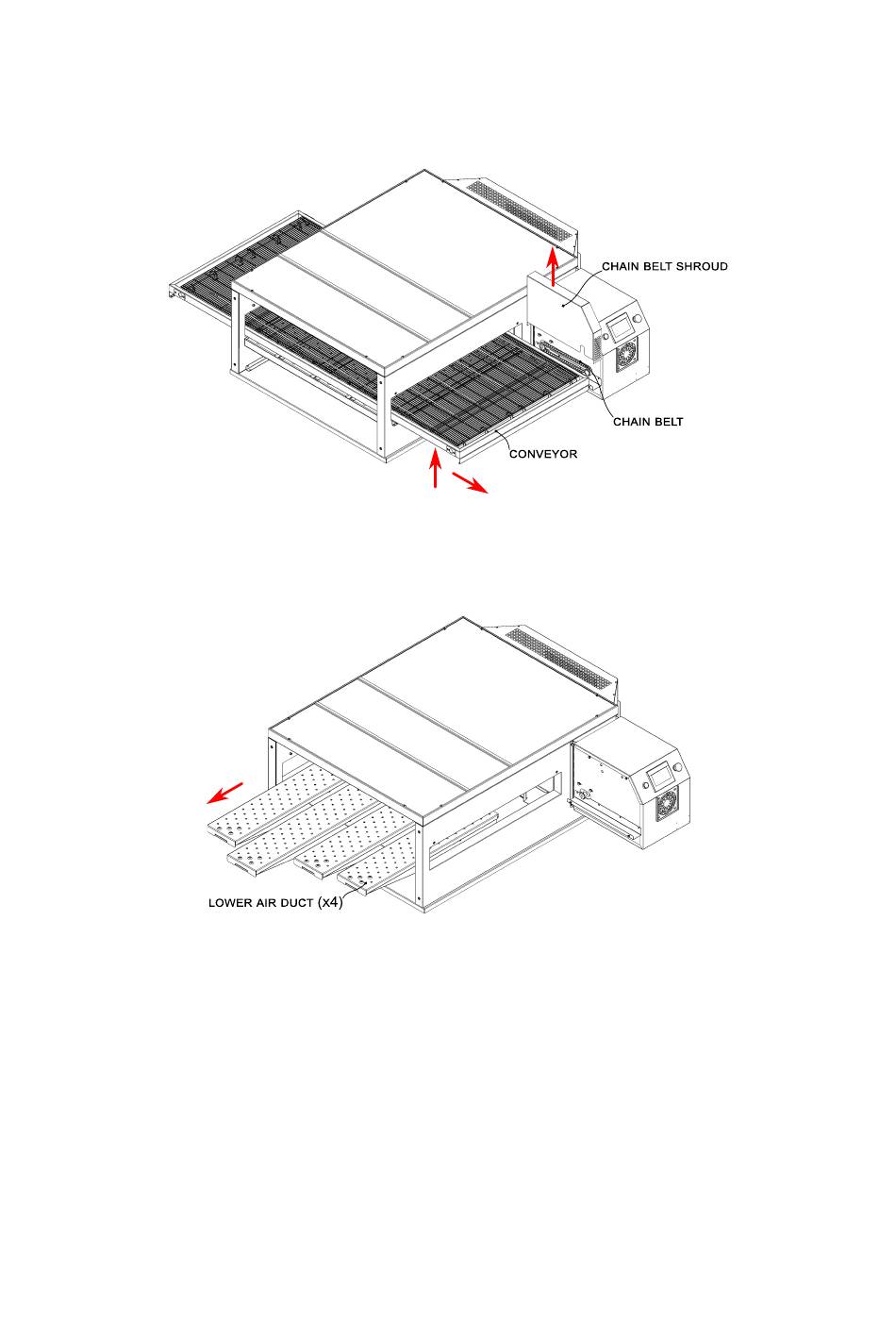

8. Remove chain belt shroud, see Fig. 12.
9. Stand in front of controls, take the conveyor, lift it a bit, push a bit inside so to loose the
chain belt; then remove the chain belt, and finally take the conveyor out. ATTENTION!
At least two person required to remove the conveyor.
10. Remove four lower air ducts, see Fig. 13. To do this, take a duct by its end part, lift a bit
and pull it out from the machine.
Figure 12
Figure 13
20
