9. Fix tray guide rails under conveyor, see Fig. 6. Fasteners are fixed to the conveyor.
10. Insert crumb trays into the gray guide rails, see Fig. 7.
11. Install air filter in its socket on electric panel.
12. If the machine is stacked on another machine, install heat screen. Lower machine in
the stack or machine installed alone does not need the heat screen installed.
13. Put cover 3 RL907021 on the top of the machine. ATTENTION! In case of stacked
machines, the cover must be installed only on the machine that is on top.
14. Hang exhausting duct
the machine must not exceed 2 cm.
15. Wipe all surfaces with a clean cloth dampened with a mild soap. Remove soap residues
with a cloth dampened with water. Let it dry.
16. Inspect the supply cord for any damages.
3 Shall be ordered separately.
4 Shall be ordered separately.

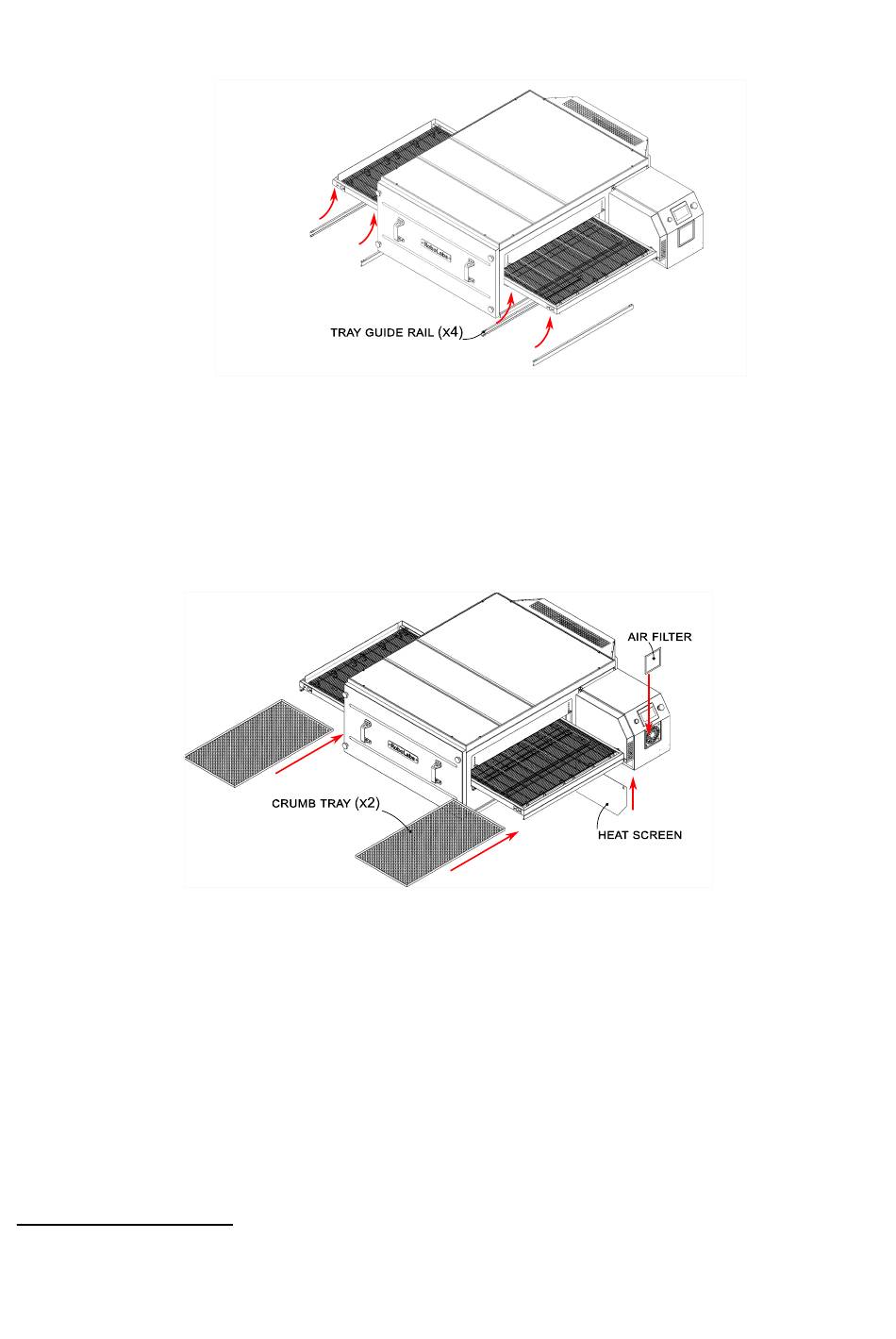

Figure 6
Figure 7
4 RL907023 above the machine. The gap between the hood and
