The module's internal supply voltages are generated from a single input supply of 12V DC. Most of these
voltages can be monitored and measured via I2C. Some of the voltages are available on the Andromeda
module connectors to supply circuits on the base board.
Six LEDs are connected to the MPSoC pins for status signaling.
2.2

Module Configuration and Product Models

Table 1 describes the available standard module configurations. The product model indicates the module
type and main features. Figure 2 describes the fields within the product model. Custom configurations
are available. Contact Enclustra for more information.
Product Model
AM-XZU90-17EG-1E-D12E
AM-XZU90-19EG-2I-D12E
AM-XZU90-19EG-2I-D13E
Table 1: Standard Module Configurations

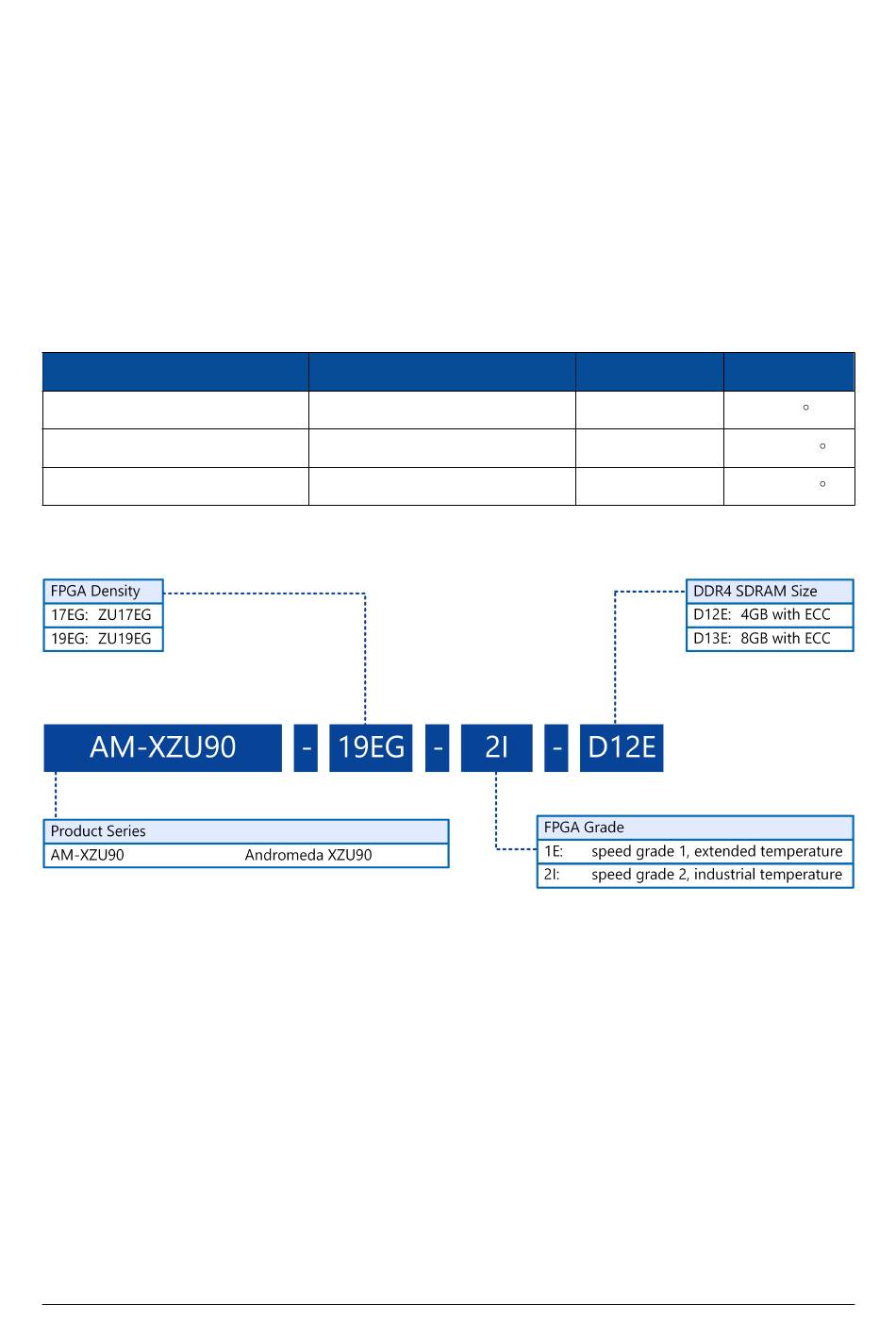

Figure 2: Product Model Fields
For the first revision modules or early access modules, the product model may not respect entirely this
naming convention. Contact Enclustra for more information.
2.3 EN-Numbers and Product Models
Every product is uniquely labeled, showing the EN-number and serial number. An example is presented
in Figure 3.
D-0000-458-001
MPSoC
XCZU17EG-1FFVD1760E
XCZU19EG-2FFVD1760I
XCZU19EG-2FFVD1760I
11 / 59
DDR4 with ECC Temperature
4 GB 0 to +85 C
4 GB -40 to +85 C
8 GB -40 to +85 C
