General Measure ChexGo CW-60K-V User Manual page 15

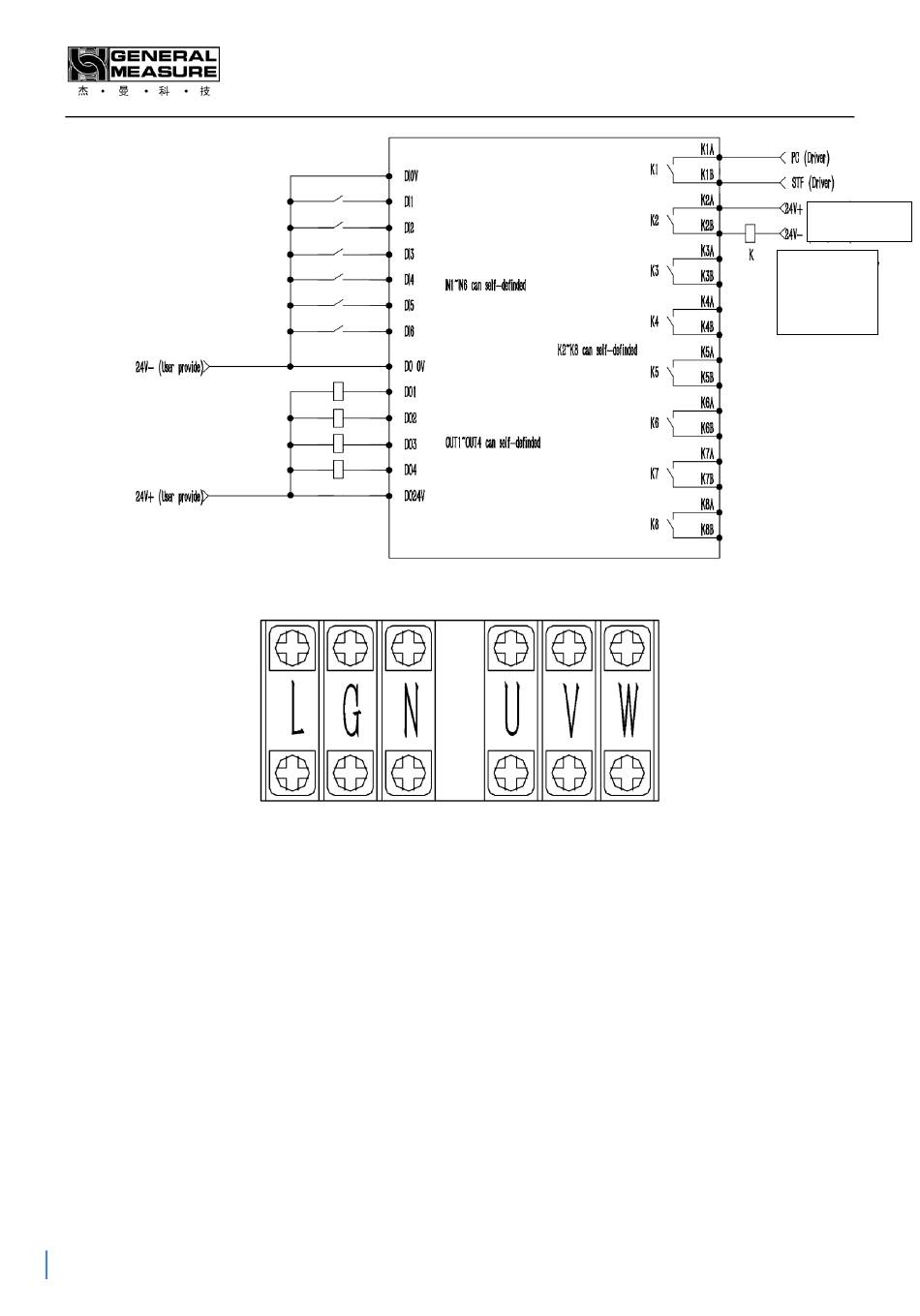

Figure 2-3 Schematic diagram of inlet and outlet connections
Figure 2-4 Power supply and motor interface diagram
Figure 2-4 shows the power supply and motor interface diagram, defined as follows:
External power supply (already connected at factory) :
L: external AC power live wire.
G: external AC power ground cable.
N: neutral wire of external AC power supply.
Frequency converter output power supply (factory has been connected) :
U: Corresponding to the U terminal connected to the motor.
V: corresponds to the V terminal connected to the motor.
W: corresponds to connect the motor W terminal.
Making Weighing More Accessible
-9-
让称重触手可及
Making Weighing More Accessible
If need connect
external relays,
please connect
in this way
User provide
