Summary of Contents for General Measure Tuxon-A

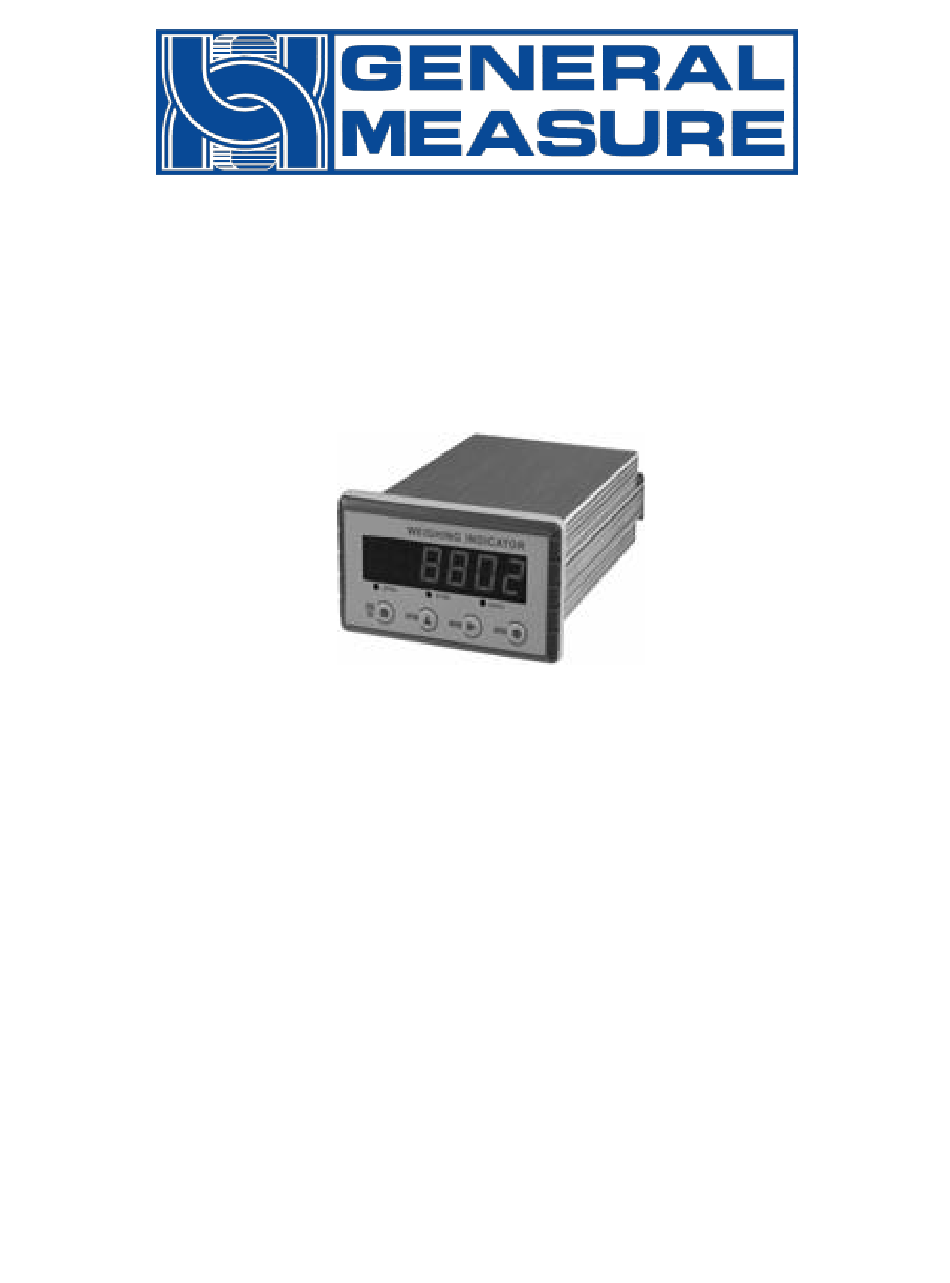

- Page 1 Tu x o n - A User’s Manual Ve r. 1 / 2 0 1 2 / 1 0...
- Page 2 SAFETY PRECAUTION WARNING 1. Use a lightning surge protector to avoid the risk or injury to operators and damage to instruments when lightning surge occurs frequently in the working environment. 2. Make sure the voltage of power supply is proper. 3.
-
Page 3: Table Of Contents
4.2.2 Option Selecting Method ................ 16 5 Operation ........................18 5.1 Manual Zeroing ....................18 5.2 Display D/A Output Value (Only for Tuxon-A) ..........18 5.3 Password Input ....................19 5.4 Password Setting ....................20 6 Display Test ....................... 21... -
Page 5: General Description
1 General Description 1.1 General Description Tuxon-A weighing transmitter is applied to transmit weight in industrial fields, which special features are small volume, plenty communicating commands, stable performance, easy operation and practicability, so it is widely used in concrete and bitumen mixing equipment, metallurgy furnace and converter, chemical industry and feed, etc. -
Page 6: Rear Panel
○ZERO: Light on when present weight is within 0±1/4d. ○STAB: Light on when changes of weight values are within the range of motion detecting during motion detecting time. ○DATA: Light on when indicator displays the value of D/A output. Main Display: 6 digits, for displaying weight, value of D/A output, and the information of parameters. -
Page 7: Technical Specifications
1.5 Technical Specifications... -
Page 8: Contents
1.6 Dimensions of Indicator... -
Page 9: Installation And Wiring
2 Installation and Wiring 2.1 How to Install Indicator... -
Page 10: Connection Of Power Supply
GND of other equipments. 2.3 Connection of Load Cell Please refer to the picture below to connect load cells to Tuxon-A. When you use 4- wired load cells, you must bridge the SN+ with EX+ and bridge the SN- with EX-. -
Page 11: 4-Wired Connection
2.3.2 4-wired Connection 1. The signals from the load cells are low voltage analog signals, which are easily affected by electro-noise, so the cables connecting load cells to indicator should use shielded cables, and not bind with other cables, especially power supply cables. 2. -
Page 12: Connection Of Communication Interface
3 Calibration 3.1 Instruction (1) Calibration procedure must be executed when a Tuxon-A indicator is put in use at the first time, the preset parameters may no longer meet the user’s needs, and any part of the weighing system was changed. Position of decimal point, minimum division, maximum capacity, zero, and gain can be set and confirmed through calibration. -
Page 13: Flow Chart Of Calibration
3.2 Flow Chart of Calibration 3.2.1 Flow Chart of Calibration for Tuxon-A... -
Page 15: Millivolt Value Display
3.3 Millivolt Value Display This function is mainly used for system test, position-error test for weighing mechanism and linearity test for load cell. 1. System Test (1) If display data changes with loaded weight changes, it shows that connection of load cell is correct and weighing mechanism works well. -
Page 16: Calibration With Weights
When it is not convenient to load a weight to calibrate, calibration can be done without weights using recorded data in the table in section 3.4. However, this method is just used for some emergencies, it will make calibration result incorrect if load cells, or indicator has been replaced. 3.5.1 Calibration without Weights for Tuxon-A... - Page 17 3.6 Explanation for Calibration Parameters Symbol Parameter Value of parameter Default Decimal Point 0/ 0.0/ 0.00/ 0.000 /0.0000 Min. Division 1/ 2/ 5 /10 /20 /50...
-
Page 18: Explanation For Calibration Parameters
≤Min. Division×30000 Max. Capacity 10000 Millivolt Value Zero Gain Switch for Calibration Via Serial Interface (only for Tuxon-S) Password Setting 3.7 Log Table for Calibration Parameters Parameter Calibrated Value Date Remarks Decimal Point Min. Division Max. Capacity Password... -
Page 19: Working Parameters Setting
4 Working Parameters Setting 4.1 Flow Chart of Working Parameters Setting 4.1.1 Setting Flow Chart for Tuxon-A... -
Page 20: Parameter Setting Method
4.2 Parameter Setting Method 4.2.1 Data Input Method 4.2.2 Option Selecting Method... - Page 21 Descriptions of Working Parameters C od e Parameter Default Description Null Null The first major term of working parameter. The analog output form : 4-20/0-20/ 4-20：4-20mA；0-20：0-20mA； 0-24/0-5/ 0-20：0-24mA；0-5：0-5V； F1.1 4-20 0-10：0-10V；-5-5：-5-5V； 0-10/-5-5/ -10-10：-10-10V; -10-10/ USEr USEr: user-defined analog output Switch for Auto-Zeroing when power-on, F1.2 OFF: disabled ON: enabled Zero-tracking Range（0～9d optional）.
-
Page 22: Operation
Explanation for error display during manual zeroing: “Error 2”: Current weight is not within the zeroing range. “Error 3”: Display (system) is not stable. 5.2 Display D/A Output Value (Only for Tuxon-A) Under normal status, press to make display content toggle between weight and D/A output value, the DATA indicator lamp will be on when display content is D/A output value. -
Page 23: Password Input
5.3 Password Input 1. The default passwords of calibration and working parameters setting are: 000000 2. As being protected by password, you must input the password before calibration. During password inputting procedure, indicator will display “0 = = = = =” after a wrong password is input once, and will display “0 ”... -
Page 24: Password Setting
5.4 Password Setting *Note: If passwords input second time does not match the first time, indicator will display “Error” for one second and return to “PASS” interface. -
Page 25: Display Test
6 Display Test Under normal status, display test is shown in flow chart below. If the test result is the same as flow chart, it means that display and indicator lamps all work well. -
Page 26: Error And Alarm Messages
7 Error and Alarm Messages ERROR : Incorrect data input. ERROR2: Current weight is not within the zeroing range when zeroing. ERROR3: Display (system) is not stable when zeroing ERROR4: Password input is wrong for 3 times. -OFL/ OFL: Weighing result overflows OVER: The output signal of load cell is too large while doing zero calibration.
