Introduction and General Information
e Screen — The screen is a 25-line electroluminescent LCD that is
compatible with the IBM PC color graphics adapter in text and
graphics mode.
Right View
The disk drives are illustrated in Figure 1-2.
e Disk drives — The computer has one or two floppy disk drives
installed. The front of the drive may differ slightly from that illustrated
in the figure.
e@ Disk access indicators — The indicator light acknowledges when
the disk drive has been selected.
DISK ACCESS
INDICATORS
DRIVE A
DRIVE B

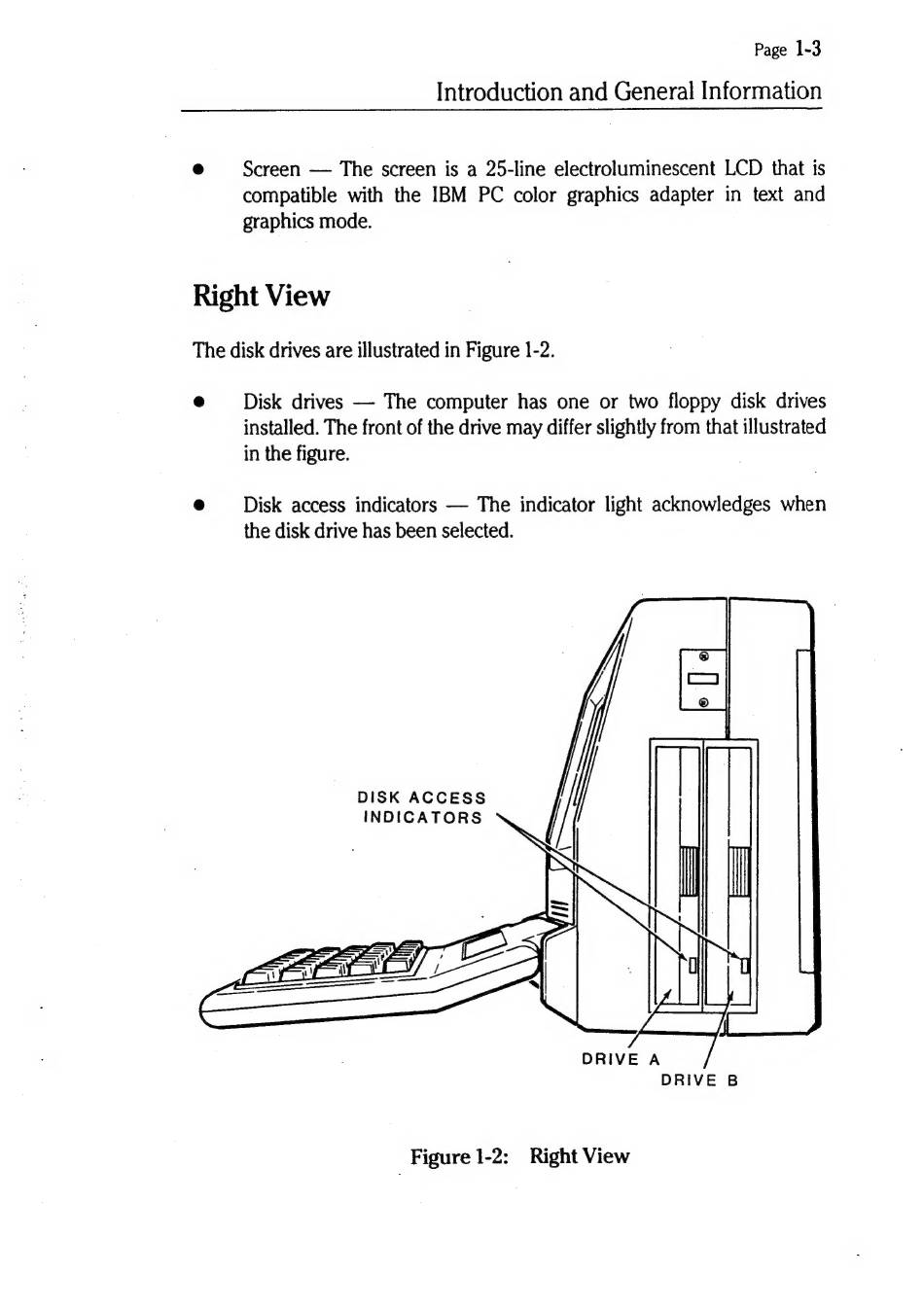

Figure 1-2: Right View
