Page 4-14
Disassembly/Reassembly
Modem Board
To make sure that no damage will occur to the optional modem board,
remove the. back cover before disassembly. Refer to Figure 4-11 for the
following procedures.
1.
Grasp both ends of the board near the connectors.
2.
Carefully lift the board straight, up applying equal pressure to both
ends.
NOTE: When replacing this board make sure that the contact pins of
the memory board and the main board are properly aligned before fully
inserting the board.

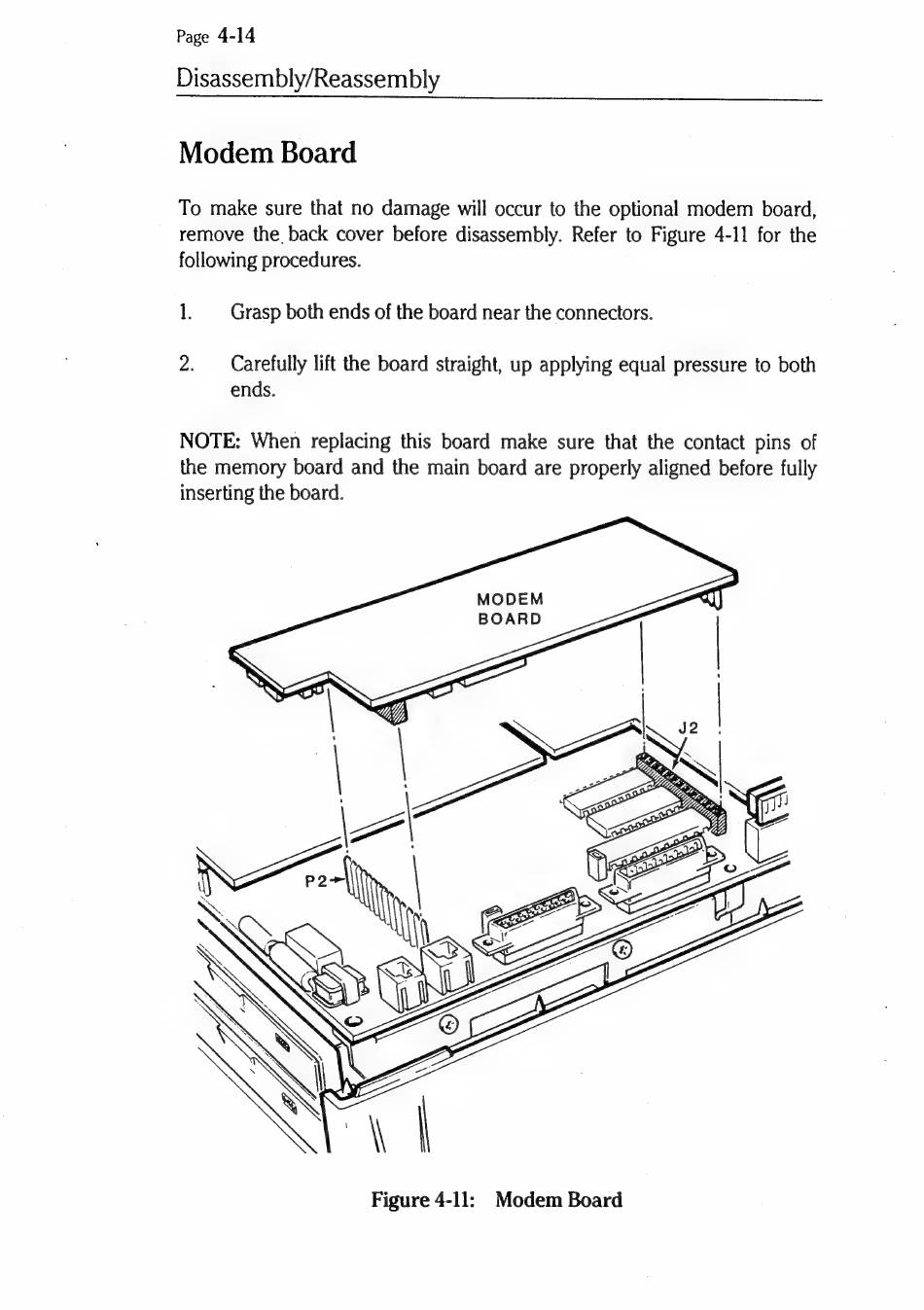

Figure 4-11:
Modem Board
