Chapter 5
Configuration
This chapter describes the configuration jumpers found on the main logic
board, the memory board, and the RGB video video board. Chapter 4,
"Disassembly/Reassembly" contains the procedures required to access
these boards. Refer to Figure 5-1 for the location of the boards.
HIGH
MEMORY
RESOLUTION
BOARD
BOARD
MAIN
LOGIC
BOARD
POWER
CONTROL
BOARD
ed
ok
MODEM
BOARD

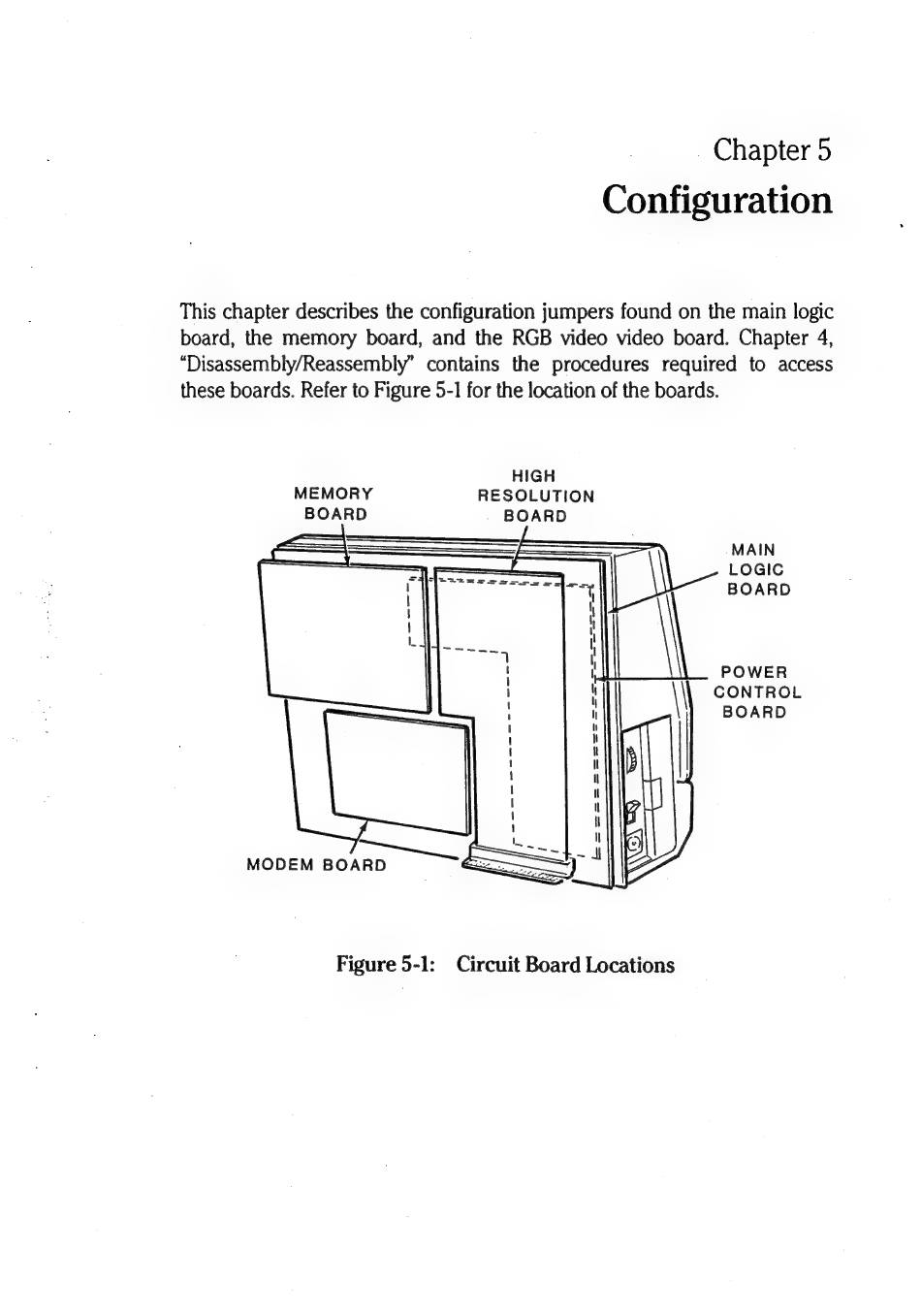

Figure 5-1:
Circuit Board Locations
