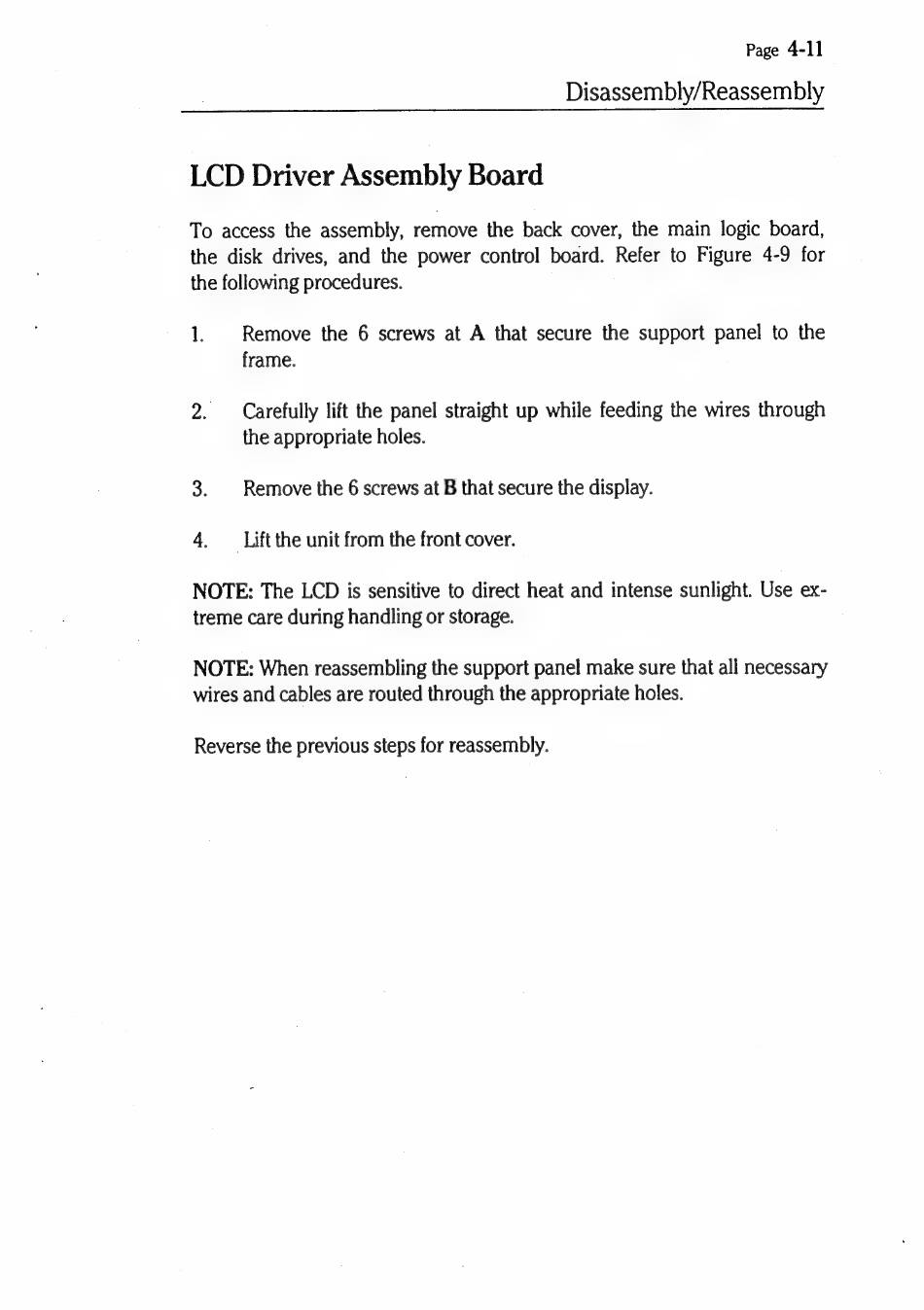

Zenith Data Systems Z-171 PC Series Service Manual page 55

Page 4-11
Disassembly/Reassembly
LCD Driver Assembly Board
1. | Remove the 6 screws at A that secure the support panel to the
frame.
2. Carefully lift the panel straight up while feeding the wires through
the appropriate holes.
3. | Remove the 6 screws at B that secure the display.
4. Lift the unit from the front cover.
NOTE: The LCD is sensitive to direct heat and intense sunlight. Use ex-
treme care during handling or storage.
NOTE: When reassembling the support panel make sure that all necessary
wires and cables are routed through the appropriate holes.
Reverse the previous steps for reassembly.
