Page 3-7
Operation —
a ee
ee LEE

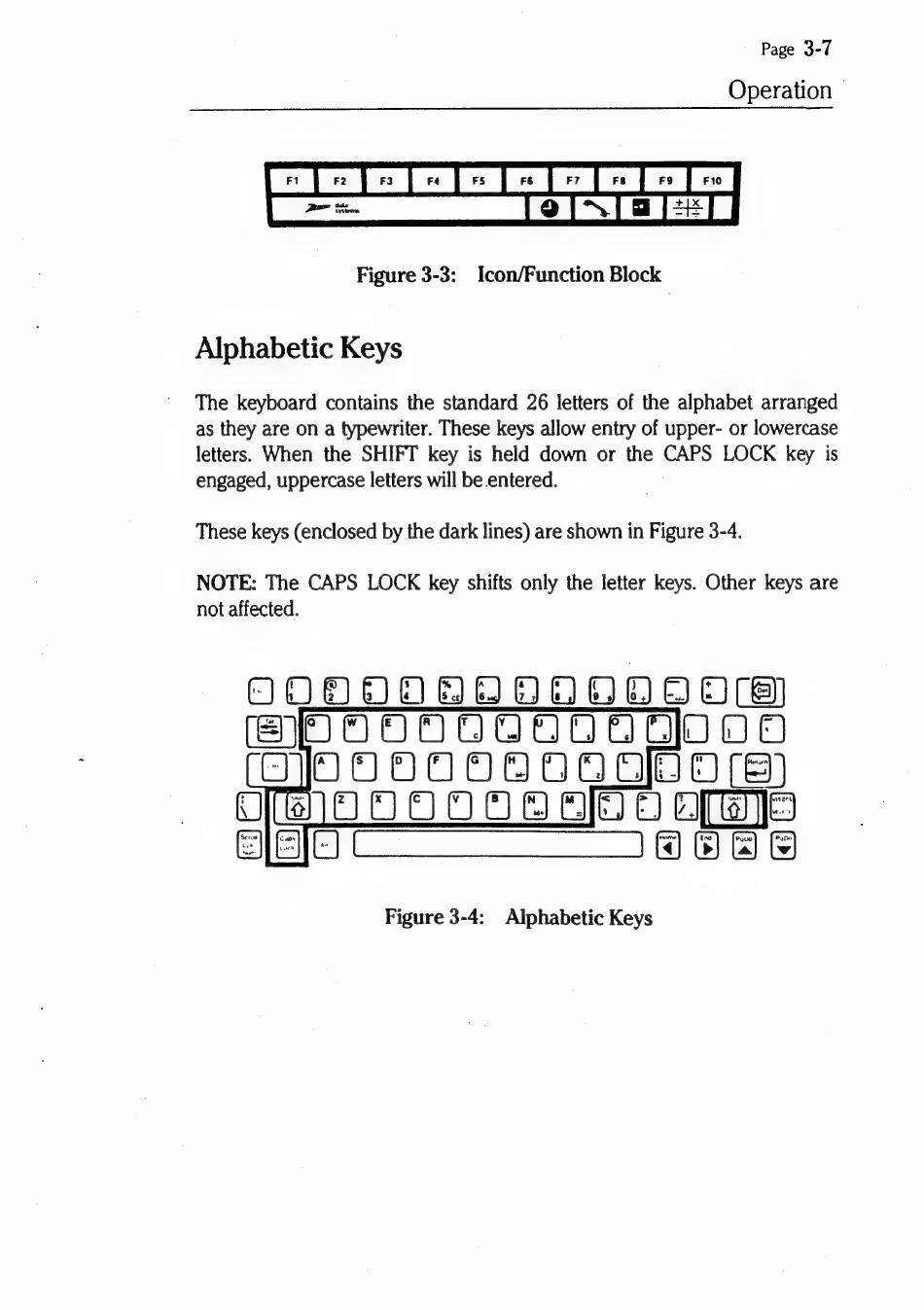

Figure 3-3: Icon/Function Block
Alphabetic Keys
The keyboard contains the standard 26 letters of the alphabet arranged
as they are on a typewriter. These keys allow entry of upper- or lowercase
letters. When the SHIFT key is held down or the ae LOCK key is
engaged, uppercase letters will be entered.
These keys (enclosed by the dark lines) are shown in Figure 3-4.
NOTE: The CAPS LOCK key shifts only the letter keys. Other keys are
not affected.
Figure 3-4: Alphabetic Keys
