Page 2-9
Installation
Composite video connector — This RCA phono jack supplies a video
output signal for use with an external monochrome monitor. This connec-
tor is provided with the optional color video board.
Phone/modem connector — This jack is used for the internal 300/1200
baud, Hayes-compatible modem. It connects to a modular-type telephone
cable and may also be used as an external modem using an RS-232C
port.
O
c
Cc
G
RGB COMPOSITE
at VIDEO OUT
<i
are Gismeers
te
scsitine ci :
CONNECTORS
PARALLEL
PORT SERIAL
PORT
EXPANSION PORT

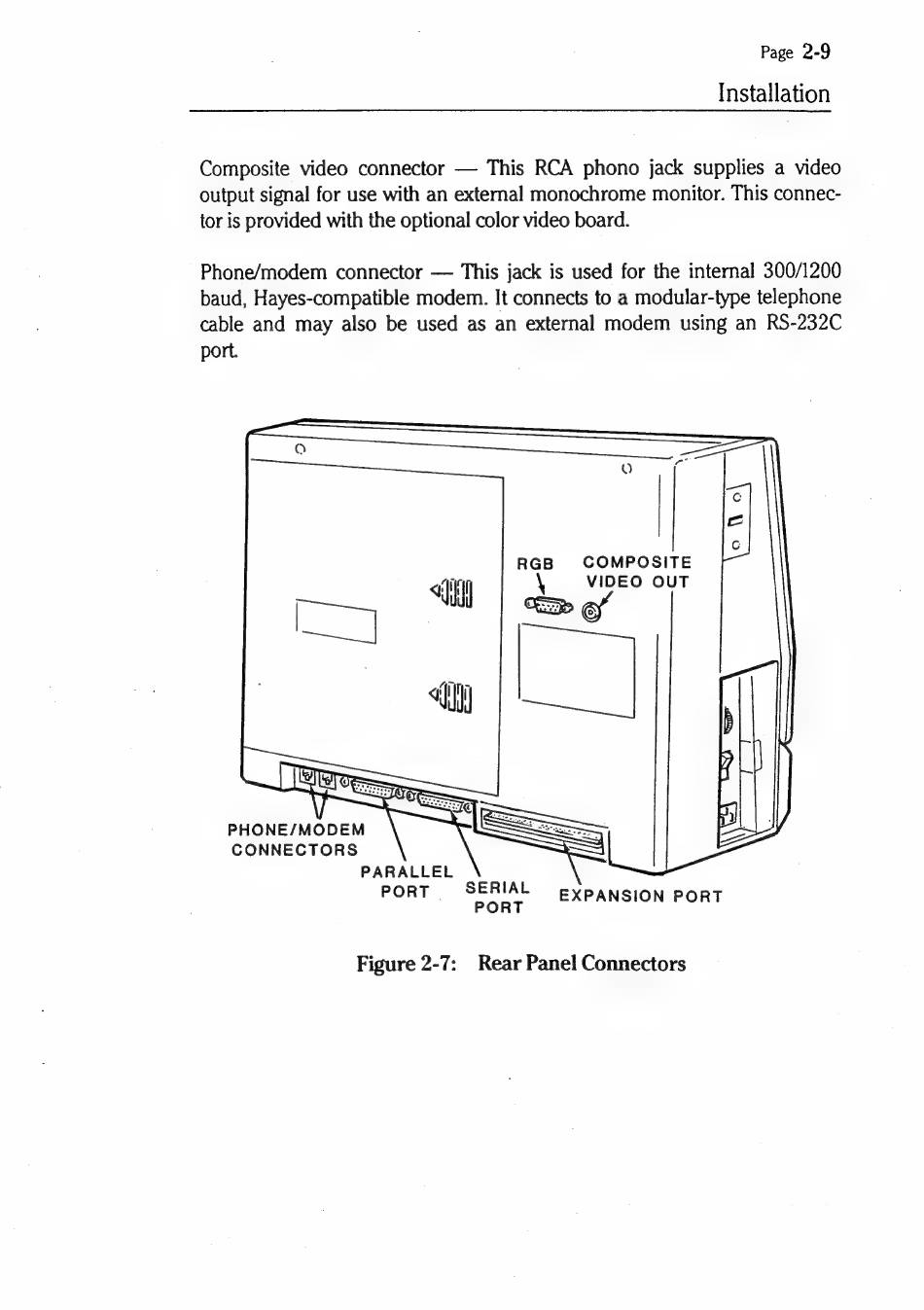

Figure 2-7: Rear Panel Connectors
