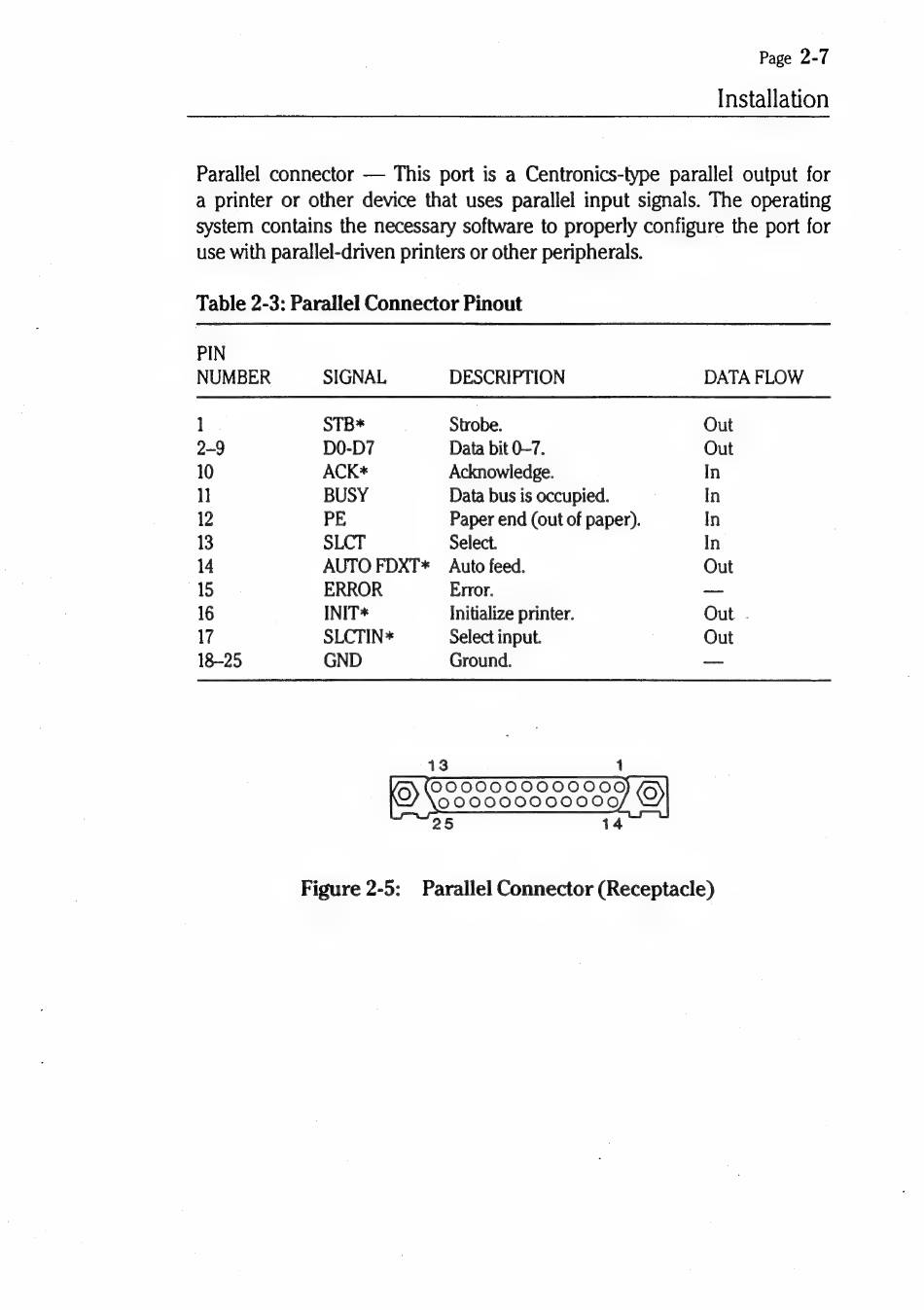

Page 2-7
Installation
Parallel connector — This port is a Centronics-type parallel output for
a printer or other device that uses parallel input signals. The operating
system contains the necessary software to properly configure the port for
use with parallel-driven printers or other peripherals.
Table 2-3: Parallel Connector Pinout
PIN
NUMBER
SIGNAL
DESCRIPTION
DATA FLOW
1
STB*
Strobe.
Out
2-9
DO0-D7
Data bit 0-7.
Out
10
ACK*
Acknowledge.
In
1]
BUSY
Data bus is occupied.
In
12
PE
Paper end (out of paper).
In
13
SLCT
Select.
In
14
AUTO FDXT*
Auto feed.
Out
15
ERROR
Error.
—
16
INIT*
Initialize printer.
Out -
17
SLCTIN*
Select input.
Out
18-25
GND
Ground.
—
13
1
(0) OOD0D000000000
(0)
OO0D000000000
25
14
Figure 2-5:
Parallel Connector (Receptacle)
