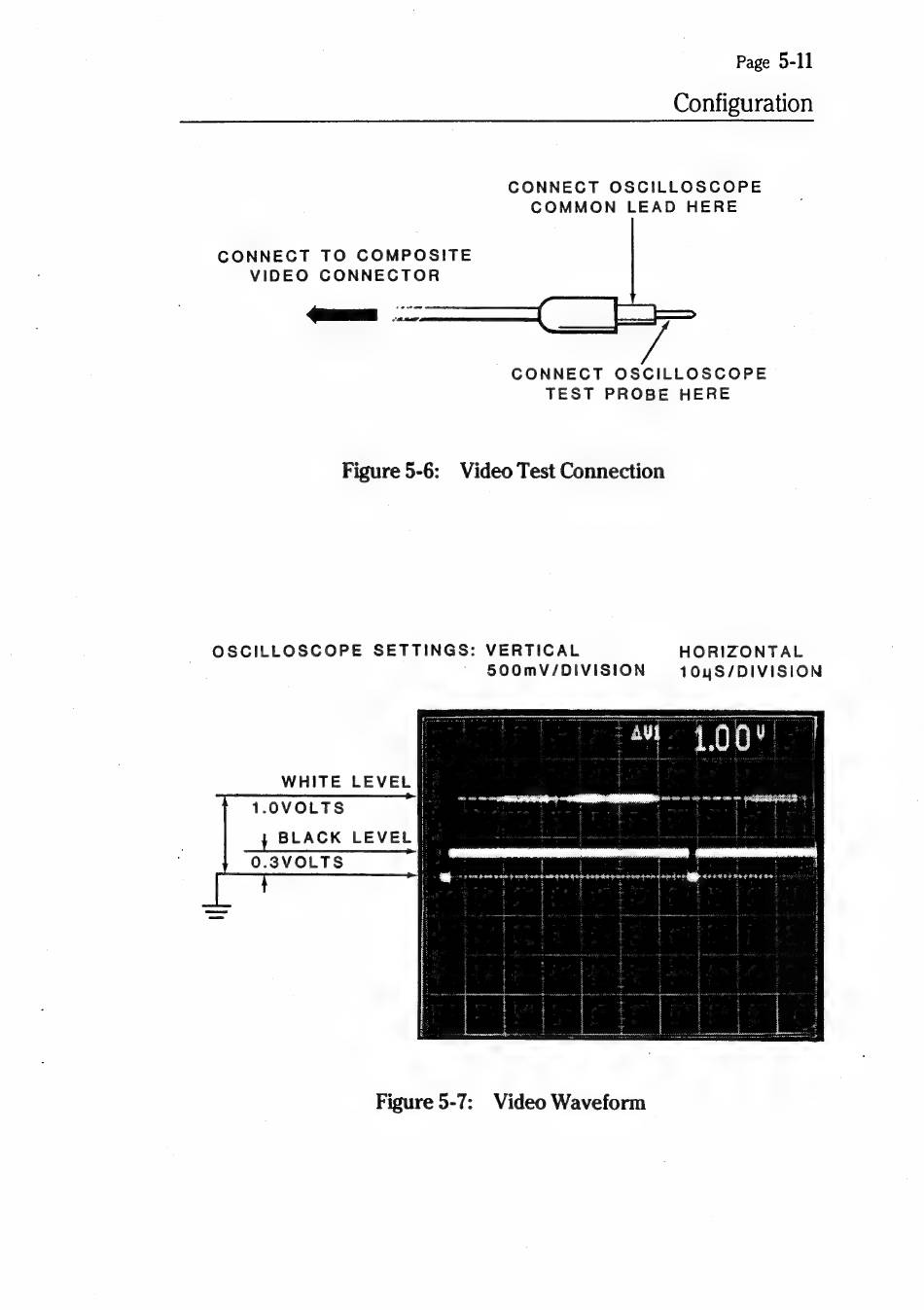

Page 5-11
Configuration
CONNECT
OSCILLOSCOPE
COMMON
LEAD
HERE
CONNECT
TO
COMPOSITE
VIDEO
CONNECTOR
CONNECT
OSCILLOSCOPE
TEST
PROBE
HERE
Figure 5-6:
Video Test Connection
OSCILLOSCOPE
SETTINGS:
VERTICAL
HORIZONTAL
500mV/DIVISION
10yS/DIVISION
Figure 5-7:
Video Waveform
