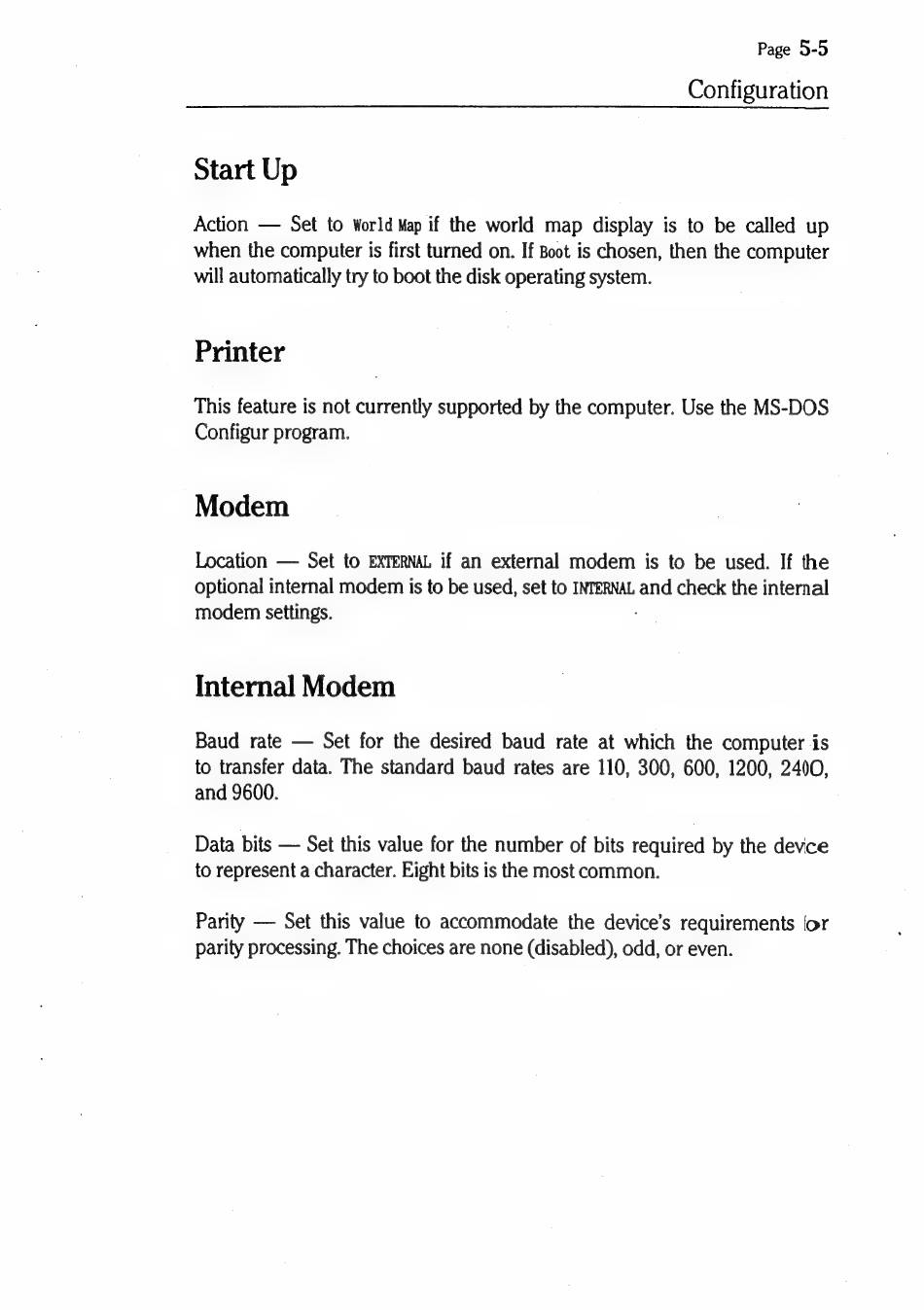

Page 5-5
Configuration
Start Up
Action — Set to World Map if the world map display is to be called up
when the computer is first turned on. If Boot is chosen, then the computer
will automatically try to boot the disk operating system.
Printer
This feature is not currently supported by the computer. Use the MS-DOS
Configur program.
Modem
Location — Set to EXTERNAL if an external modem is to be used. If the
optional internal modem is to be used, set to INTERNAL and check the internal
modem settings.
Internal Modem
Baud rate — Set for the desired baud rate at which the computer is
to transfer data. The standard baud rates are 110, 300, 600, 1200, 2400,
and 9600.
Data bits — Set this value for the number of bits required by the device
to represent a character. Eight bits is the most common.
Parity — Set this value to accommodate the device's requirements lor
parity processing. The choices are none (disabled), odd, or even.
