Zenith Data Systems Z-171 PC Series Service Manual page 57

Page 4-13
Disassembly/Reassembly
RGB Video Board
To access the optional RGB video board, remove the back cover. Refer
to Figure 4-10 for the following procedures.
1. Unplug the power connector (P1).
y Unplug the board from the expansion chassis connector (J8), and
lift from the assembly.
Reverse the previous steps for reassembly.
©)
8
g UO RGB VIDEO P 1
vg BOARD
. ) :
\

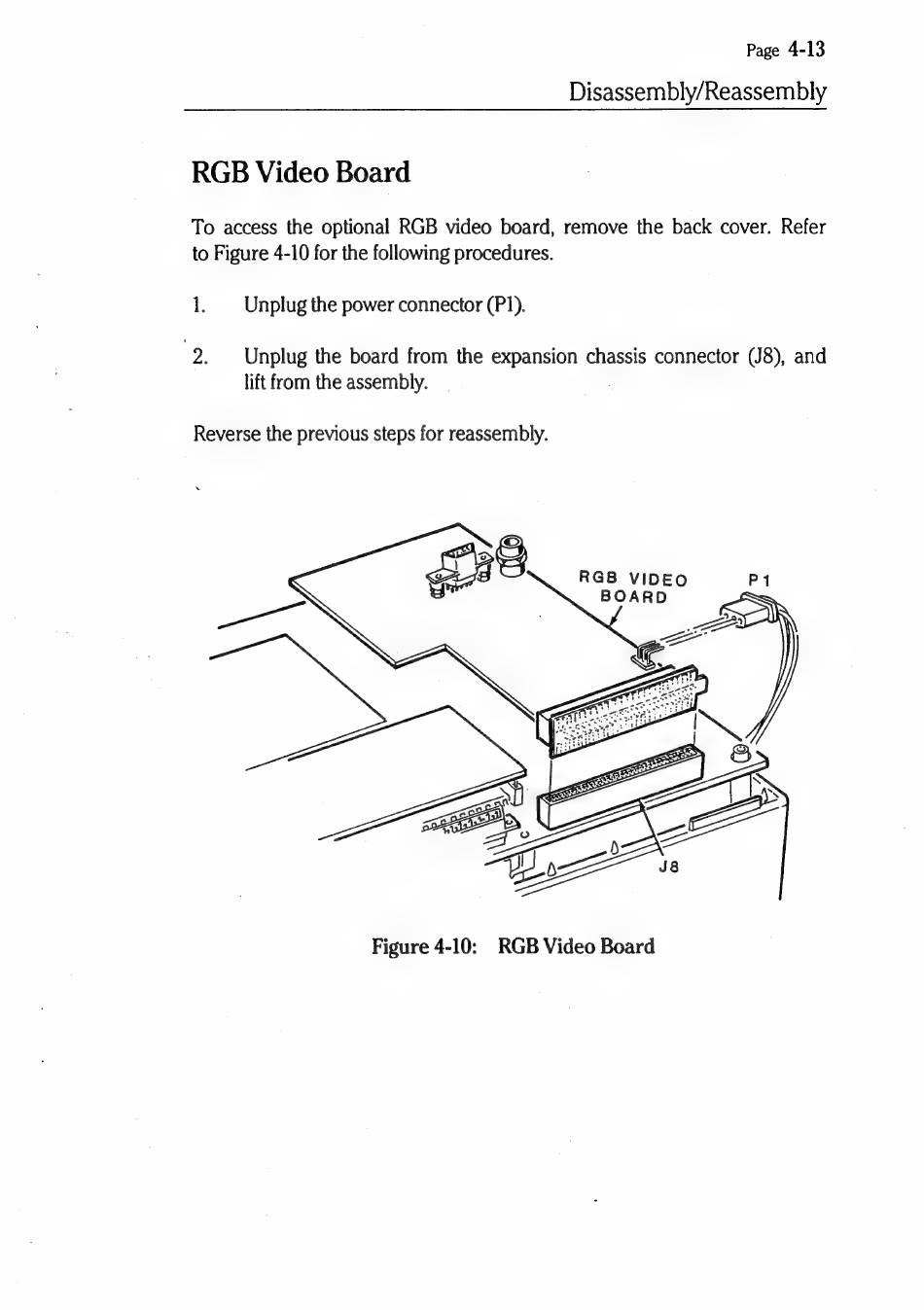

Figure 4-10: RGB Video Board
