Page 4-4
Disassembly/Reassembly
Rear Access Panel
Refer to Figure 4-3 for the following procedures.
3.
Lift the panel straight up and off the computer.
Reverse the previous steps for reassembly.

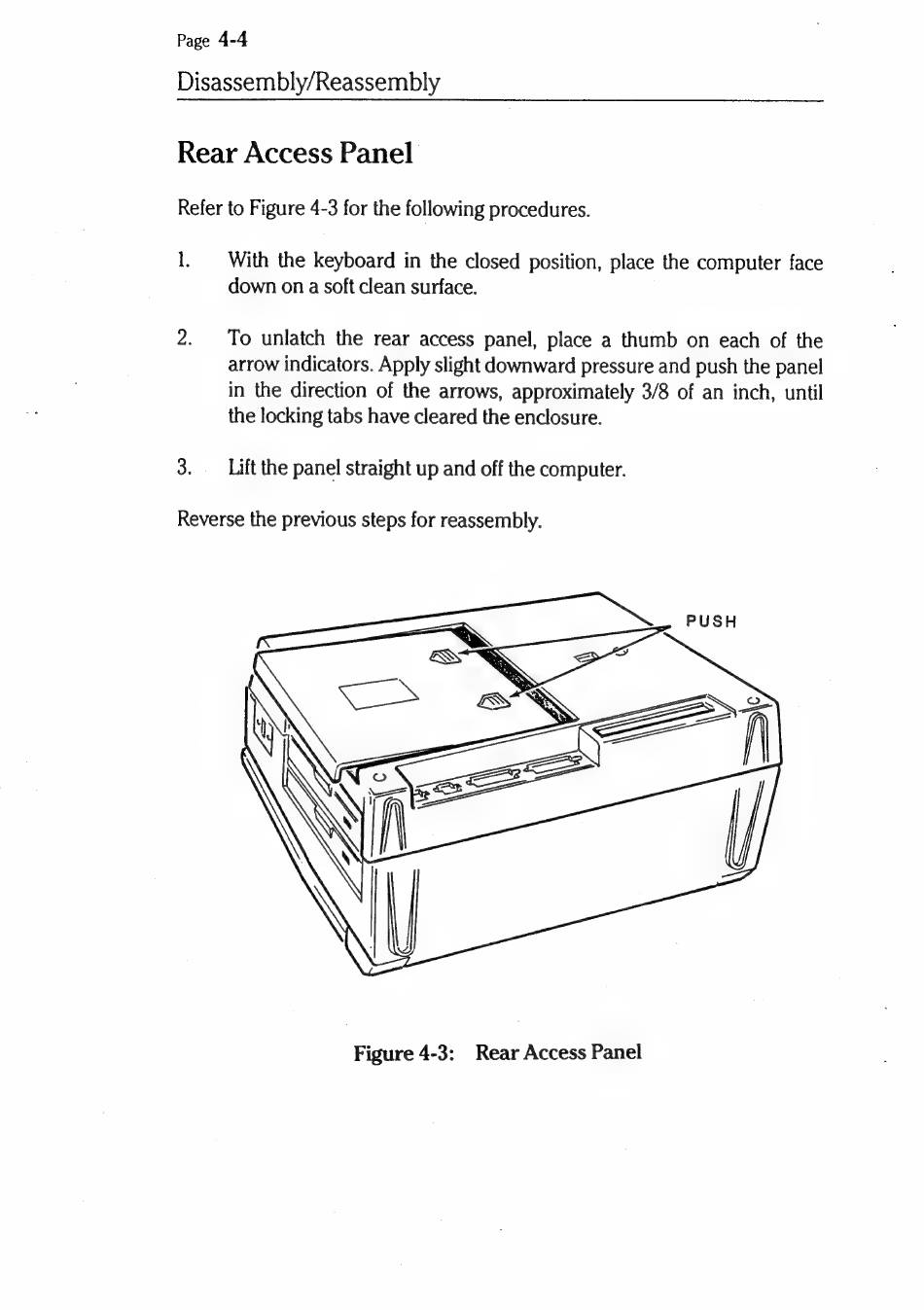

Figure 4-3:
Rear Access Panel
