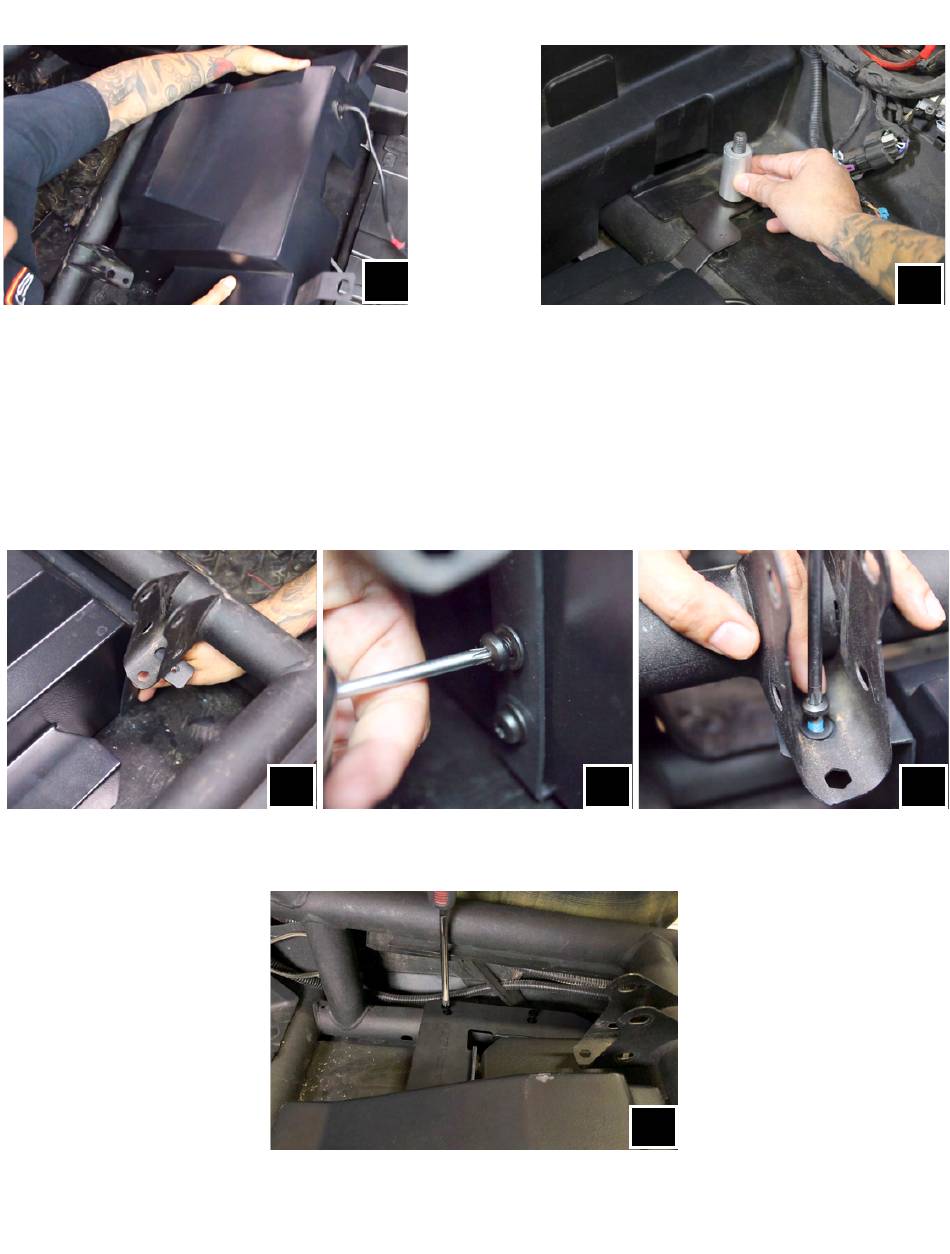

F. Remove the seat mounting spacer from the seat mounting stud
towards the center of the car.
Feed the enclosure down under the seat bar and simultaneously
guide "Bracket C" over the inner seat mounting stud that does
not have the spacer. The Factory spacer will not be re-used***
As the enclosure is set into place, the brake line is to run along
the dedicated channel on the sub enclosure. Make any routing
adjustments to the brake line so the enclosure lays down flat without
any tension on the brake line. Bracket C should be sitting flat on top
of the floor plastic once the enclosure is in place.
H. Place bracket A to the right side of the enclosure (H1). Line up the 2 screw holes and proceed to hand thread the T-30 torx screws and washers. Use a T-30
torx bit to tighten screws (H2). Line up the top of bracket A hole on the factory seat brakcet. Screw in the T-30 torx screw with the large washer (H3).
20
F
H1
I. The large bracket will align over (2) factory holes in the chassis.
Using a #3 Phillips screwdriver, secure the large bracket to the
chassis with the provided (2) thread rolling screws and washers.
G. Replace the factory seat bolt spacer with the supplied SSV
Works spacer on top of bracket C.
H2
I
G
H3
