SSV Works X32-PHZ5V Wiring Installation Manual

2017-2023 can am maverick x3 phase-5, v-spec, 6-speaker 1650 watt audio kit with jvc mr1
Hide thumbs

Advertisement

Quick Links

Download this manual
SSV WORKS, 4610 Calle Quetzal, Camarillo, CA 93012
www.SSVworks.com | Phone: 818-991-1778 | Fax: 866-293-6751
9
pg
Panel
Disassembly
11
pg
Dash Speaker Panel
Installation
11
pg
RGB Controller Command Center
Installation
14
pg
Amp Tray
Installation
18
pg
JVC MR1
Installation
21
pg
Subwoofer
Installation
28
pg
RGB Cage Mount Speakers
Installation

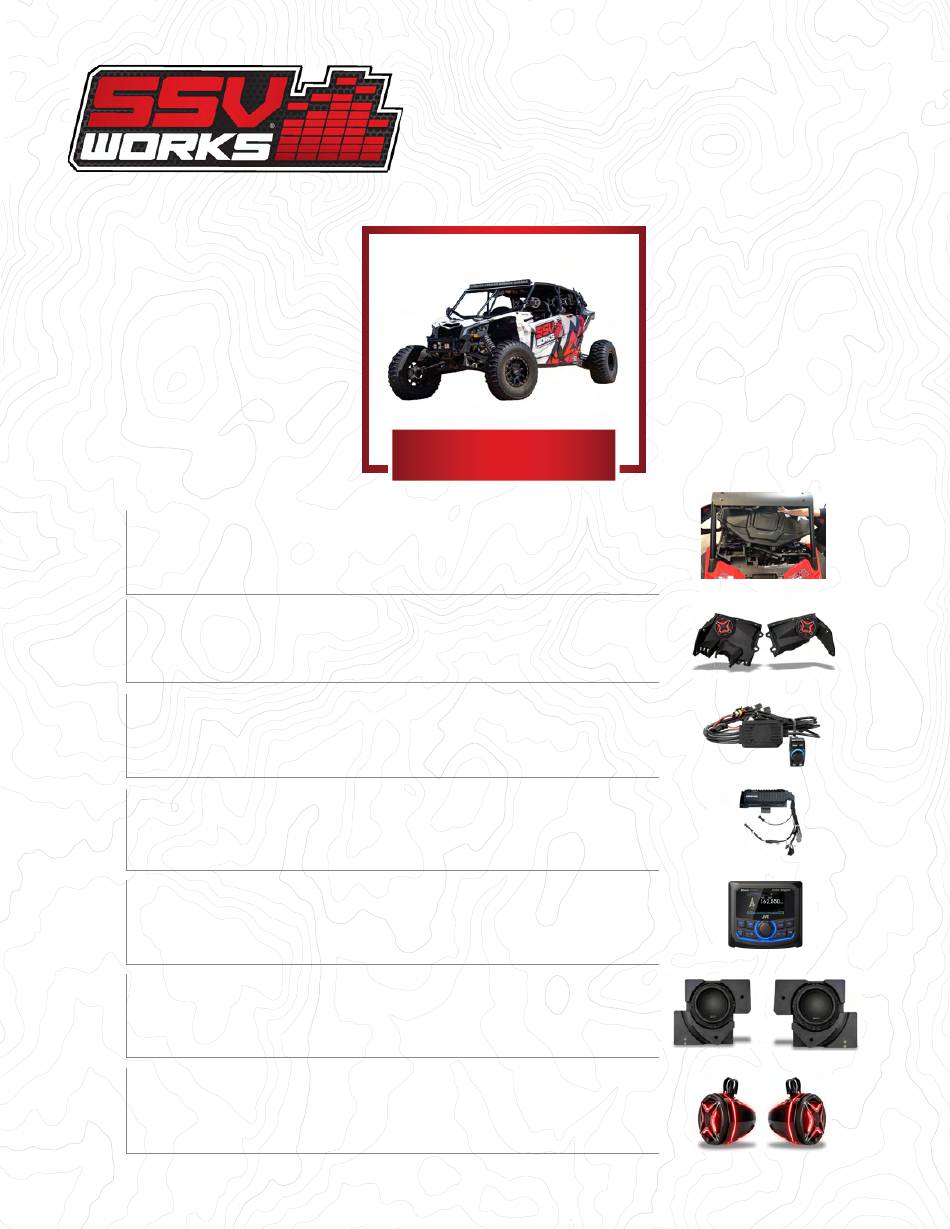

2017-2023 Can Am Maverick X3
Maverick X3
X32-PHZ5V
Phase-5, V-Spec, 6-Speaker
1650 Watt Audio Kit
with JVC MR1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the X32-PHZ5V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SSV Works X32-PHZ5V

Summary of Contents for SSV Works X32-PHZ5V

  • Page 1 X32-PHZ5V 2017-2023 Can Am Maverick X3 Phase-5, V-Spec, 6-Speaker 1650 Watt Audio Kit SSV WORKS, 4610 Calle Quetzal, Camarillo, CA 93012 with JVC MR1 www.SSVworks.com | Phone: 818-991-1778 | Fax: 866-293-6751 Maverick X3 Panel Disassembly Dash Speaker Panel Installation RGB Controller Command Center...

  • Page 2: Parts List

    All SSV Works enclosures are covered by a limited lifetime warranty against defects in instructions completely before material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty installation to avoid possible injury, or against defects in material or workmanship. All SSV Works Speakers are covered by a damage to the accessory or vehicle.
  • Page 3 All SSV Works enclosures are covered by a limited lifetime warranty against defects in instructions completely before material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty installation to avoid possible injury, or against defects in material or workmanship. Labor for replacement of defective components damage to the accessory or vehicle.
  • Page 4 All SSV Works enclosures are covered by a limited lifetime warranty against defects instructions completely before in material or workmanship. All SSV Works Electronics are covered by a limited 1 year installation to avoid possible injury, or warranty against defects in material or workmanship. Labor for replacement of defective damage to the accessory or vehicle.
  • Page 5 All SSV Works enclosures are covered by a limited lifetime warranty against defects instructions completely before in material or workmanship. All SSV Works Electronics are covered by a limited 1 year installation to avoid possible injury, or warranty against defects in material or workmanship. Labor for replacement of defective damage to the accessory or vehicle.
  • Page 6 WARRANTY INFORMATION: Please read and understand these All SSV Works enclosures are covered by a limited lifetime warranty against defects in material instructions completely before or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty against defects in material or workmanship.
  • Page 7 WARRANTY INFORMATION: Please read and understand these All SSV Works enclosures are covered by a limited lifetime warranty against defects in material instructions completely before or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty against installation to avoid possible injury, or defects in material or workmanship.
  • Page 8 WARRANTY INFORMATION: Please read and understand these All SSV Works enclosures are covered by a limited lifetime warranty against defects in material or instructions completely before workmanship. All SSV Works Electronics are covered by a limited 1 year warranty against defects in installation to avoid possible injury, or material or workmanship.
  • Page 9 PANELS AND DASH DISASSEMBLY A. To remove the seat, use a 13mm socket and wrench to remove front (2) bolt and nut, and use a 18mm socket to remove (2) rear nuts and seat belt nut ( repeat on other seat) B.
  • Page 10 E. Remove gas cover on the passenger side to expose a 10mm nut. Unscrew with a wrench and T30 torx driver. E2. Using panel removal tool unsnap (2) push clips on the driver and passenger side dash covers. Unscrew the (4) T30 screws on the passenger side, and (7) T30 screws on the driver side.
  • Page 11 DASH SPEAKER PANEL INSTALLATION TOOLS NEEDED FOR INSTALLATION - T20 & T30 Torx Driver - 8, 10 & 13mm Socket Wrench NOTE: Refer to the X3-DP65V installation manual included in the kit for a detailed installation process of the dash speaker panels. RGB LED CONTROLLER COMMAND CENTER INSTALLATION TOOLS NEEDED FOR INSTALLATION - Wire Cutter...
  • Page 12 RUNNING WIRE HARNESSES AMP POWER CABLES Connect the A-H1Q (x2) power/ground wire from the amplifiers to the battery. Use the provided fuse holder for circuit protection. JVC MR1 POWER HARNESS Connect the SSV to JVC MR1 adapter harness (B-H2368) power and ground wires to the factory bus bar located in the center consle Bus Bar beside the passenger seat.
  • Page 13 DASH SPEAKER PANEL AUDIO CABLES Run the B-H1385 front speaker harness from 400.4 amplifier to the dash speaker panels. The shorter end of the harness goes to the driver side dash speaker panel. REAR CAGE POD SPEAKER AUDIO CABLES Run the B-H1913 & B-H1912 4-pin audio extension harness from the 400.4 amplifier rear output to the B-H2195 rear speaker harness.
  • Page 14 AMP WIRING Power/Ground Amp Turn On Remote Bass 400.4 Front Inputs Rear Inputs Front Outputs Rear Outputs Power/Ground Sub Output Remote Bass 600.1 Sub Inputs Amp Turn On AMP PLATE INSTALLATION Mounts to ROPS Cage bolt Mounts to Firewall For optional ALPHA12 Switcher bracket Mounts to...
  • Page 15 The amp tray mounts on the driver side firewall above the tube chassis. A. Make a pilot hole with a pick tool through the top right screw hole in the amp plate and push all the way through the vehicle panel. C.
  • Page 16 F. Route the front speaker harness (B-H1385) and RGB harness (B-H2935) towards the driver and passenger side of the vehicle and plug in the 4 pin audio connector to the 400.4 amplifier front outputs. Leave the 4 pin RGB connector at the center of the dash or LIT-CC RGB Controller mounting location.
  • Page 17 RUNNING AMP POWER CABLE AND SPEAKER WIRE A. In this step you will be feeding all of the necessary wires from the top driver side dash down the center dash column. Be sure to run all of the wires along side the factory cabling and avoid any moving parts. Feed the amp power wire, both audio extension harnesses, (one is for subwoofer, the second is for rear cage mount speakers), RGB extension harness and power/ground for JVC MR1 from top driver side down the center column (A1).
  • Page 18 DASH KIT ASSEMBLY A. Set the base plate on the dash. Press the (4) drill guides onto the base plate B. Using a 1/8” drill bit, drill the center of the drill guides to provide C. Set aside the base plate and open the pilot holes up with a 1/4” pilot holes.
  • Page 19 F. Place (4) M6 T30 screws and washers into each drilled hole. Fasten G. Using a #2 Phillips screwdriver, secure the front of the base plate from the bottom a washer and M6 nut. Secure each screw with with the provided (2) #6 x ½” screws. 10mm wrench and T30 torx driver.
  • Page 20 L. Secure the backside of the DMR1 with (2) push pins. M. Center the trim ring on the MR1 and firmly press down until the side and corners click into place. JVC MR1 WIRING CONNECTION A. Connect the blue “AMP TURN-ON” from the B.
  • Page 21 UNDER SEAT SUBWOOFER ENCLOSURE (DRIVER SIDE) THIS STEP IS OPTIONAL Some x3 models have a thinner skid plate than others and may rattle more. We have provided a drill template to help minimize skid plate rattle. H. To help minimize skid plate rattle, we have supplied a drill template that adds 4 holes to help relieve air pressure that is being generated by the high output of the sub enclosure.
  • Page 22 B. Using the supplied T-30 torx M6 screws and washers, screw the C. Using the supplied T-30 torx M6 screws and washers, screw the C bracket to the bottom left side of the enclosure. Large bracket to the right side of the enclosure shown above. Do not screw in all the way, leave the screws somewhat loose so that you can fit the enclosure snug and then tighten the screws after.
  • Page 23 F. Remove the seat mounting spacer from the seat mounting stud G. Replace the factory seat bolt spacer with the supplied SSV towards the center of the car. Works spacer on top of bracket C. Feed the enclosure down under the seat bar and simultaneously guide “Bracket C”...
  • Page 24 I. The large bracket will align over (2) factory holes in the chassis. Using a #3 Phillips screwdriver, secure the large bracket to the chassis with the provided (2) thread rolling screws and washers. J. Route the B-H2702 sub extension harness along the center console away from any moving parts and sharp metal towards the rear of the vehicle then connect to the B-H3081 “Y”...
  • Page 25 A. Apply the short foam strips to the large bracket in the order shown above (A1). Apply the long foam strips to the outside edges of the enclosure. (Driver outside = left / Passenger outside = right) (A2). B. Fasten the D-Bracket to the bottom right side of the enclosure C.
  • Page 26 E. Remove the factory 10mm Brake line nut and bolt. Place the M6x1.0x25mm screw and washer through the brake line mounting tab. Slide onto the screw in the following order, brake line spacer, brake line, washer and secure together with the M6 10mm lock nut. (Disregard this step for the 4-seat Maverick X3 Max) F.
  • Page 27 I. The large bracket will align over (2) factory holes in the chassis. Using a #3 Phillips screwdriver, secure the large bracket to the chassis with the provided (2) thread rolling screws and washers. J. Plug the open end of the B-H3081 “Y” harness to the X32-PUS10 (passenger side).
  • Page 28 RGB CAGE POD WITH 6.5” SSV RGB SPEAKER A. Find the best orientation for the speaker on your bar and B. Loosely install the clamp base to the cage mount pod with the screw in the Set Screws in the OPPOSITE holes of where the two (2) M6 hex head bolts and washers, place the cage mount clamp will install into.
  • Page 29 D. Position the speaker to your liking and tighten the hex head D. Take the B-H2195 rear speaker harness and plug into the bolts by hand with a 8mm wrench. B-H1913 & B-H1912 rear extension harness. E. Route the rear speaker harness along the factory wires in the engine compartment and pull up through the small space between the bed panel and cage tubing on both passenger and driver sides.
  • Page 30 B. Unscrew the factory nut on the positive battery terminal. Install the 2 power cables to the screw on the positive battery terminal. Re-install the factory nut. C. Zip tie all wiring to the factory cables away from any moving parts. THIS CONCLUDES THE INSTALLATION PROCESS. REPLACE THE FACTORY PANELS AND SEATS. QUESTIONS? PLEASE CONTACT SSV WORKS AT 818-991-1778 OR EMAIL SUPPORT@SSVWORKS.COM...
  • Page 31 © 2024 SSV Works, Camarillo, CA 93012 X32-PHZ5V 8-1-24...
