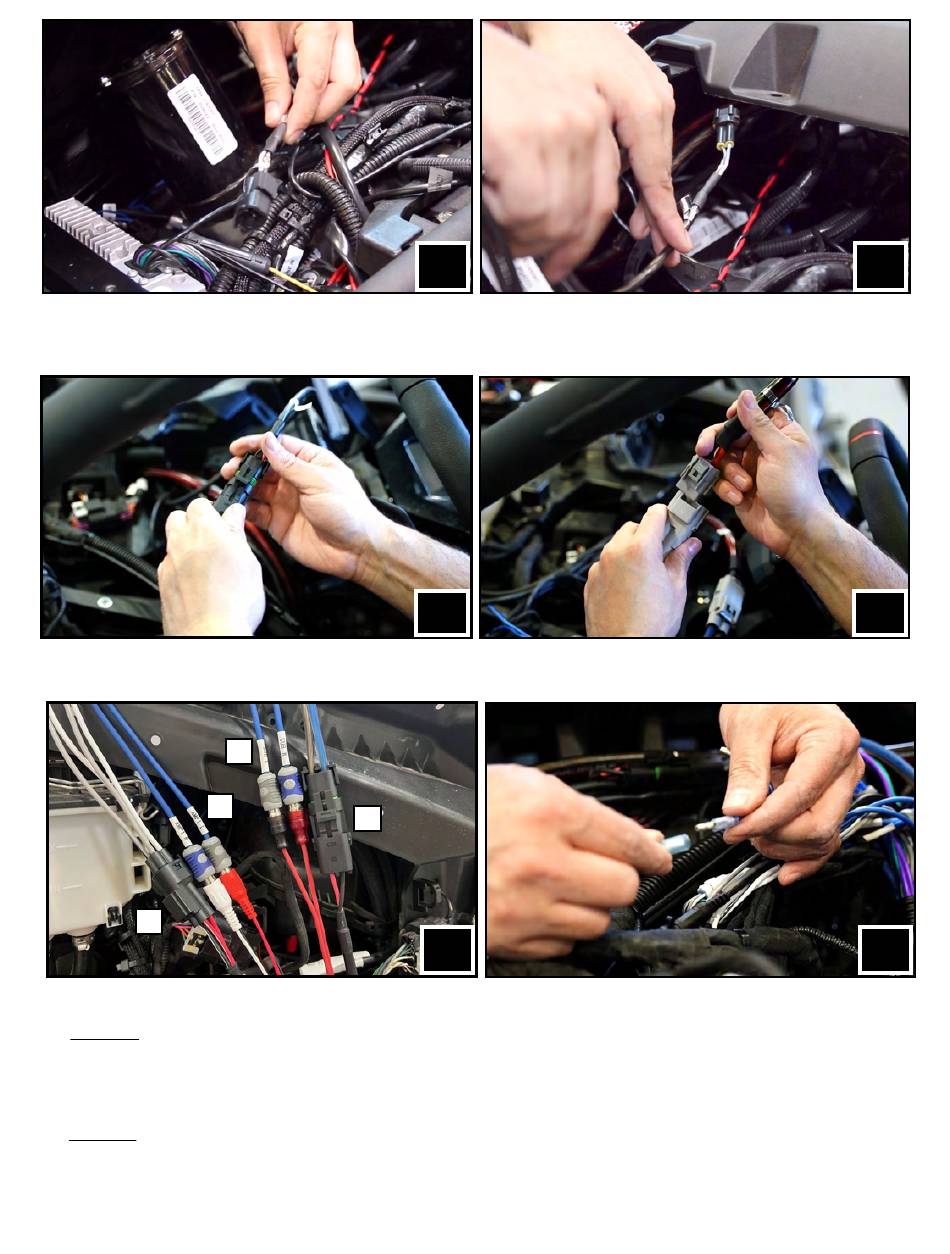

F. Route the front speaker harness (B-H1385) and RGB harness (B-H2935) towards the driver and passenger side of the vehicle and plug
in the 4 pin audio connector to the 400.4 amplifier front outputs. Leave the 4 pin RGB connector at the center of the dash or LIT-CC RGB
Controller mounting location.
G. Connect the subwoofer outputs of the 600.1 amplifier to the 2 pin subwoofer audio extension harness (B-H2702) (G). Connect amplifier
power harnesses to 400.4 and 600.1 amplifiers (G2).
2
H. Audio Wiring Connections:
400.4 Amp
[1] Input (AMP1 R/L) → B-H3543 RCAs → B-H2368 (SSV to JVC Adapter Harness) 4 Pin Front Output
[2] Front Outputs → B-H1385 → To front speakers
[3] Rear Outputs → B-H1385 → To Rear Cage Pod Speakers (Sold Separately)
600.1 Amp
[3] Input (SUB R/L) → B-HX3RCA (RCA Patch Cable) → JVC MR1 Sub-W Lineout RCAs
[4] Subwoofer Output → A-H2702K (2 pin Subwoofer Extension Cable → X3-DUS10 Sub Woofer
H2. Plug in Amp turn on wires from both amps to the B-H2368 (SSV to JVC Adapter Harness) turn on wire.
14
3
1
4
F
G
H
F2
G2
H2
