How to replace your iX-1
b
a
iX-1 mailing
system base
9

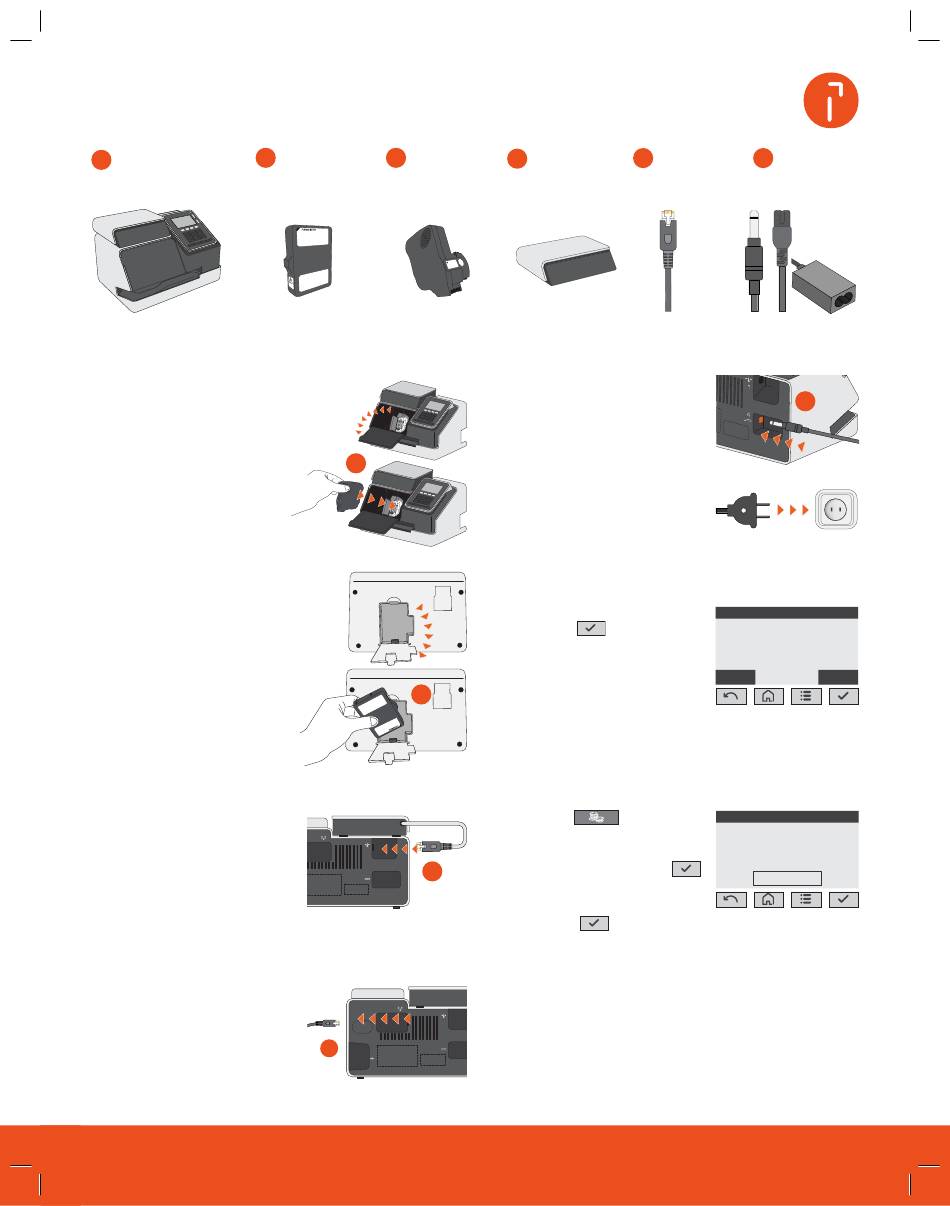

Install the ink cartridge
Open the front cover, then
open the ink cartridge slot by
pulling the blue lever towards
you and turning it to the right.
Insert the ink cartridge (c),
then turn the blue lever back
to the left until the cartridge is
secured, then close the cover.
10
Install the meter
Turn the iX-1 on its back and
open the meter cover located
on the bottom of the system.
Insert the meter (b) by
positioning it vertically, with
the contacts down facing to
the rear and the labels facing
towards you. Close the cover.
11
Connect the weighing platform
Plug the weighing platform
connector into the scale port
located on the back of the iX-1.
Tuck the cable into the
extra space at the back of
the system, then place the
weighing platform on top of
the iX-1.
12
Connect the internet cable
Plug one end of the LAN cable
into the internet cable port
located on the back of the iX-1.
Plug the other end into a LAN
wall jack or Wifi router.
Visit our how to hub at
kb.quadient.ca/iX-1_videos
to watch how to set up a Wi-Fi connection.
Need help? Contact us at: myquadient.ca or call 1.800.661.0200
c
Postage Ink
meter cartridge
c
b
2
1
d
4
3
2
1
e
4
3
e
d
Weighing
platform
13
Connect the power cable
Plug the power cable connector
into the power adapter.
Plug the power adapter
connector into the back of the
iX-1.
Plug the other end of the
power cable into the wall outlet.
The system will power up
automatically.
14
Confirm ink cartridge installation
Return to the iX-1 control panel
and press .
Follow the screen prompts to
confirm the replacement.
15
Add postage funds
Press the key to add
funds.
Use the down arrow button to
select add funds, then press
Using the keypad, enter the
amount of postage to add,
then press .
13
f
LAN Power
cable cable
f
Ink Cartridge Replacement
First remove old ink cartridge.
Install new cartridge and
press "OK".
Back OK
Add Funds
Funds Available
$ 399.98
Basic unit for $ 1.00
Amount to add
.
$_100.00
