iX-5 Series Base
Replacement Guide
Machine components
Automatic
k
Feeder Cable
Automatic
Feeder

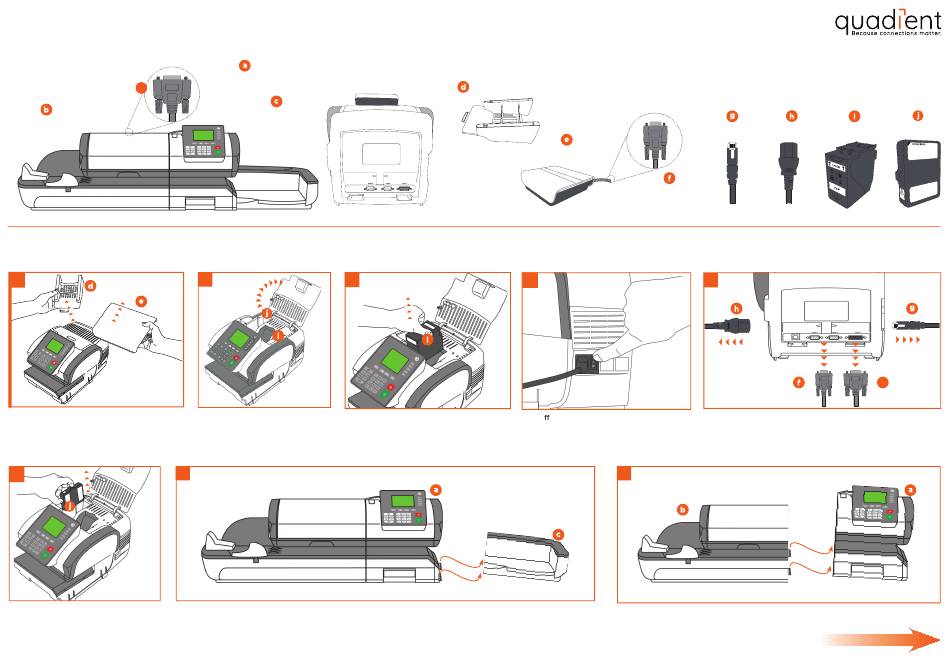

N1. Remove the components from your original machine
1
Remove the shelf
(d)
and the
weighing
platform
(e)
from the machine.
7
6
Open the latch, pull forward the meter
(j)
Remove the catch tray
and remove it.
Average Time Required: 15 minutes
Machine Base
Catch Tray
Back of Machine Base
2
3
Lift the cover of the machine to reveal
When opening the cover, the ink cartridge
the ink cartridge
(i)
and meter
(j)
moves to the replacement position. Press down
bays.
on the back of the ink cartridge to disengage it.
Lift out the ink cartridge.
(c)
from the base (a).
Shelf
Weighing Platform
4
(i)
Turn o the machine by pressing the power
button.
8
Remove the base
LAN Cable
Power Cable
Weighing Platform
Cable
5
Remove LAN cable (g), weighing platform cable (f), automatic
feeder cable
(k)
and power cable
(a)
from the automatic feeder (b).
Continue
Ink Cartdridge
Meter
k
(h).
