3.7 Replacing the Stepping Motor

1.
Refer to section 3.2 to remove the upper cover.
2.

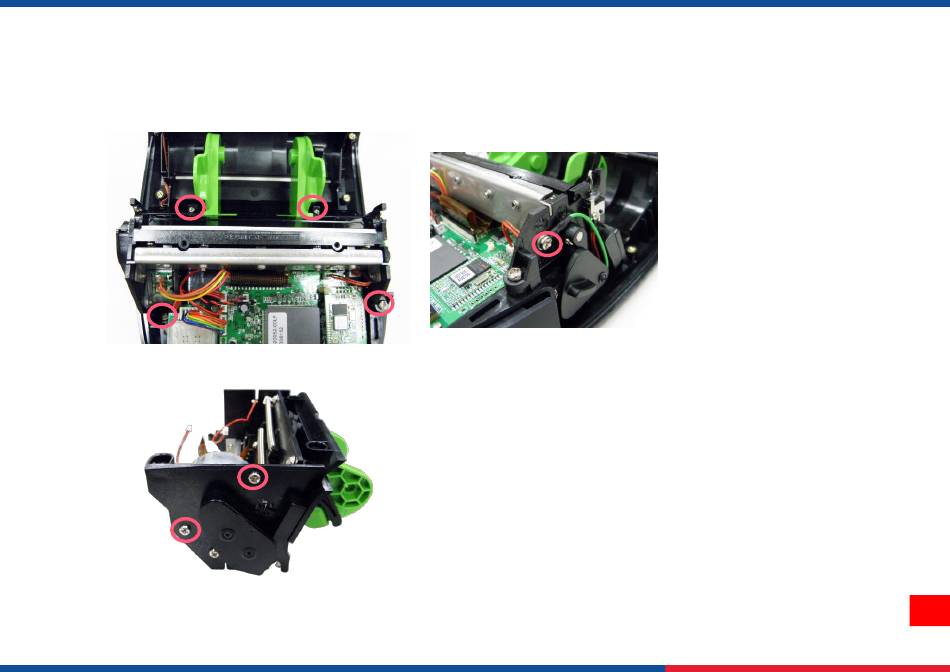

Remove 5 screws. Disconnect the connectors on main board to take out the internal mechanism.
3.
Remove 2 screws to replace the stepping motor.
4.
Reassemble the parts in the reverse procedures.
