3.7 Replacing the Stepping Motor

1.

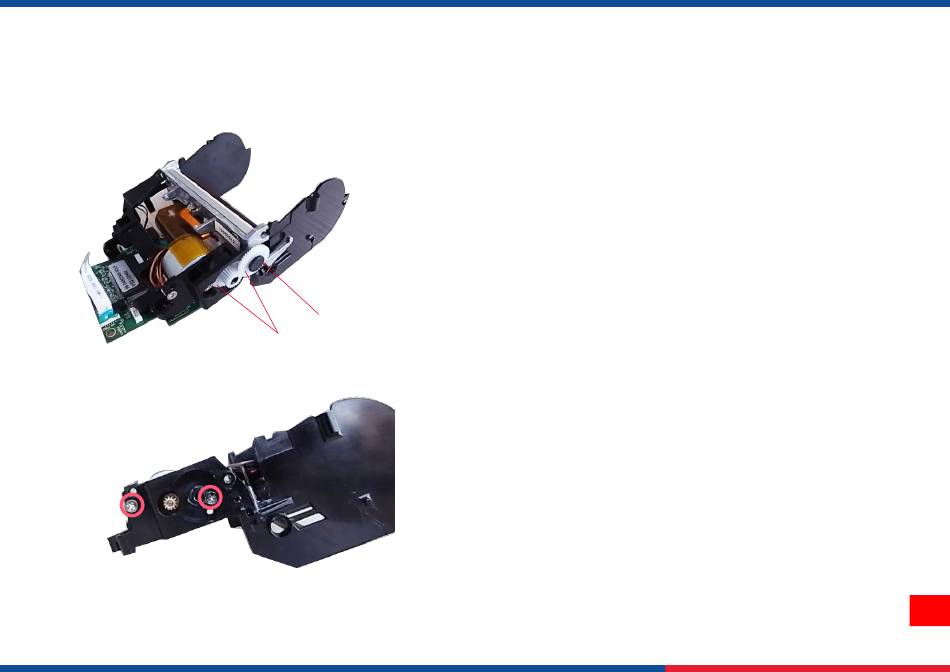

Refer to section 3.4 and section 3.5 to remove media holder assembly and main board assembly.
2.
Remove the gear holder and two gears.
3.
Remove two screws.
4.
Reassemble the parts in the reverse procedures.
gear holder
gears
15
