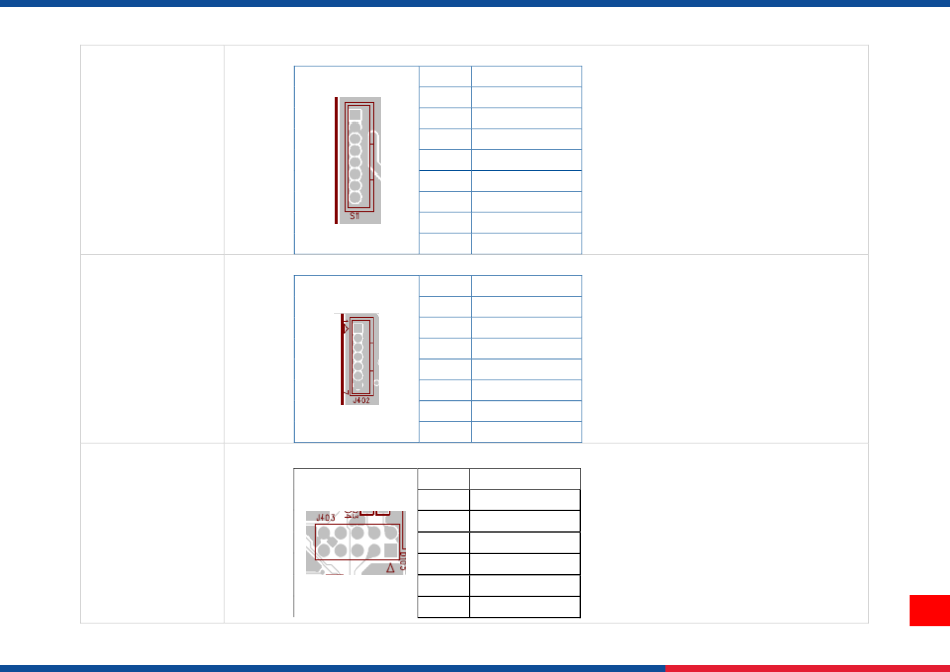

Download port
S1
WiFi connector
J402
Bluetooth connector
J403
Pin
Description
1
3.3V
2
GND
3
/RESET
4
BMS
5
/CS
6
MISO
7
MOSI
8
CLK
Pin
Description
1
3.3V
2
/WIFI_RST
3
WIFI_RXD
4
WIFI_RST
5
WIFI_TXD
6
WIFI_CTS
7
GND
Pin
Description
1
3.3V
2
BT_RST
3
BT_RXD
4
BT_RTS
5
BT_TXD
6
BT_CTS
10
