TSC Alpha-4L Service Manual page 21

5.

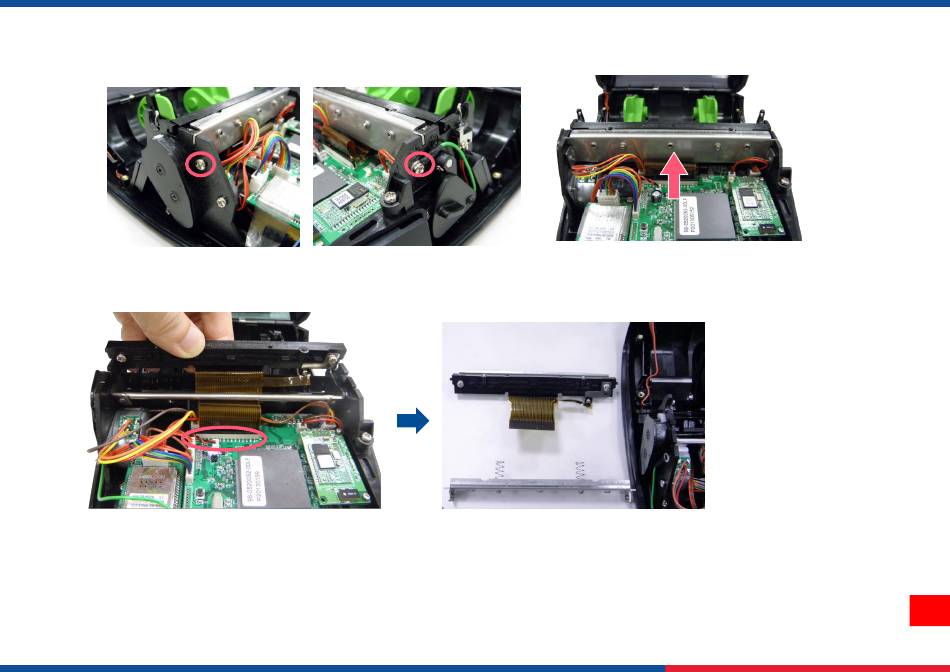

Remove 2 screws on the each side of lower inner cover to remove the print head spring fixture.
6.
Loosen the connector lock (black) then disconnect the flat cable from the main board. Remove the print head assembly.
7.
Reassemble the parts in the reverse procedures.
17
