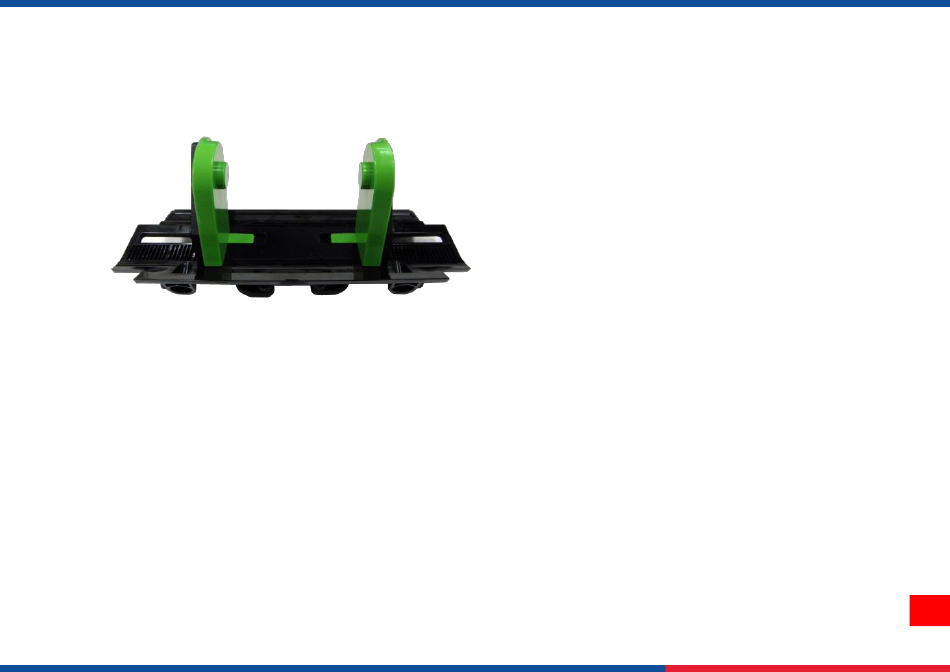

3.9 Replacing the Media Holder Assembly

1.
Refer to section 3.8 to remove the gap sensor assembly.
2.
Replace the media holder assembly.
3.
Reassemble the parts in the reverse procedures.
24
