3.13 Replacing the Charger Board Assembly

1.
Refer to the section 3.7 to take out the internal mechanism.
2.

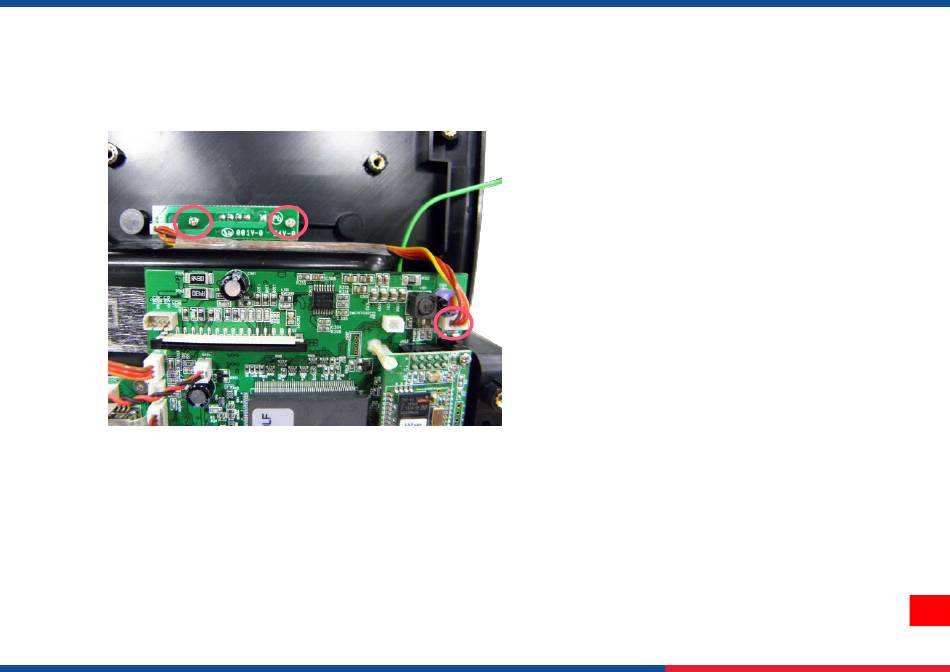

Disconnect the connector on the main board. Remove 2 screws to replacing the charger board assembly.
3.
Reassemble the parts in the reverse procedures.
