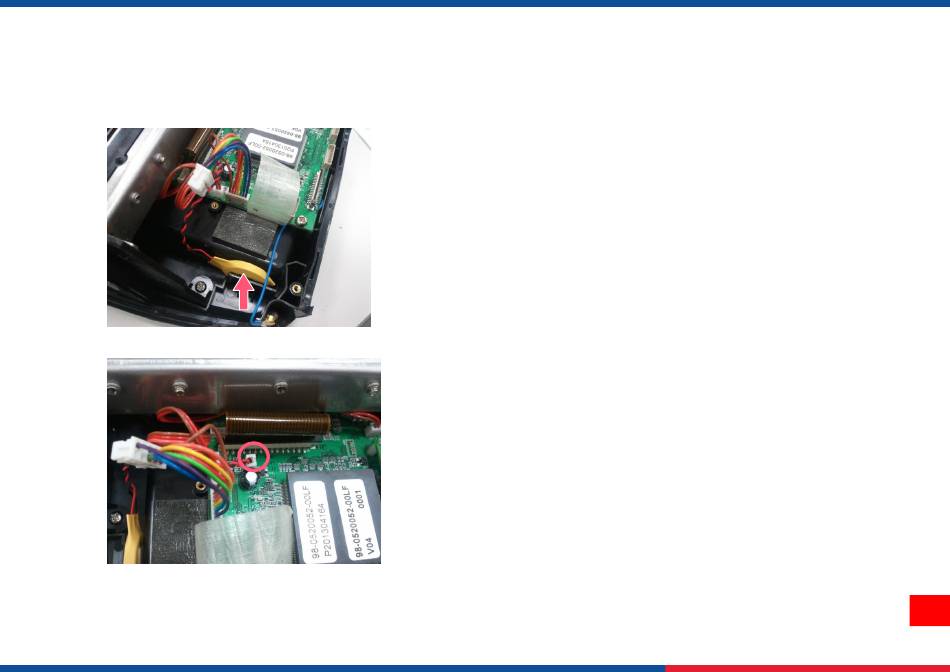

3.15 Replacing the RTC Battery (Option)
1.
Please refer to section 3.1 take the printer top cover off and replace a new one with platen roller.
2.
Refer to section 3.14 to remove the WiFi module.
3.
Disconnect the connector on the main board.
4.
Replace the RTC battery.
5.
Reassemble the parts in the reverse procedures.
30
