Installing the VoIP Loudspeaker Amplifier
Loudspeaker Amplifier Setup
2.2.3 Connect the Loudspeaker Amplifier
Figure 2-3
illustrates how to connect the VoIP Loudspeaker Amplifier (PoE).

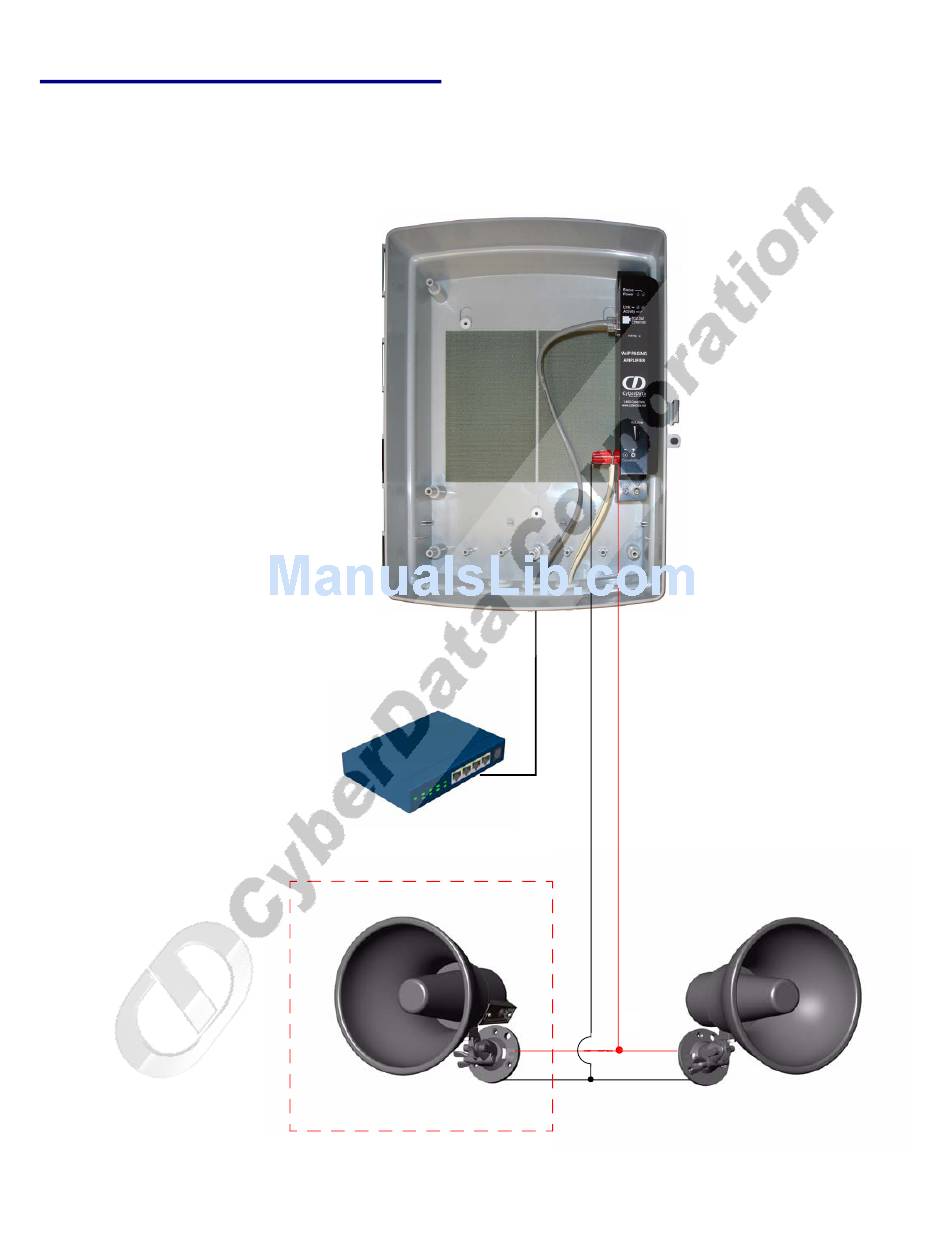

Figure 2-3. Connect a Loudspeaker
+
-
Ethernet Hub
Optional 2 Speaker Configuration
Standard 1 Speaker Configuration
8 Ohms
8 Ohms
CyberData Corporation
930106D
VoIP Loudspeaker Amplifier Operations Guide
