oPeraTIon

Operation
Now that you have connected your console and computers to the Mini-
Matrix, it is ready for use. By default computer #1 is projected on display #1 and
computer #2 is projected on display 2. Keyboard, mouse and audio are mapped
to computer #1.
To change the projected display you can use the physical push buttons.
Note: The Secure KVM Mini-Matrix does not have a power switch. It is highly
recommended that the product will be powered continuously.
Note: Keyboard, Mouse and Audio will always be mapped to one of the
projected channels. If it was mapped to a channel which is no longer displayed
it will automatically be switched to the lowest channel # currently projected.
For example, if channel 1 and 2 are projected and mouse and keyboard are
mapped to channel 2. Once the user will choose to project channel 1 instead
of channel 2, mouse and keyboard will automatically be mapped to channel 1.
To change the mapping of the keyboard, mouse and audio between active
channels use the push buttons on the switch.

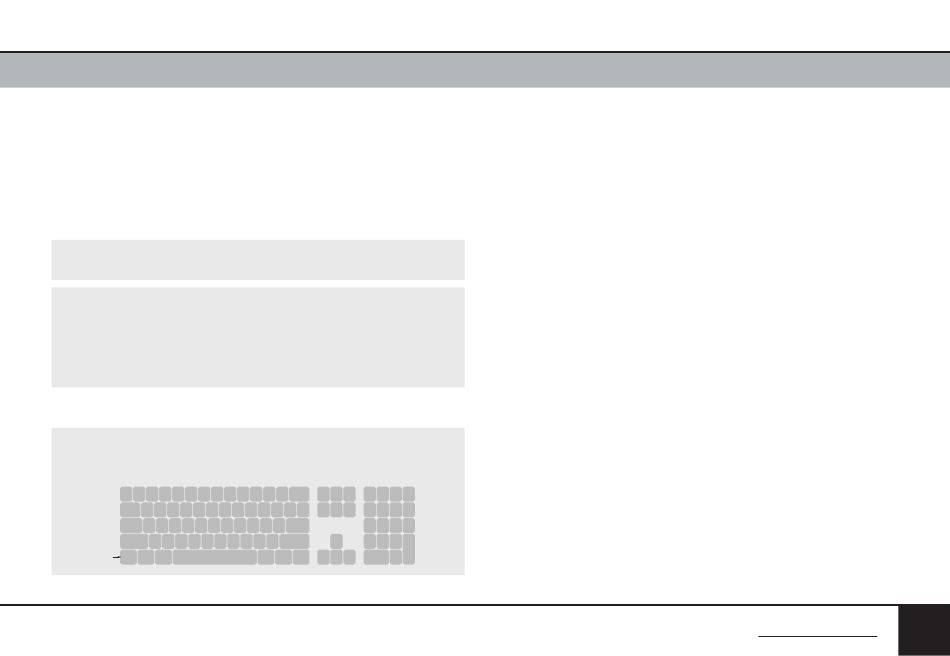

Notes:
1. Keyboard shortcut keys are to be pressed sequentially
2. CTRL key refers to LEFT CTRL key.
@
~ ! # $ % ^ &
*
` 1 2 3 4 5 6 7 8
Q W E R T Y U
Tab
A S D F G H J
Caps
Shift Z X C V B N M
Ctrl Ctrl Alt
Vertiv 4-Port Secure KVM Mini-Matrix
1
_
( ) +
=
Delete Page Num /
*
Insert Home
9 0 - = UP Lock
{ }
|
I O P Page -
7 8 9
Delete End
[ ] \ Down
:
"
K L 4 5 6 +
Enter
;
'
< > ?
Shift é 1 2 3
, .
/
Enter
,
Alt Ctrl 0
ç ê è
2 3
Operating the KVM Switch
1 . Self-Test Procedure:
As product powers-up it performs a self-test procedure. In case of self- test failure
for any reason, including jammed buttons, the product will be Inoperable. Self-
test failure will be indicated by the following abnormal LED behavior:
• All channel-select LEDs will be turned ON and then OFF;
• A specific, predefined LED combination will be turned ON;
• The predefined LED combination will indicate the problem type (jammed
buttons, firmware integrity).
Try to power cycle product. If problem persists please contact your system
administrator or technical support.
Now that product, computers and peripherals are connected and powered up,
it is ready for use.
2 .

Default Channel

After product boots up, blue LEDs stripe will illuminate and the default active
channel will be channel #1. This will be indicated by white color illumination of
push-button #1.
4 5
