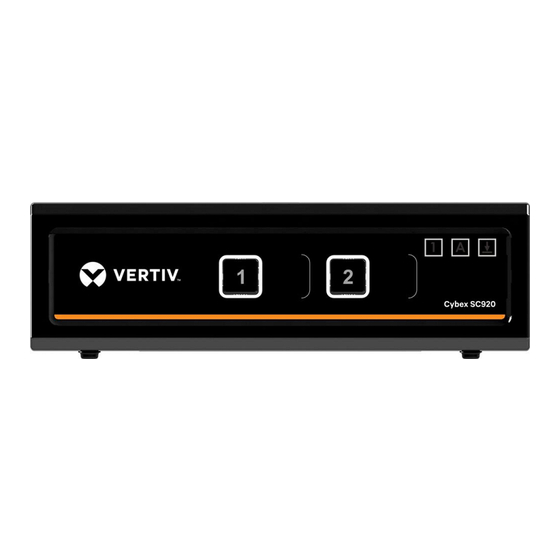

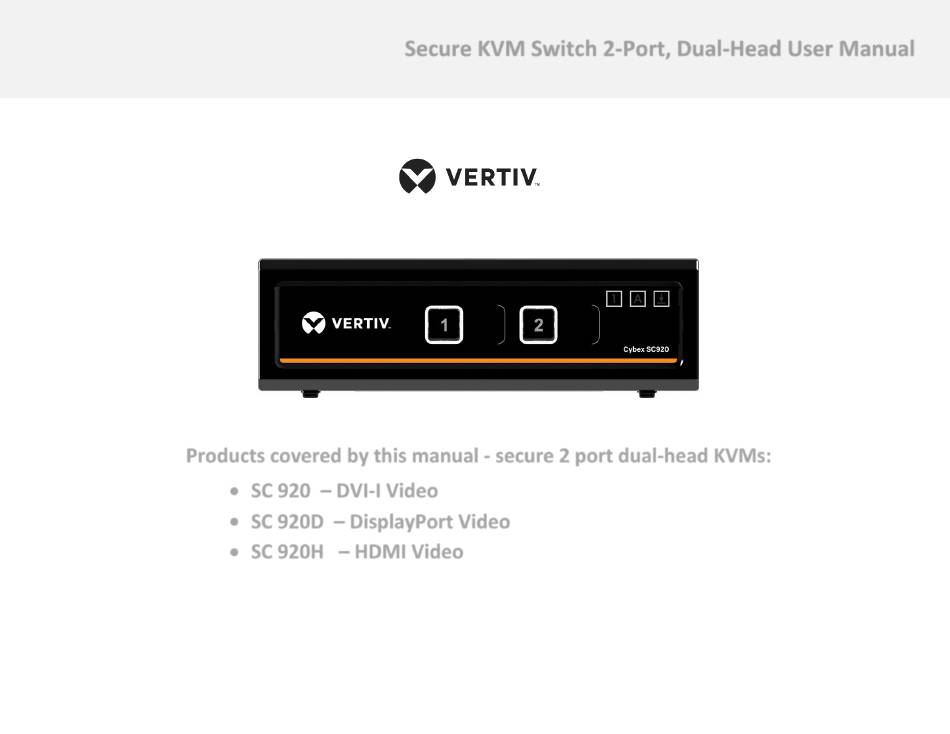

- Page 1 Secure KVM Switch 2-Port, Dual-Head User Manual Section 1 - Introduction Products covered by this manual - secure 2 port dual-head KVMs: • SC 920 – DVI-I Video • SC 920D – DisplayPort Video • SC 920H – HDMI Video Rev: F Doc No.: HDC10365...
-
Page 2: Table Of Contents
Active Anti-Tampering System ............ 10 Product Enclosure Warning Label ..........10 Equipment Requirements ............11 Front Panel Features ..............12 Rear Panel Features – SC 920 ............13 Product Specifications ..............14 Before Installation ............... 15 Installation ..................16 Typical system installation ............17 Operation .................. -
Page 3: Introduction
Section 1 - Introduction Introduction Package Contents Thank you for purchasing this Vertiv Secure product designed for Inside product packaging you will find the following: use in secure defense and intelligence installations. The product • Vertiv Secure Product provides the highest security safeguards and features that meet •... -
Page 4: Overview
Section 2 - Overview Overview • The product should be stored and used only in temperature and Safety Precautions humidity controlled environments as defined in the product’s Please read the following safety precautions carefully before using environmental specifications. the product: •... -
Page 5: Safety Precautions (French)
Section 2 - Overview ou provoque des court circuits de la prise du Safety Precautions (French) secteur. Veuillez lire attentivement les précautions de sécurité suivantes Un liquide a pénétré dans le boîtier de avant d’utiliser le produit: l’appareil. • Avant nettoyage, débranchez l’appareil de L’appareil est exposé... -
Page 6: User Guidance & Precautions
Section 2 - Overview 3. The appropriate usage of peripherals (e.g. keyboard, mouse, User Guidance & Precautions display, authentication device) is described in detail in this Please read the following User Guidance & Precautions carefully User Manual's appropriate sections. Do not connect any before using the product: authentication device with an external power source to 1. - Page 7 Section 2 - Overview c. When connecting a non-qualified display, the video diagnostic LED will flash green and video will not work. d. When connecting a non-qualified USB device, fUSB LED will flash green and USB device will be inoperable. 8.
-
Page 8: Main Features
Section 2 - Overview Product incorporates secure administrator access and log functions Main Features to provide auditable trail for all product security events, including Product is designed, manufactured and delivered in security- battery backup life for anti-tampering and log functions. Non- controlled environments. - Page 9 Section 2 - Overview Main Features (Cont.) Small form factor: Small form factor product occupying minimum desktop space. Video Support • SC920 supports DVI-I displays as well as VGA and HDMI via compatible cables. • SC920D supports DisplayPort1.1 & 1.2 displays. •...
-
Page 10: Tamper Evident Labels
If for any reason one or more tamper-evident label is missing, appears disrupted, or looks different than the example shown here, please call Technical Support and avoid using that product. Vertiv Tamper Evident Label Active Anti-Tampering System Product is equipped with always-on active anti-tampering system. If mechanical intrusion is detected by this system, the Product will be permanently disabled and all LEDs will blink continuously. -
Page 11: Equipment Requirements
The product console USB mouse port is compatible with standard Cables USB mice. It is highly recommended to use Vertiv Cable Kits for product to Notes: ensure optimal security and performance. a. Console USB keyboard and mouse ports are switchable, i.e. -
Page 12: Front Panel Features
Section 2 - Overview Front Panel Features Holographic Tamper Evident Labels Holographic Tamper Evident Labels CAPS SCROLL Lock LED Lock LED Lock LED Computers #1 & #2: • illuminated push-buttons • labels place holders 2-PORT DUAL-HEAD SECURE KVM... -
Page 13: Rear Panel Features - Sc 920
Section 2 - Overview Rear Panel Features – SC 920 Console ports group: Computer interface group: Audio input jack USB Type-B for Audio input jack USB for Keyboard / (3.5mm stereo) Keyboard / Mouse (3.5mm stereo) Mouse DC power supply... -
Page 14: Product Specifications
Enclosure: Steel metal enclosure Power Requirements: DC input 12V / 1.5A maximum 2 x DVI-I video port (SC 920 model) No. of Users Supported: 2 x DisplayPort video port (SC 920D model) No. of Computers Supported: 2 2 x HDMI video port (SC 920H model) No. -
Page 15: Before Installation
Section 2 - Overview Before Installation Unpacking the Product Before opening the product packaging, inspect the packaging Where to locate the Product? condition to assure that product was not damaged during delivery. The enclosure of the product is designed for desktop or under the When opening the package, inspect that the product Tamper Evident table configurations. -
Page 16: Installation
Section 4 - Operation Installation 2. Connecting the Computers 1. Connecting devices to product console • Using USB cables, connect each computer to the USB type B port Product requires connection of all displays; devices and computers in "computer interface ports" area on product. •... -
Page 17: Typical System Installation
Section 4 - Operation Typical system installation 2-PORT DUAL-HEAD SECURE KVM... -
Page 18: Operation
Section 4 - Operation The user can select any other channel by pressing the appropriate Operation front panel push button. The mouse cursor will be positioned at the center of the selected Operating the Product computer display. If computer is connected to multiple displays, the Self-Test Procedure: cursor will be positioned at the center of the primary display. -
Page 19: Troubleshooting Guide
Technical Support at: Check DC power supply connection to make sure product receives power properly. Replace cable if needed. If problem http://www.Vertiv.com persists, contact your system administrator or our technical support. Important: This product is equipped with always-on active anti- tampering system. - Page 20 Section 5 - Troubleshooting Keyboard Mouse Problem: Mouse and keyboard are not working (two channels) Problem: Mouse and keyboard are not working (two channels) Solutions: Solutions: • • Check that computer USB and video cables are not crossed Check that computer USB and video cables are not crossed i.e.
- Page 21 • • Check that displays' diagnostic LED is steady green – if not, Check that cables are original cables supplied by Vertiv. • change displays, change displays' cables or call technical With everything connected, power-cycle the product to reset support.
-
Page 22: Copyright And Legal Notice
Legal Notice Copyright and Legal Notice Vertiv, Vertiv Network Power and the Vertiv Network Power logo are trademarks or service marks of Vertiv Electric Co. Avocent and the Avocent logo are trademarks or service marks of Avocent Corporation. This document may contain confidential...
