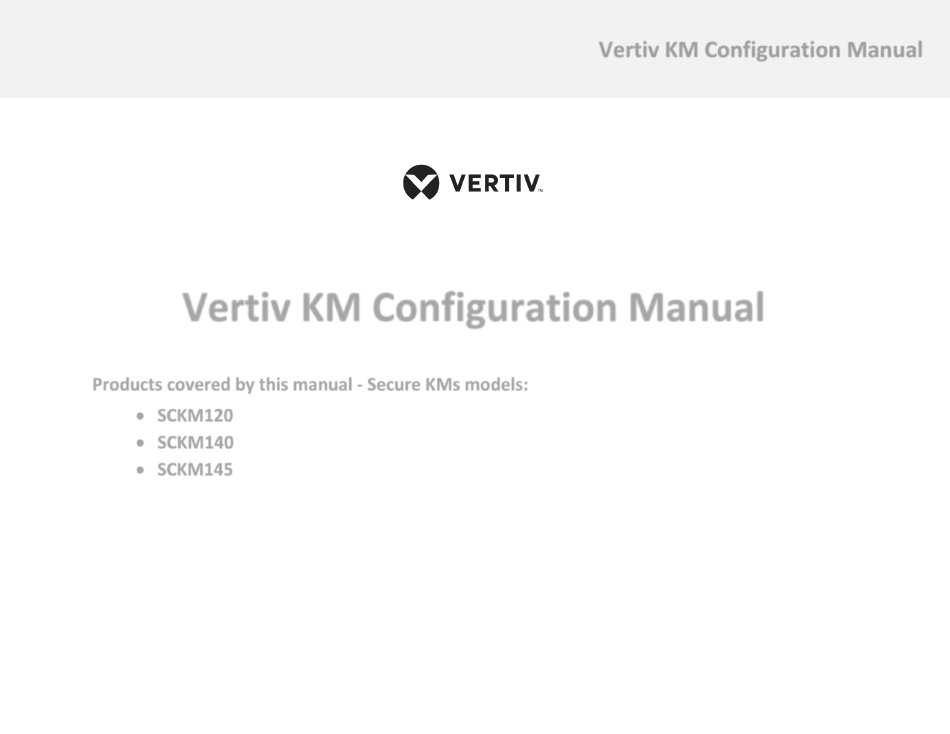

Section 1 - Introduction
Vertiv KM Configuration Manual

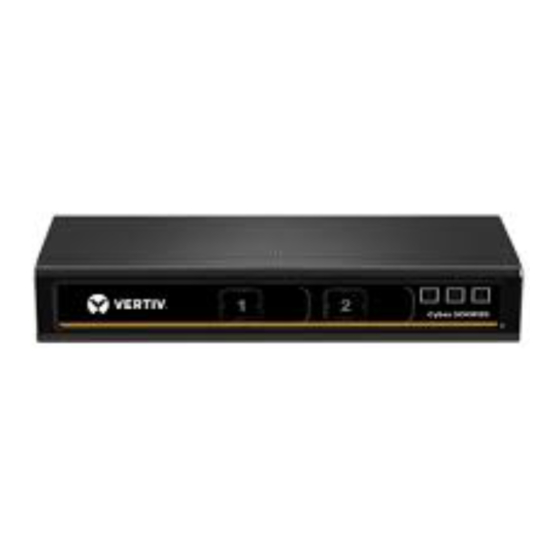

Products covered by this manual - Secure KMs models:
• SCKM120
• SCKM140
• SCKM145
Doc No.: HDC10961
Rev.: C
1
Vertiv KM Configuration Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCKM120 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vertiv SCKM120

  • Page 1 Vertiv KM Configuration Manual Section 1 - Introduction Vertiv KM Configuration Manual Products covered by this manual - Secure KMs models: • SCKM120 • SCKM140 • SCKM145 Doc No.: HDC10961 Rev.: C...
  • Page 2: Table Of Contents

    Copyright and Legal Notice ............23 Table of Contents Introduction ..................3 Intended Audience ................3 Revision ..................3 Safety Precautions ................. 4 Safety Precautions (French) ............5 User Guidance & Precautions ............6 General ..................8 Before You Begin ................8 Step 1 –...
  • Page 3: Introduction

    A – Initial Release, 11 June 2015 B – User Guidance updates, 21 June 2015 C – Changing to VERTIV new branding, 20 May 2019 Important Security Note: If you are aware of potential security vulnerability while...
  • Page 4: Safety Precautions

    Section 1 - Introduction Section 1 - Introduction Safety Precautions Please read the following safety precautions carefully before using • The product should be stored and used only in temperature and the product: humidity controlled environments as defined in the product’s •...
  • Page 5: Safety Precautions (French)

    Section 1 - Introduction Section 1 - Introduction Safety Precautions (French) ou provoque des court circuits de la prise du Veuillez lire attentivement les précautions de sécurité suivantes secteur. avant d’utiliser le produit: Un liquide a pénétré dans le boîtier de •...
  • Page 6: User Guidance & Precautions

    Section 1 - Introduction Section 1 - Introduction 3. The appropriate usage of peripherals (e.g. keyboard, mouse, User Guidance & Precautions display, authentication device) is described in detail in this Please read the following User Guidance & Precautions carefully User Manual's appropriate sections. Do not connect any before using the product: authentication device with an external power source to 1.
  • Page 7 Section 1 - Introduction Section 1 - Introduction c. When connecting a non-qualified display, the video signal and will be inoperable. Power recycling MDR will diagnostic LED will flash green and video will not terminate all mapped sessions. work. d. When connecting a non-qualified USB device, DPP LED will flash green and USB device will be inoperable.
  • Page 8: General

    Section 1 - Introduction Section 1 - Introduction 1.2. Supported Operating Systems: General • Windows XP – All versions The KM Configuration utility is a web based tool that allows system • Windows Vista – All versions administrators to define custom displays' setup and create a custom •...
  • Page 9: Step 1 - Create A New Project

    Section 2 - Configuration • Product Model – The product model can be found on the back sticker of the KM switch. Each KM port can support up Step 1 – Create a new Project to 4 connected displays. • Each KM configuration file is called a “KM Configuration Project”.
  • Page 10: Step 3 - Enter Description

    Section 2 - Configuration Once selecting the number of displays you will be able to enter the size and native resolution for every display. Note: If a display is set to Portrait orientation the Native resolution should be entered accordingly. For example, for a display with a native display resolution of 1680x1050 which is used in Portrait please enter resolution of 1050x1680.
  • Page 11: Multiple Display Setup

    Section 2 - Configuration The following instructions and screen captures are based on Multiple display setup Windows 7 but are almost identical in Windows XP and Windows When creating a setup with multiple displays (dual-head, triple-head, Vista. quad-head etc.) for one or more of the computers there is an Go to: additional need to properly enter the Microsoft virtual desktop “Control Panel\All Control Panel Items\Display\Screen Resolution”.
  • Page 12 Section 2 - Configuration Go back to KM switch web utility and: Enter the details for you main display as requested in the dialog. Figure 5 – Entering multiple displays data Figure 6 – Finding out secondary display V/H coordinates Enter the parameters for the secondary display.
  • Page 13: Step 5 - Place The Displays And Create The Geometry

    Section 2 - Configuration Step 5 – Place the Displays and Create the Geometry Example 2 – Both below configurations creates identical setups in which mouse curser moves from the right of computer 2 display 2 to At this stage the administrator will create the overall displays setup. the left of computer 1 display 1.
  • Page 14 Section 2 - Configuration Example 3 - The setup in figure 10 below is illegal. There is no interface between the two displays hence the curser will not move. It is recommended to use the setup in figure 11 below instead which will give similar positions but will work.
  • Page 15 Section 2 - Configuration Example 4 – The two below setups are identical except for the fact that on the right setup the user chose to prevent the mouse curser from moving from: Computer 2, Display 2 to Computer 1, Display 1. This was done by clicking on the Yellow area between the displays.
  • Page 16: Multi Displays Rules

    Section 2 - Configuration Multi Displays Rules Computers with Multi displays – When one of the computers is configured with multi displays the setup of those displays connected to the same PC must be similar to that configured on the MS setup. Computers with Multi Displays 2 –...
  • Page 17: Required For Uploading Lm Configuration

    Put the KM into administration mode. This is done by getting into terminal mode. Type: Left CTRL, Right CTRL, T and select the KM configuration option from the menu (as described in detail on Vertiv Administrator Guide). • Connect the Special USB Programing cable to the mouse port of the KM.
  • Page 18: Km Loading Utility

    Section 2 - Configuration KM Loading Utility Once the KM is in Administration mode and is properly connected to the PC you can open the KM loading utility and select your configuration file. Note: Verify that the special programming cable is connected to the KM USB Console mouse jack.
  • Page 19: Loading A Configuration File

    Section 2 - Configuration Loading a Configuration File • Click on the “Select a new configuration file” • Browse to your .kmc configuration file • Click on update KM • The utility GUI should look like this: Figure 2 – KM Loading Utility capture – file selected and loaded After loading is complete, restart the KM, connect the mouse back to the mouse port and the new configuration will apply.
  • Page 20: Trouble Shooting And Support

    Section 2 - Configuration Trouble Shooting and Support The loading utility communicates with the KM switch to load the configuration file. The two most common errors when using the loading utility are: • Configuration file incorrectly formatted • No Communication with the KM switch Configuration file incorrectly formatted When loading a wrong configuration file the Loading Utility will report the issue if possible and will direct the user to load another...
  • Page 21: No Communication With Km Switch

    Section 2 - Configuration No Communication with KM switch To avoid this make sure the special programming cable is properly The loading utility is communicating with the KM switch once: connected between: • The KM switch has entered Administrative mode •...
  • Page 22 Important: If the unit’s enclosure appears disrupted or if all LEDs flash continuously, please remove product from service immediately and contact Technical Support at http://www.Vertiv.com Important: This product is equipped with always-on active anti- tampering system. Any attempt to open the product enclosure will activate the anti-tamper triggers and render the unit inoperable and warranty void.
  • Page 23: Copyright And Legal Notice

    Legal COPYRIGHT AND LEGAL NOTICE Copyright and Legal Notice Vertiv, Vertiv Network Power and the Vertiv Network Power logo are trademarks or service marks of Vertiv Electric Co. Avocent and the Avocent logo are trademarks or service marks of Avocent Corporation. This document may contain confidential...
