Vertiv Cybex SCM145 User Manual

Vertiv Cybex SCM145 User Manual

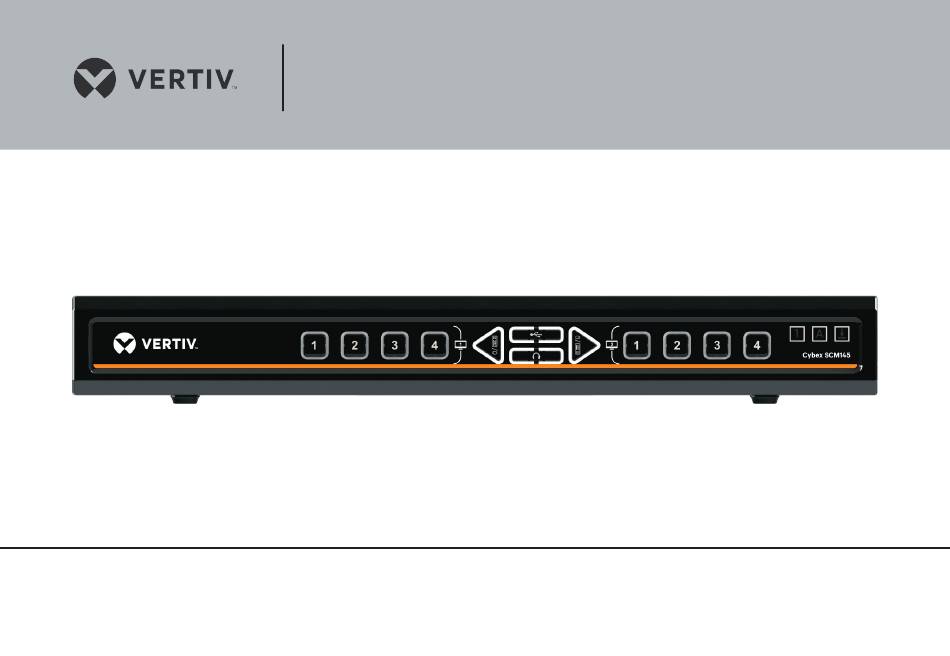

4-port secure kvm mini-matrix

Advertisement

Quick Links

Products covered by this manual:
Cybex SCM145 – Secure Mini-Matrix KVM 4-Port DVI video, w/DPP
Cybex SCM145H – Secure Mini-Matrix KVM 4-Port HDMI video, w/DPP
User Manual
4-Port Secure KVM Mini-Matrix
Document Number HDC10370 Rev. F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cybex SCM145 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vertiv Cybex SCM145

  • Page 1 User Manual 4-Port Secure KVM Mini-Matrix Products covered by this manual: Cybex SCM145 – Secure Mini-Matrix KVM 4-Port DVI video, w/DPP Cybex SCM145H – Secure Mini-Matrix KVM 4-Port HDMI video, w/DPP Document Number HDC10370 Rev. F...
  • Page 2 Features – Cybex SCM145 Rear Panel ........
  • Page 3: Package Contents

    SEC TIONS Table of Contents InTroduCTIon Thank you for purchasing this Vertiv Secure product designed for use in secure Important Security Note: defense and intelligence installations. The product provides the highest security If you are aware of potential security vulnerability while installing or operating safeguards and features that meet today’s IA (information assurance) computing...
  • Page 4: Safety Precautions

    – The product shows obvious signs of breakage or loose internal parts. – In case of external power supply – If power supply overheats, is broken or damaged, or has a damaged cable. Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 5 – En cas d’alimentation externe - L’alimentation de l’appareil surchauffe, est endommagée, cassée ou dégage de la fumée – ou provoque des court circuits de la prise du secteur. Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 6: User Guidance & Precautions

    User Manual’s appropriate this port - it is inoperable and for future use. sections. Do not connect any authentication device with an external power source to product. Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 7 12. If you are aware of any potential security vulnerability while installing or operating product, please remove product from service immediately and contact us in one of the ways listed in this manual. Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 8: Main Features

    The Mini Matrix allows the user to duplicate the output displays making it easy to EDID/MCCS writes. For DisplayPort video, filtration of AUX channel exists project various sources in secure meeting rooms to reject unauthorized transactions. Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 9: Resolutions Supported

    USB device connected to the locked channel. Allows you to share speakers and headphones between computers. Toggle Audio feature Front panel Toggle Audio button enables to leave audio in a specific channel. Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 10: Tamper Evident Labels

    LEDs will blink continuously. If product indicates “tampered state” (all LEDs blinking) – please call Technical Support and avoid using that product . Vertiv Tamper Evident Label Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 11: Equipment Requirements

    Equipment Requirements Cables Notes: It is highly recommended to use Vertiv Cable Kits for product to ensure optimal a. Console USB keyboard and mouse ports are switchable, i.e. you can security and performance. connect keyboard to mouse port and vice versa. However, for optimal One Cable Kit is required per connected computer.
  • Page 12 The product console USB mouse port is compatible with standard USB mice. The Switch console video port is compatible with the following types of displays: • Cybex SCM145 supports DVI-I displays as well as VGA and HDMI via Notes: compatible cables.
  • Page 13 SEC TIONS Table of Contents oVerVIew Features – Cybex SCM145/Cybex SCM145H Front Panel 7 8 9 No. 1-4 Computer No. 1 display Push-Button and LED Num Lock LED Keyboard and Mouse toggle and LED Caps Lock LED DPP Freeze toggle and LED...
  • Page 14 SEC TIONS Table of Contents oVerVIew Features – Cybex SCM145 Rear Panel NOTICE! This RCU port has not been certified by Common Criteria. 8830-16646 Rev. A00 DPP console jack PS/2 Mouse Jack User Display #2 output DVI-I video jack DPP LED...
  • Page 15 Audio Output Jack USB Jack - Computer #4 No. 4 computer display HDMI video input jack USB Console Keyboard and Mouse Jack Power Input Jack PS/2 Keyboard Jack Restore to default Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 16: Product Specifications

    32° to 104° F (0° to 40° C) and VGA via compatible cables) Displays Supported Cybex SCM145H: HDMI DIsplays Storage Temp -4° to 140° F (-20° to 60° C) Cybex SCM145 supports up to HD resolutions Humidity 0-80% RH, non-condensing (1920 X 1200 pixels). Resolution Support Warranty...
  • Page 17: Before Installation

    RF equipment or machines that create electrical noise (e.g., vacuum cleaners). b. That include telecommunication equipment; c. That include frame grabber video cards d. That include special audio processing cards. Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 18 • If the computer uses a smart card reader/USB device, connect the smart device having a keyboard/mouse functions. card reader/USB device to the console DPP port (optional, model pending). Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 19 2. The USB cable must be connected directly to a free USB port on the reboot. If the problem persists, please refer to the Troubleshooting section in computer, with no USB hubs or other devices in between. this User Manual. Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 20 The USB device will be detected only if it is fully compliant with USB 1.1 or USB 2.0 standard and is included in the list of recognized USB devices defined by the administrator when configuring DPP functionality. Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 21 SEC TIONS Table of Contents InSTallaTIon Typical system installation diagram Cybex SCM145/Cybex SCM145H Primary Display Secondary Display Computers Audio Mouse Keyboard Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 22: Operation

    Page Insert Home Lock Q W E Page Delete Down “ Caps Enter ‘ < > Shift B N M Shift é Enter Ctrl Ctrl Ctrl ç ê è Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 23 • In case user switches to a channel that is not connected to a USB device, the previous USB connection will be terminated and no new connection will be established. Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 24 Audio is locked to at the moment. This means that switching channels would leave Audio active on current channel. Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 25 Once enabled it is essential that the displays are positioned in a correct way. The following presets exist on the Mini-matrix: CTRL, CTRL, F11, f (default) CTRL, CTRL, F11, f Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 26: Troubleshooting Guide

    . tamper triggers and render the unit inoperable and warranty void. • The product may have been tampered with. Please remove product from service immediately and contact Technical Support. Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 27 • Try a different keyboard. • Do not use a wireless keyboard. Both keyboard and mouse are not working (one channel) • Use computer Device Manager Utility to see product and solve problem. Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 28 • Check that video cable is properly secured at both sides. • Check that cables are original cables supplied by Vertiv. • Check at the displays’ on-screen menu that sources selected match the • With everything connected, power-cycle the product to reset the video.
  • Page 29 • Check that device is working properly when connected directly to computer. • Check that there is a USB cable connected between the computer and the relevant DPP input port on product. Vertiv 4-Port Secure KVM Mini-Matrix BACK TO TABLE OF CONTENTS >...
  • Page 30: Copyright And Legal Notice

    Table of Contents InforMaTIon COPYRIGHT AND LEGAL NOTICE Vertiv, Vertiv Network Power and the Vertiv Network Power logo are trademarks or service marks of Vertiv Electric Co. Avocent and the Avocent logo are trademarks or service marks of Avocent Corporation. This document may contain confidential and/or proprietary...
  • Page 31 © 2015 All rights reserved.

This manual is also suitable for:

Cybex scm145h
