CYBEX™ SC SERIES SECURE SWITCHES
SCMV200DPH MULTIVIEWER
Quick Installation Guide
Before installing your secure
desktop MultiViewer switch,
ensure the tamper-evident labels
are all intact.
1. Connecting local
peripherals
Ensure all computers and
displays are turned off.
Plug the display cables into the
CONSOLE primary (1) and
secondary (2) display ports on
the back of the switch. The
switch uses a combination
DisplayPort (DP) and HDMI
connector to enable either
video format to be used as
input or output.
If applicable, plug the USB
keyboard and mouse cables
and speaker or headphone
cable into the appropriate
CONSOLE ports on the back of
the switch.
NOTE: For SCMV245DPH and
SCMV285DPH models, do not
connect a microphone,
including a headset with an
integrated microphone, to the
switch's audio output port
NOTE: For security reasons,
the switches do not support
wireless devices.
2. Connecting a Dedicated
Peripheral Port (DPP)
device (if applicable)
Connect a USB device, such as
a smart card reader, to the blue
USB Type-A CONSOLE port on
the back of the switch. The
device must be compliant with
USB 1.1 or 2.0 standards and
included in the adminstrator-
defined list of recognized
devices.

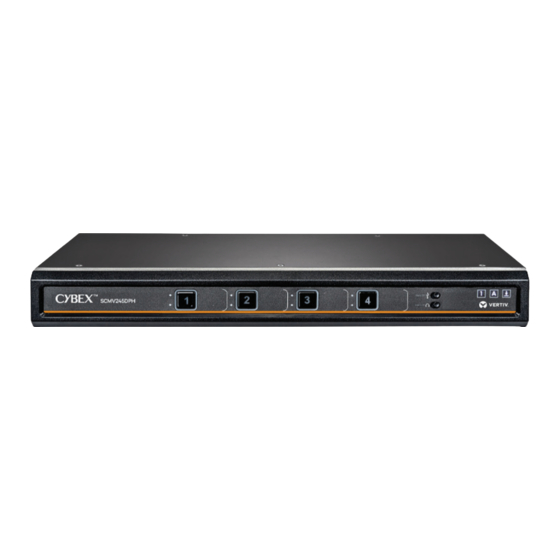

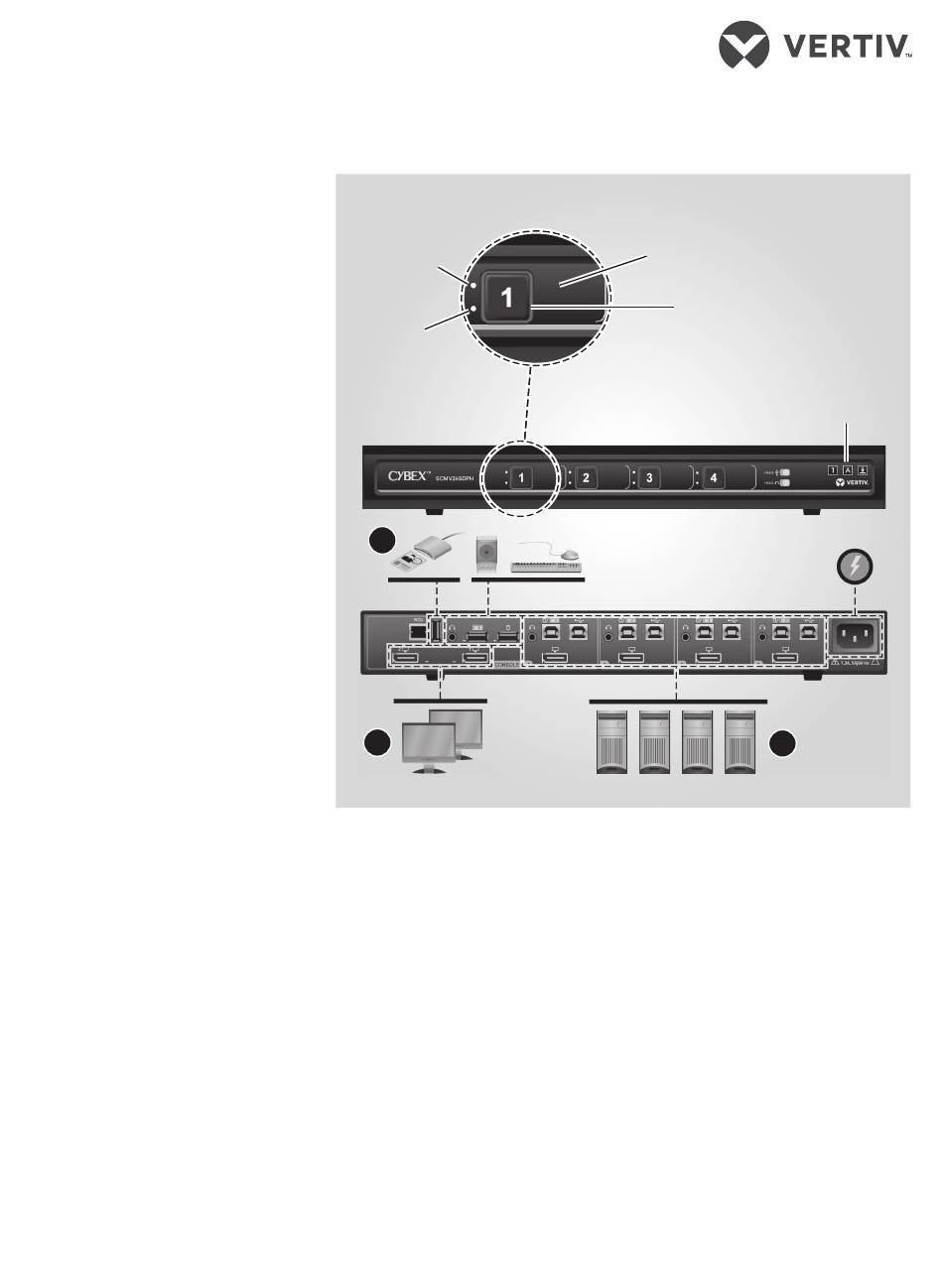

Cybex
SCMV245DPH KVM Switch
TM
DPP Channel
Indicator
Audio Channel
Indicator
2
1
Channel Label
Selected Channel Indicator
Vertiv Patented Keyboard Lock Indicators
3
1
590-2307-501B
