2.1 First Start-Up
1. Make sure that the latest version of the TMCL-IDE is installed. TMCL-IDE can be downloaded from
www.analog.com
2. Open TMCL-IDE and connect the Landungsbruecke with the attached MAX22216-EVAL by USB to the
computer. For Windows® 8 and higher, no driver is needed. For Windows 7, TMCL-IDE installs the
driver automatically.
3. Verify that the Landungsbruecke is using the latest firmware version. The firmware version is shown
in the connected device tree. The newest firmware can be downloaded from
www.trinamic.com/support/eval-kits/details/landungsbruecke/.
4. TMCL-IDE needs space to display all important information and to provide a good overview. There-
fore, arrange the main window as needed. Using full-screen mode is recommended. For evaluation
boards, it is essential to have access to the registers. Therefore, open up the register browser (left
side). For a better view, click the top right on the normal icon to get a maximized register browser
window.
5. TMCL-IDE includes a dialog box for diagnostic tasks. The dialog box provides an overview of the
connected motion controller and driver chips. A window pops up immediately after connecting the
Landungsbruecke the first time. The Board Assignment tab shows the actual status of the connec-
tions. The Settings tab allows the user to choose basic settings or to reset the module to the factory
default settings.
Windows is a registered trademark of Microsoft, Corp.
TMCL-IDE.

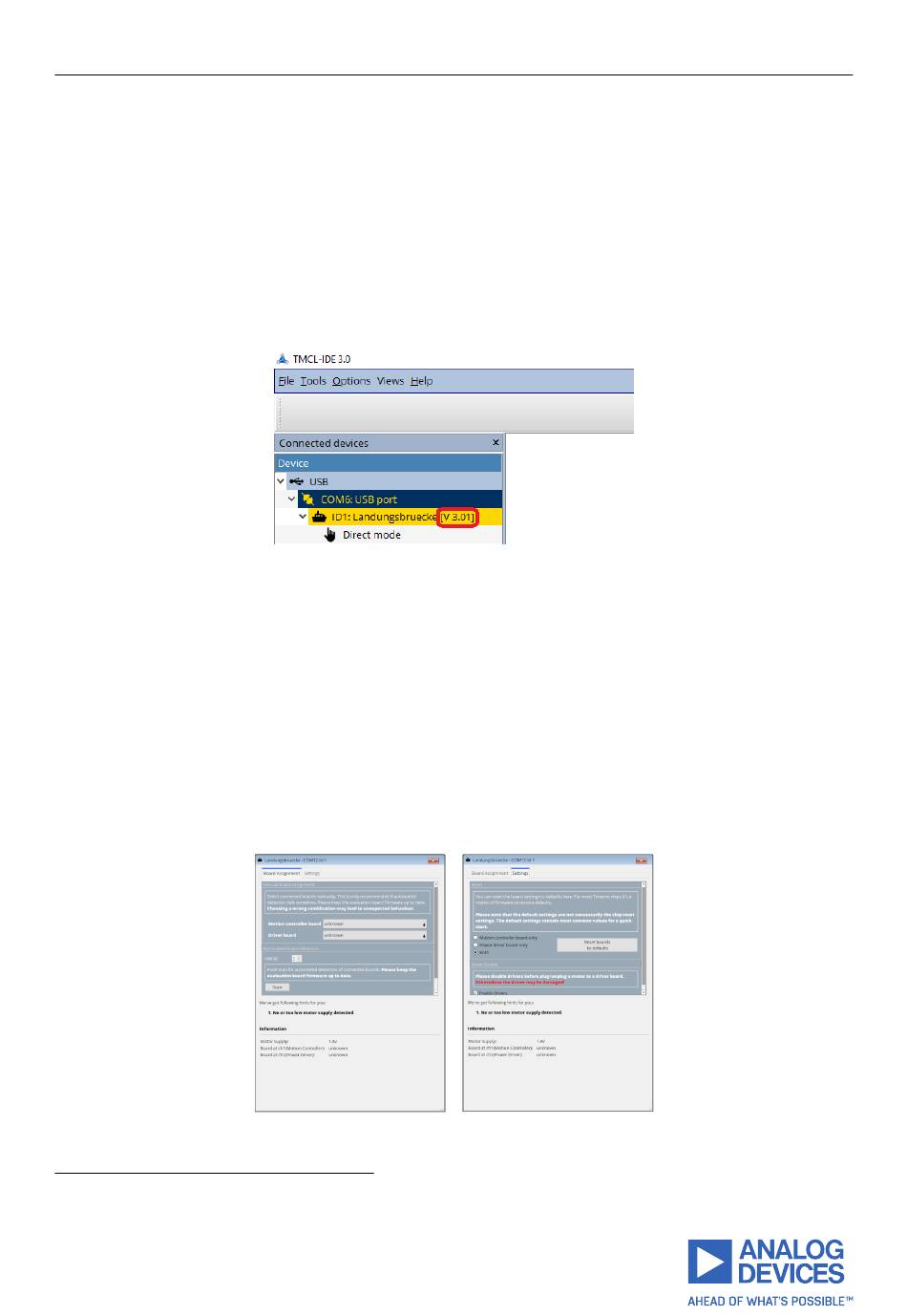

Figure 2: Firmware Version
Figure 3: Landungsbruecke Dialog Box
