MAX22216-EVAL Evaluation Board • 319-101029, Rev 1: 03/24

4.6 Rapid Fire Tool

To turn on or off a specific channel repetitvely, open the Rapid Fire tool by clicking the appropriate entry in
the tool tree. This tool controls the on and off time for the selected channel. The Rapid Fire tool requires
a working actuation within the

4.7 Linear Positioning Tool

The Linear Positioning tool is intended to use with proportional valves/solenoids. To control the DC_H
with a selected value, a minimum and maximum value can be set. Activate the coil so the slider selects
the value between minimum and maximum.
Solenoid Sequencer.

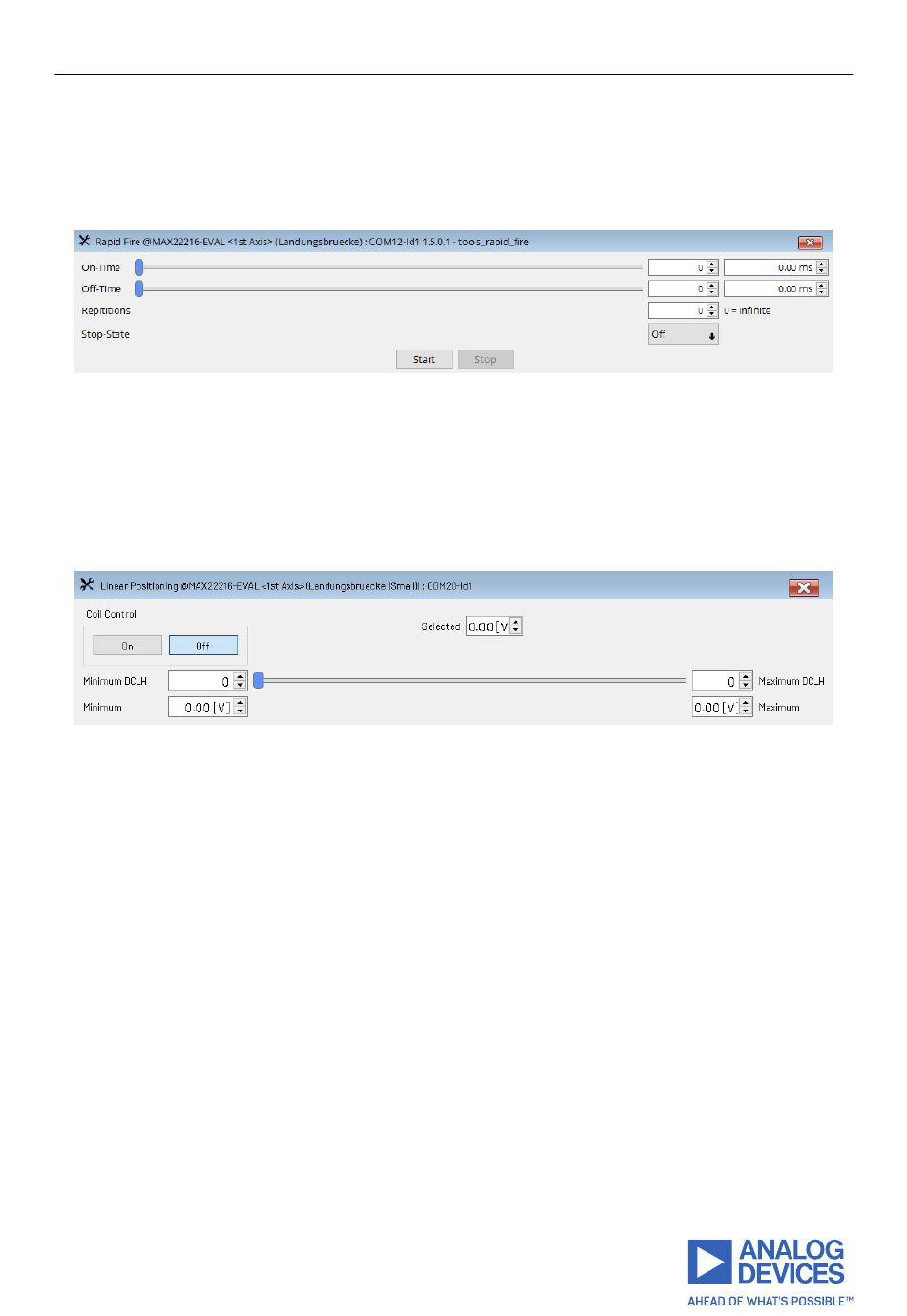

Figure 13: MAX22216 On/Off Slider Control for One Channel
Figure 14: MAX22216 Value Slider for One Channel
14/17
