MAX22216-EVAL Evaluation Board • 319-101029, Rev 1: 03/24

4.8 Parameter and Register Scope

The MAX22216-EVAL is capable of using the Parameter & Register Scope. To collect the data, the Lan-

dungsbruecke buffers the desired values in real time to send them through the slower USB connection

to the connected IDE. Depending on the selected sample count and number of measurement channels,

this process can take some time.

To get started, select the parameter/register for the measurement and press Start. In the Condition drop-

down, select the trigger mode e.g. Immediately or Rising edge. The Value number input deﬁnes the value

for the trigger, which is applied on the selected measurement Channel.

NOTE

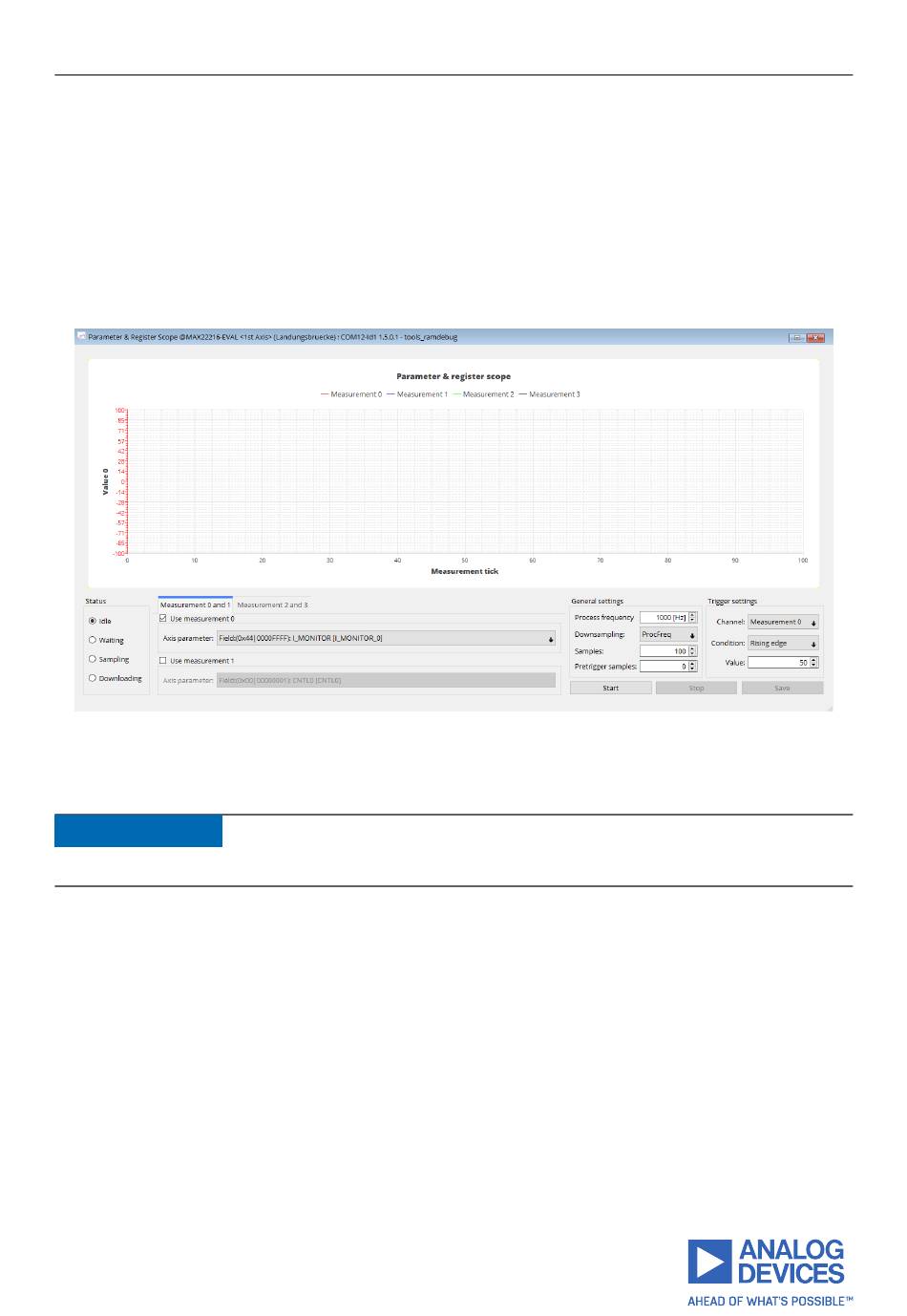

Figure 15: View of the Scope for the MAX22216

Make sure the newest

To improve the performance of this tool, close all unnecessary graphs and tools

within the IDE.

Landungsbruecke

ﬁrmware is used for this feature.

15/17
